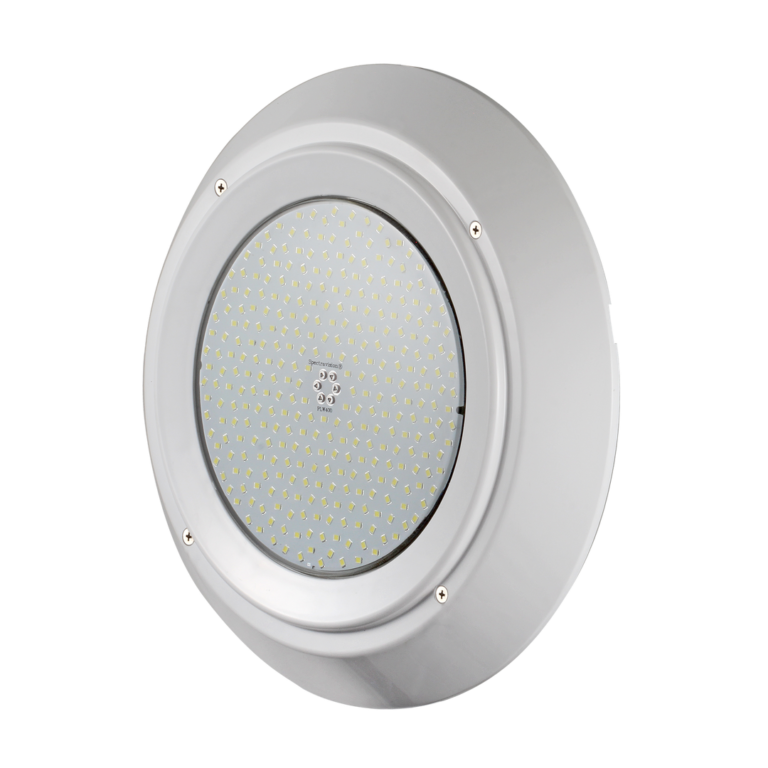

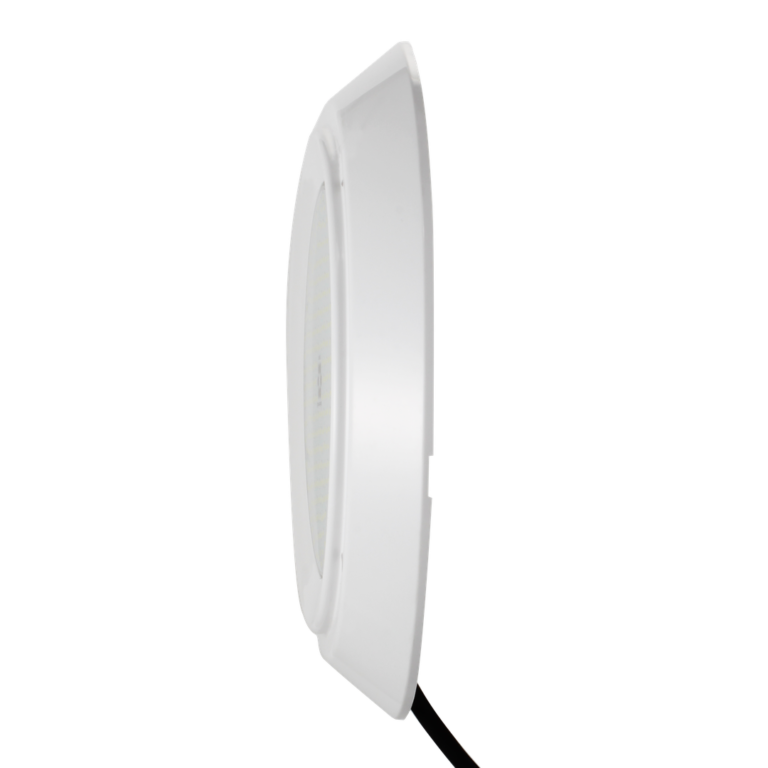

Ø290mm-Wall-mounting LED pool light

MODEL: WPLD-1R
MANUFACTURER:
Clear

Wall mounting swimming pool light equipped with a resin-filled LED bulb of 90, 324 or 531 LED units that prevent water from infiltrating the light.

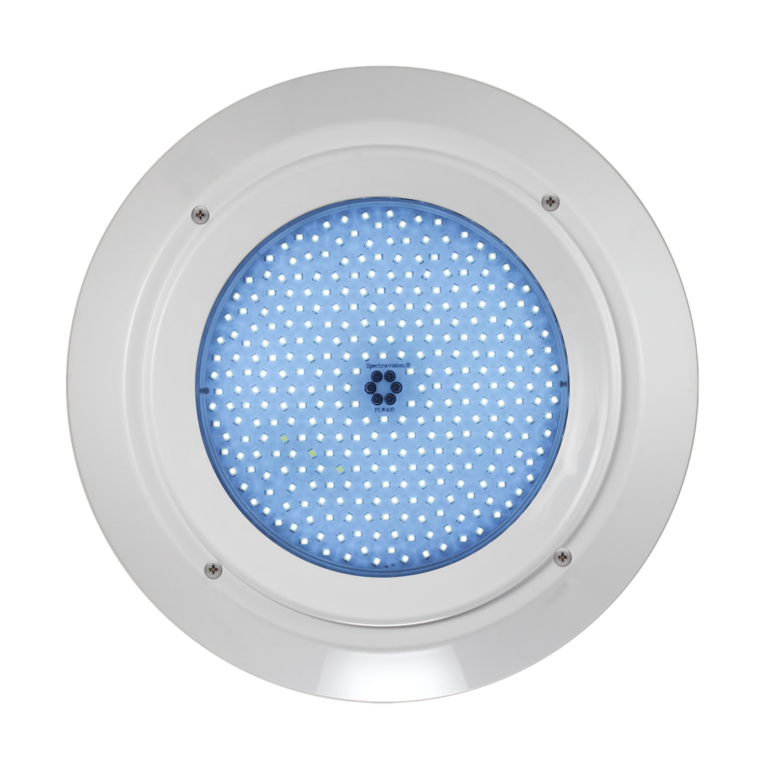

It is available in white or RGB colour in 16 illumination programme modes. Its face has an overall diameter of 290mm and a faceplate thickness of 40mm. Ideal for concrete pools. White ABS plastic that is highly durable and comes with all mounting equipment to ensure an easy and quick installation and maintenance.

Perfect for already made concrete swimming pools.

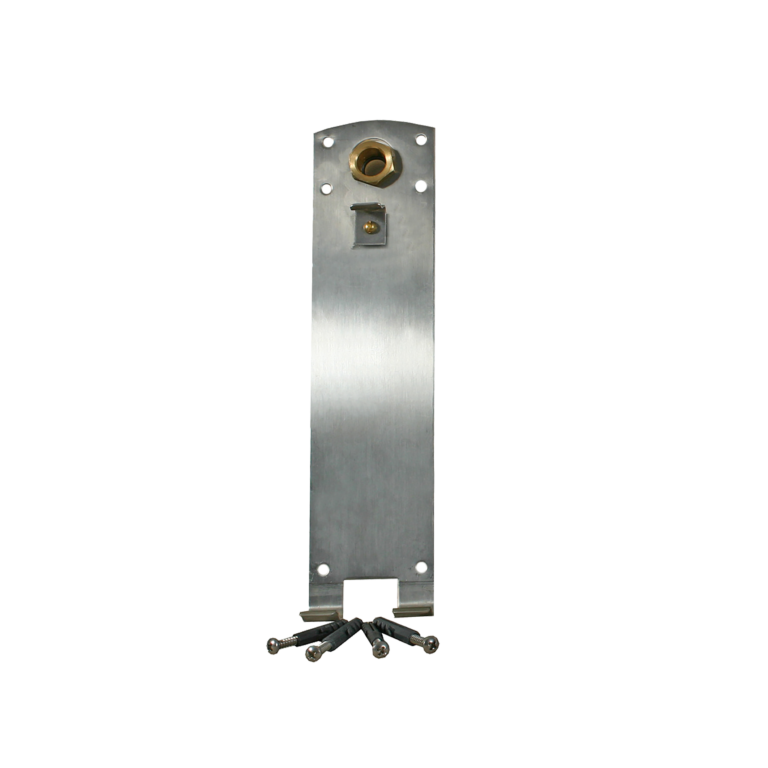

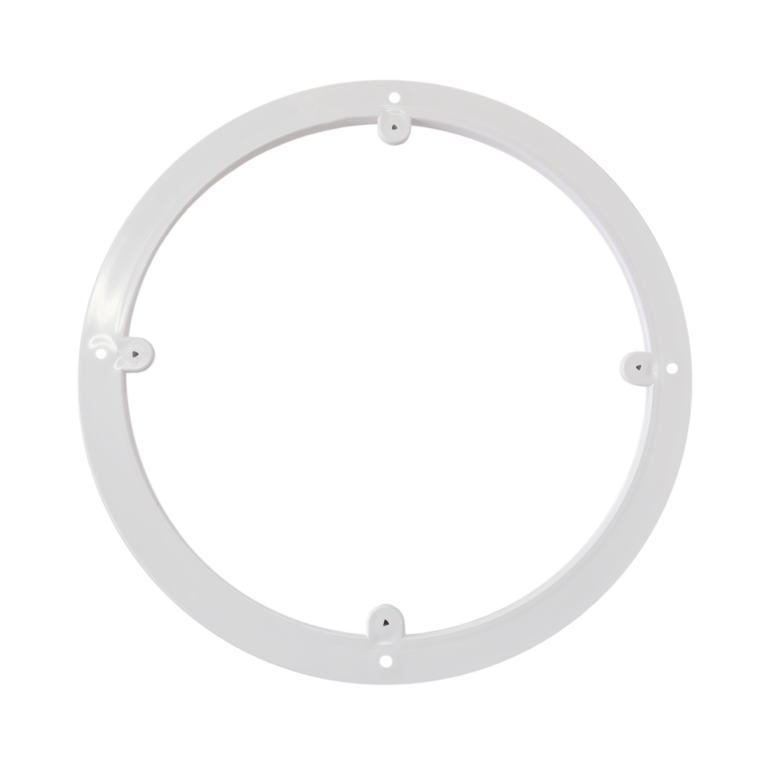

The bulb can be adjusted by a plastic round fixing ring or a stainless steel rectangular fixing plate.

Extra Equipment is required to switch the lighting program to RGB lights:
– RCP-1500: Control panel with remote control.

Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

    Specifications
    • Material: white ABS plastic.
    • IP rating: IP68 up to 2m depth.
    • Installation: wall mounting.
    • Light colour: cool white or RGB.
    • 16 illumination programme modes.
    • 4m cable H07RN-F, cable size 2x1mm².
    • 1m of flexible conduit hose.
    • Faceplate thickness: 40mm.

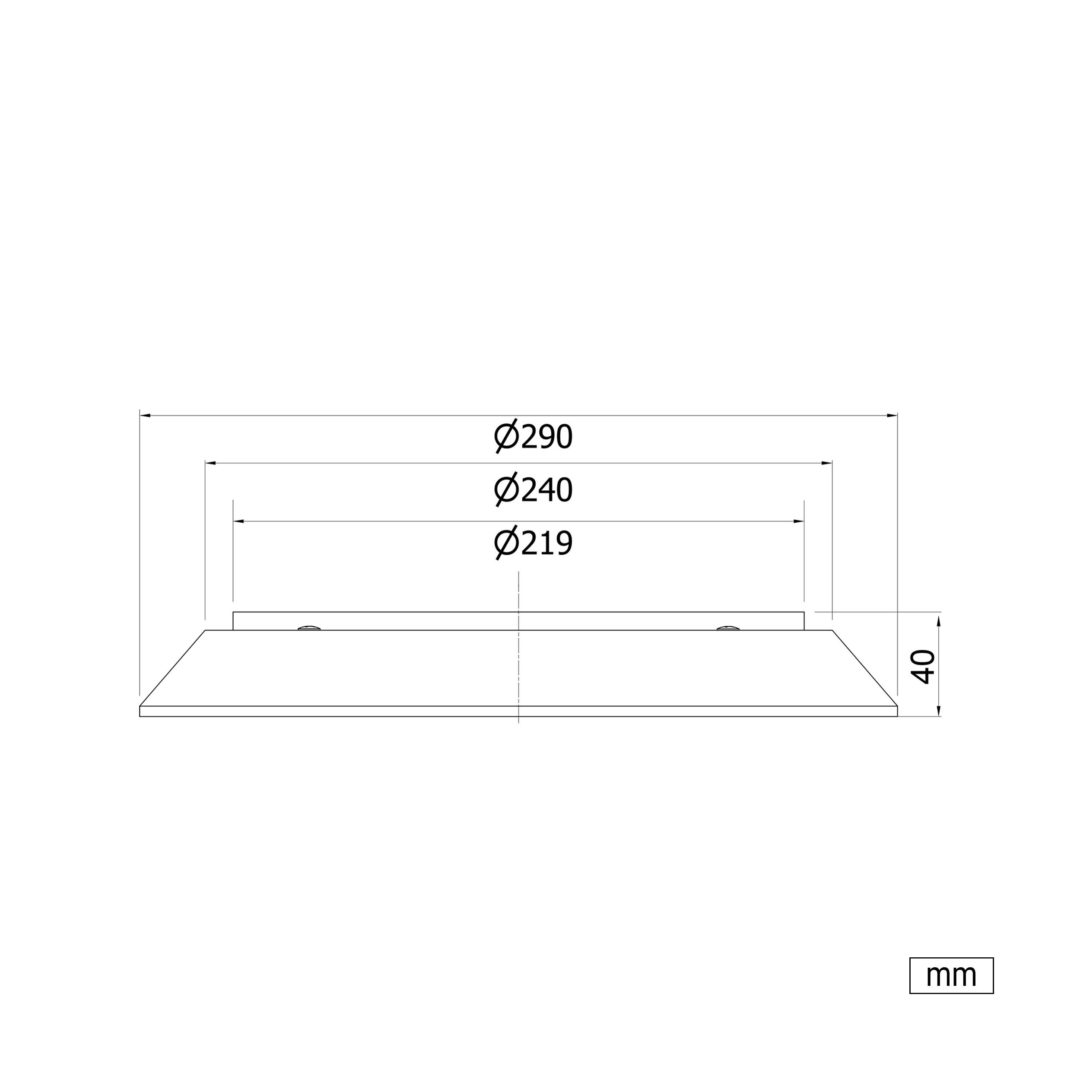

    • Dimensions: Ø 290x40mm.
    • Underwater installation.
    • Installation position: wall.
    • Type of pool: concrete.
    • UV protection & chemical resistance.
    • Easy installation & service.

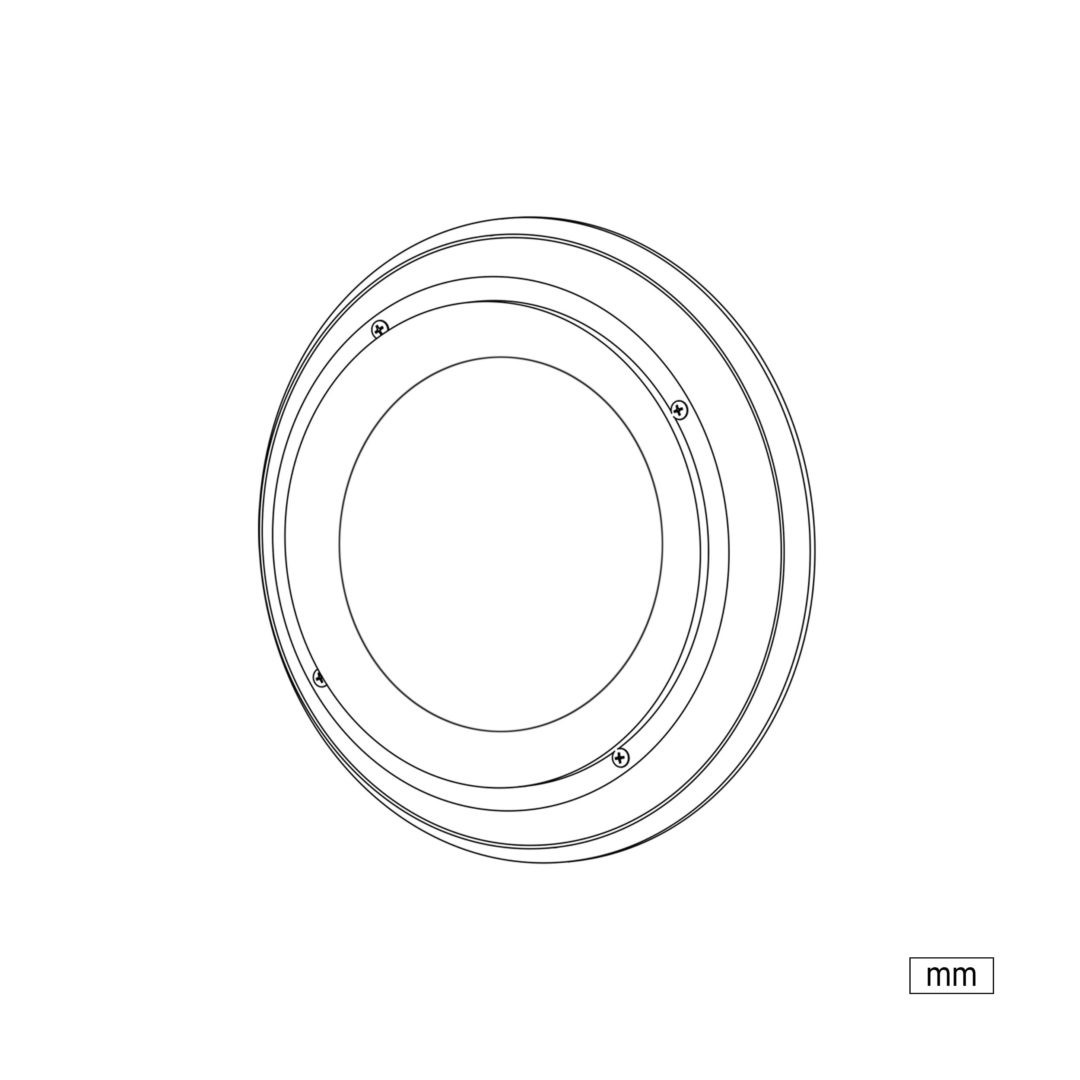

    Dimensions & Performances
