16781

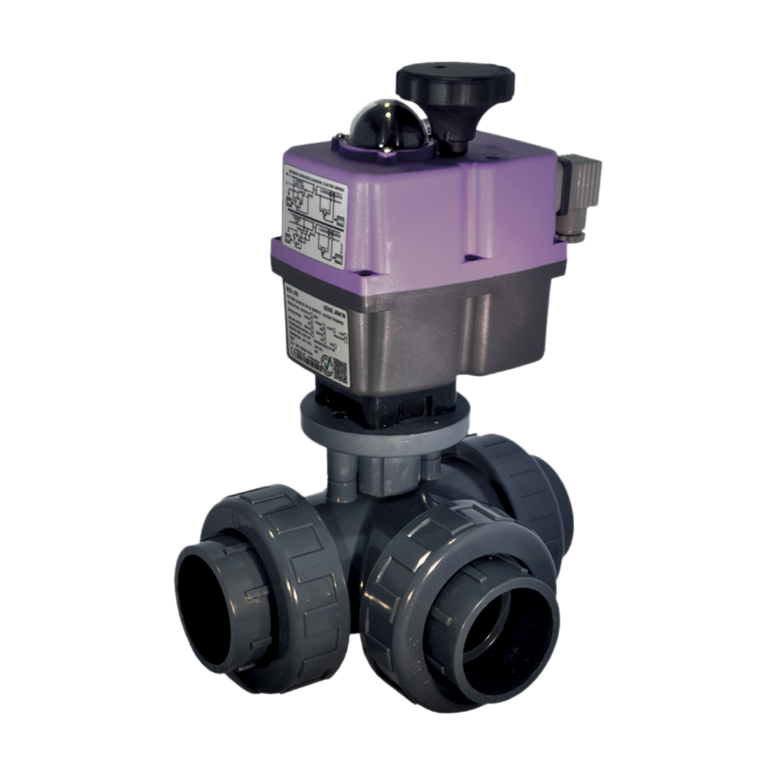

3-way ball valve with electric actuator

MODEL: 2513
MANUFACTURER:
Clear

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

  • Cement joint fittings:
    From 16mm to 140mm = PN16.
    From 160mm to 315mm = PN10.
  • Threaded fittings:
    All sizes PN10.

Assembly:

  • The use of PTFE film is recommended for threaded fittings.
  • The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

    Dimensions & Performances
    CodeØDNSeatsO−rings
    25130161615PTFEEPDM
    25130202015PTFEEPDM
    25130252520PTFEEPDM
    25130323225PTFEEPDM
    25130404032PTFEEPDM
    25130505040PTFEEPDM
    25130636350PTFEEPDM
