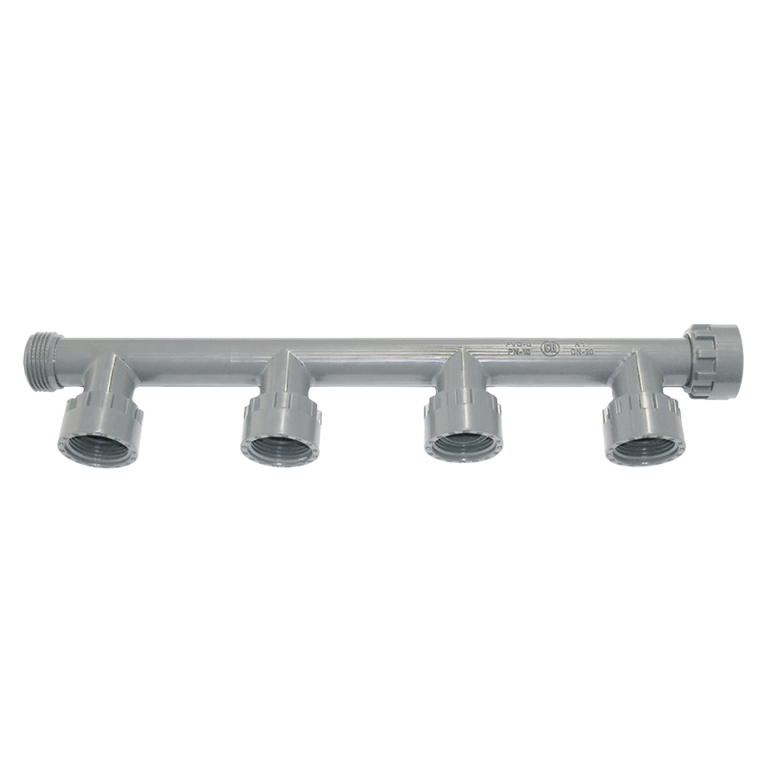

4 outlet manifold 1” Female/Male
MODEL:
7210010
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

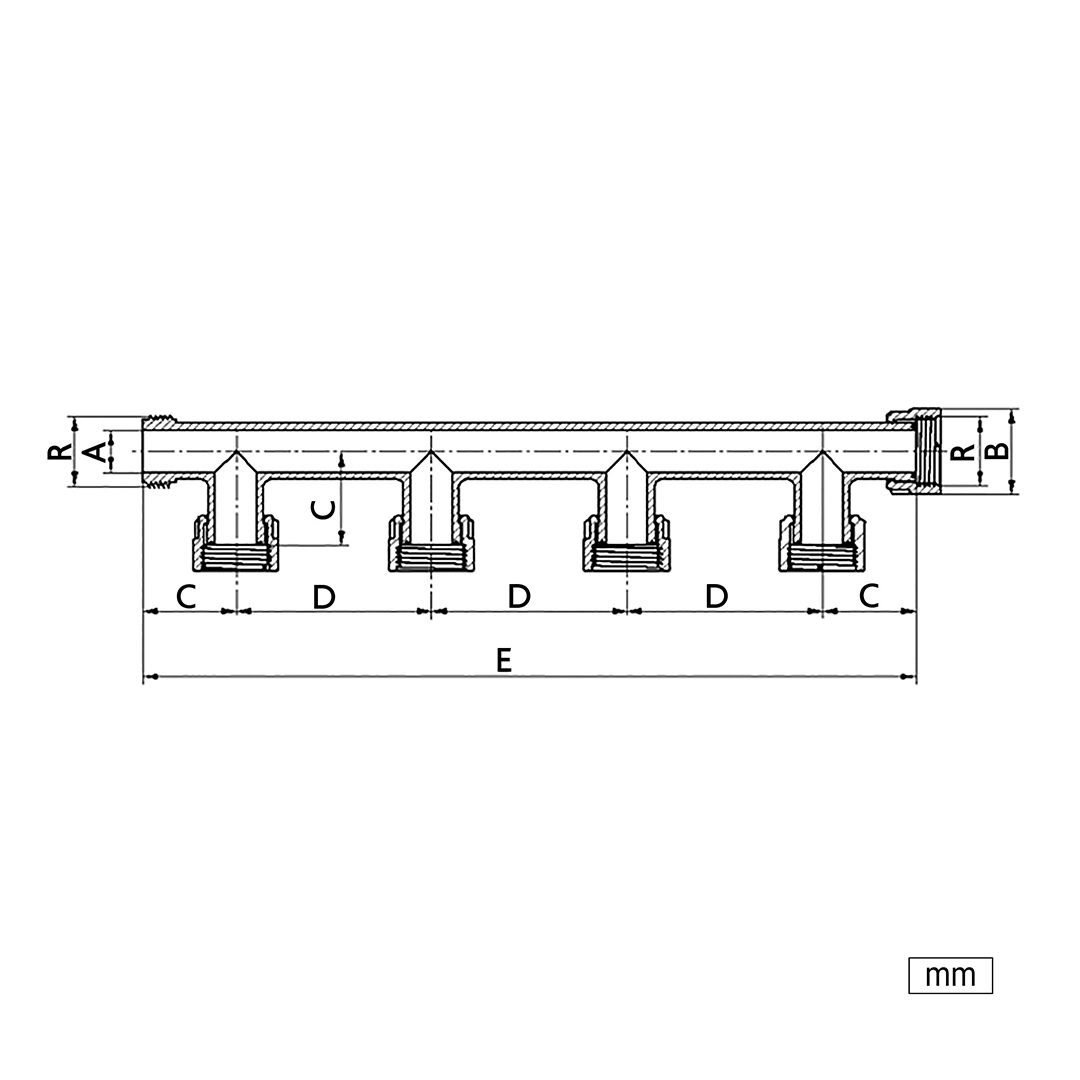

Dimensions & Performances
ZOOM IN
| Code | A | B | C | D | Ε | R | Ø |
|---|---|---|---|---|---|---|---|
| 7210010 | 20 | 41,5 | 45,5 | 95 | 376 | 1” | 1”− G |
Catalogue
