Aerating jet
MODEL:
AJ
MANUFACTURER:

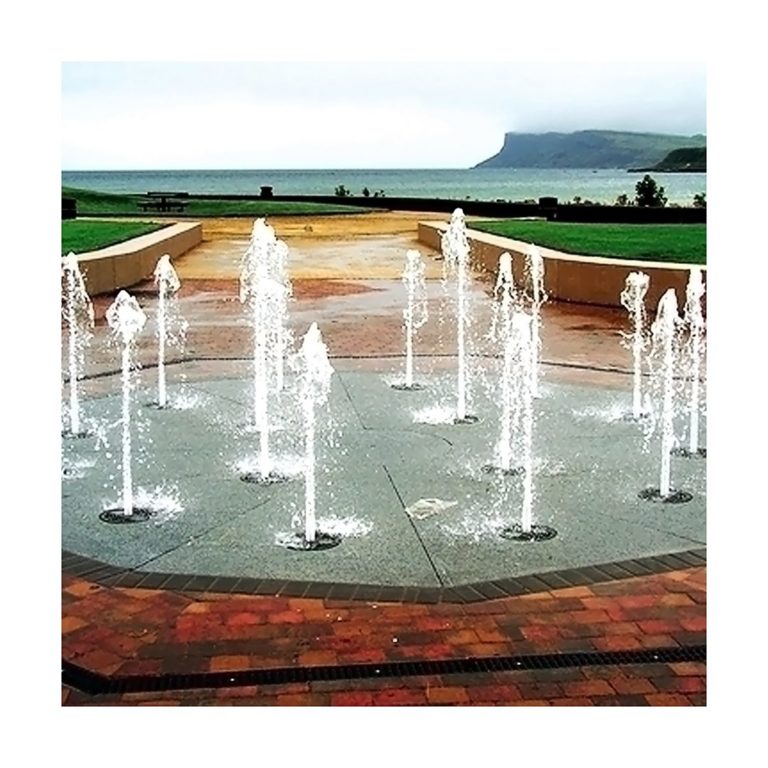

Immerging, straight and narrow, air-mixed water streams make an extended top which seems like an opening flower and then fall back down on the water’s surface.
Ideal for all sizes of lakes and fountains.
Visibility: ★★★★★
Sound level: ★★★★☆
Wind resistance: ★★★☆☆
Splash: ★★★☆☆
Dependent on water level position: Yes
Specifications

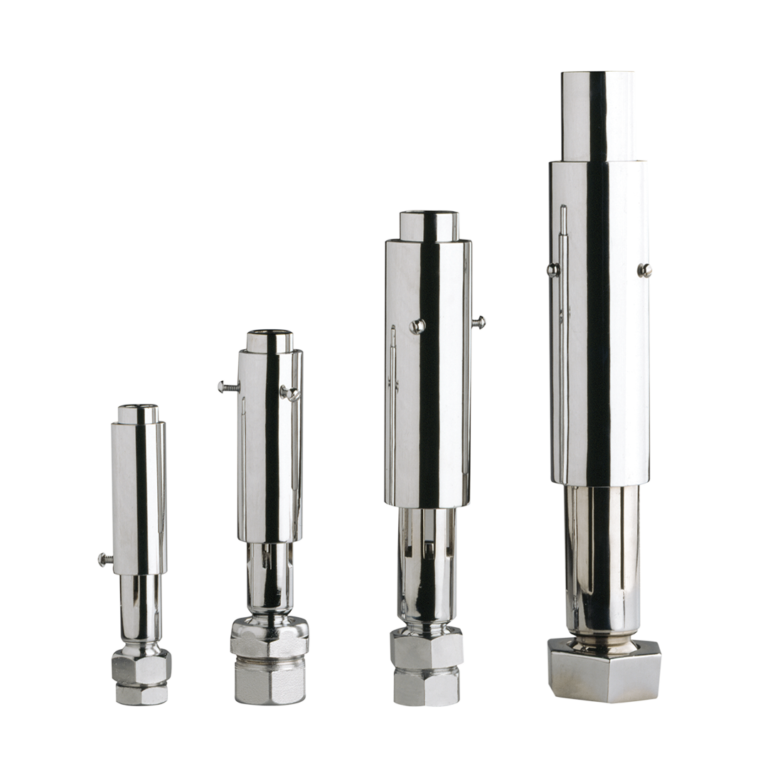

- Cast bronze and brass chrome plated construction.
- Fine protection pump screening that forbids foreign materials to enter.
Options:
- Cast bronze without chrome plating.
- ΝPT thread.

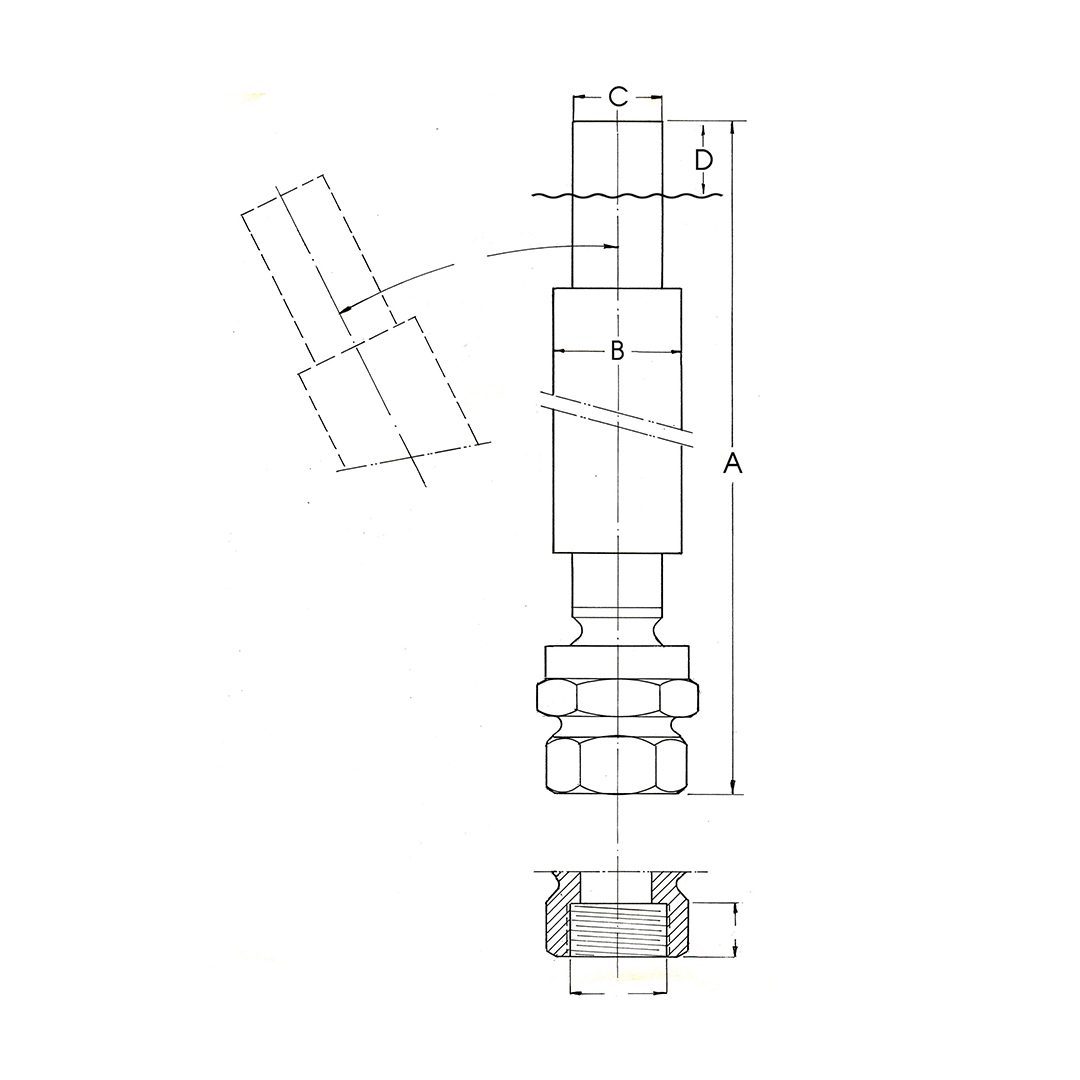

Dimensions & Performances
ZOOM IN
| Code | Inlet BSP | Α (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|---|
| AJ-50 | 1/2″ | 160 | 28 | 20 | 20 |
| AJ-75 | 3/4″ | 190 | 32 | 22 | 22 |
| AJ-100 | 1″ | 260 | 40 | 28 | 28 |
| AJ-125 | 1¼” | 300 | 42 | 30 | 30 |
| AJ-150 | 1½” | 360 | 54 | 42 | 42 |
| AJ-200 | 2″ | 430 | 54 | 42 | 42 |
