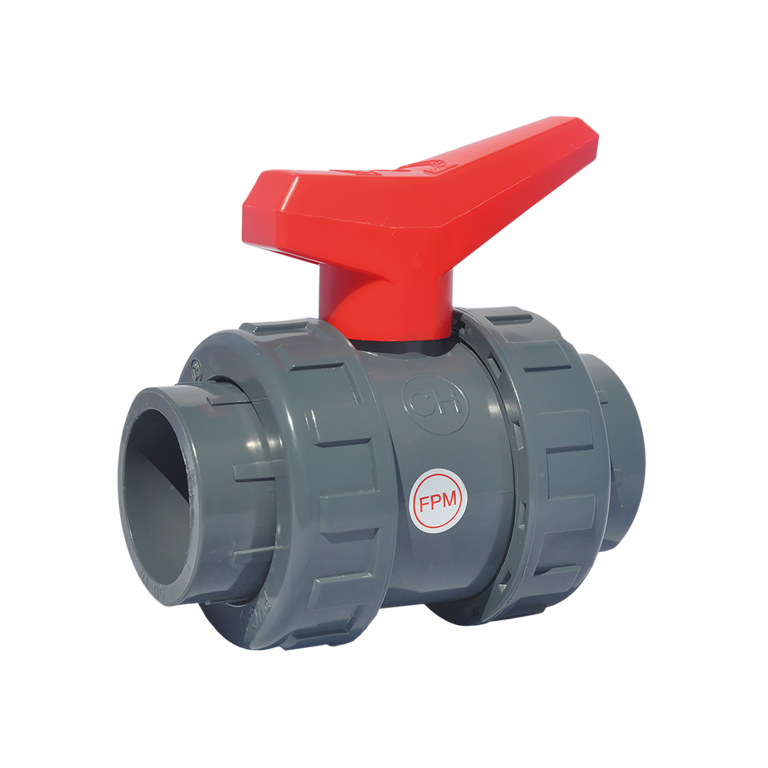

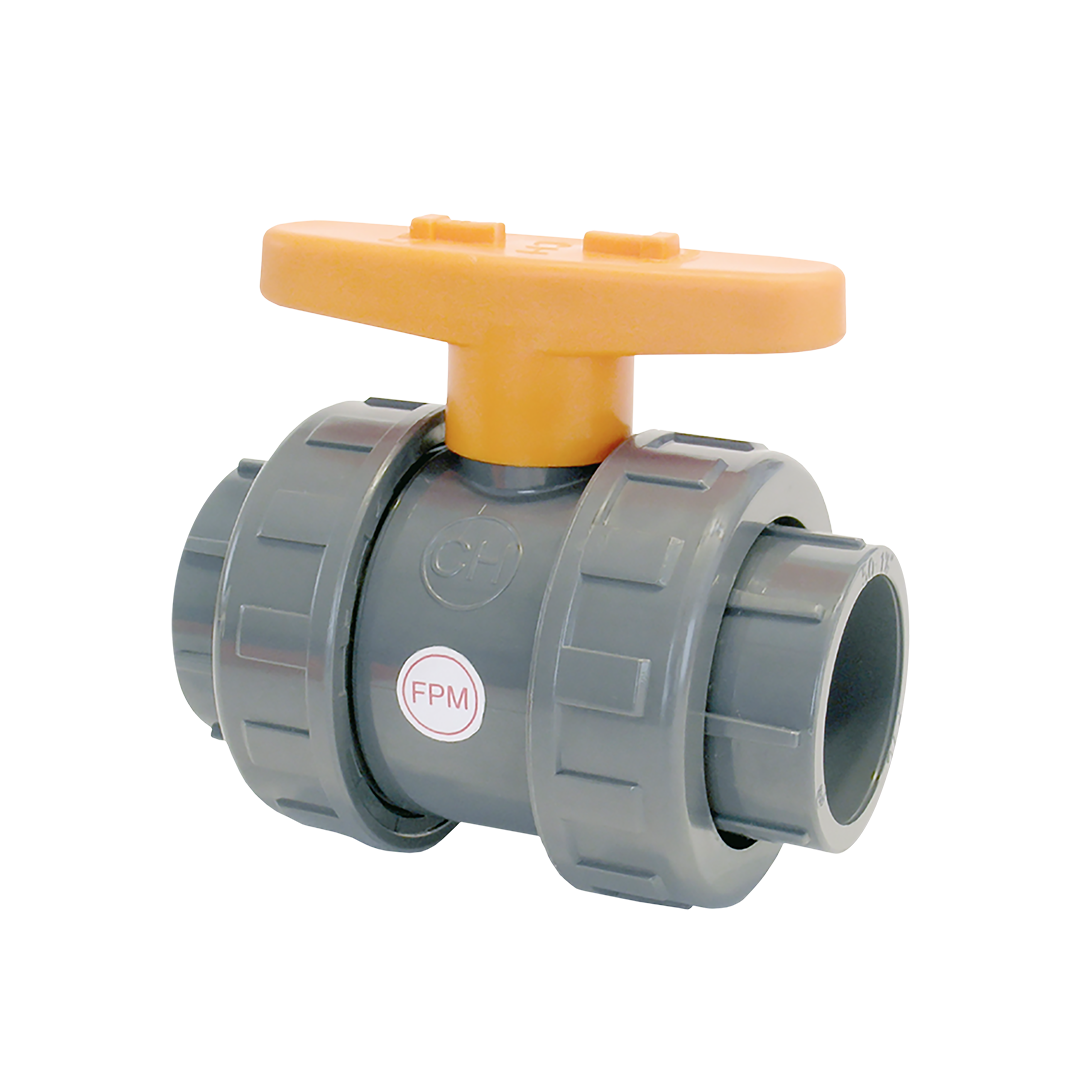

Ball valve FPM, type EXPORT, PN16
MODEL:
1116
MANUFACTURER:
Seats: P.T.F.E. | O−rings: FPM
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

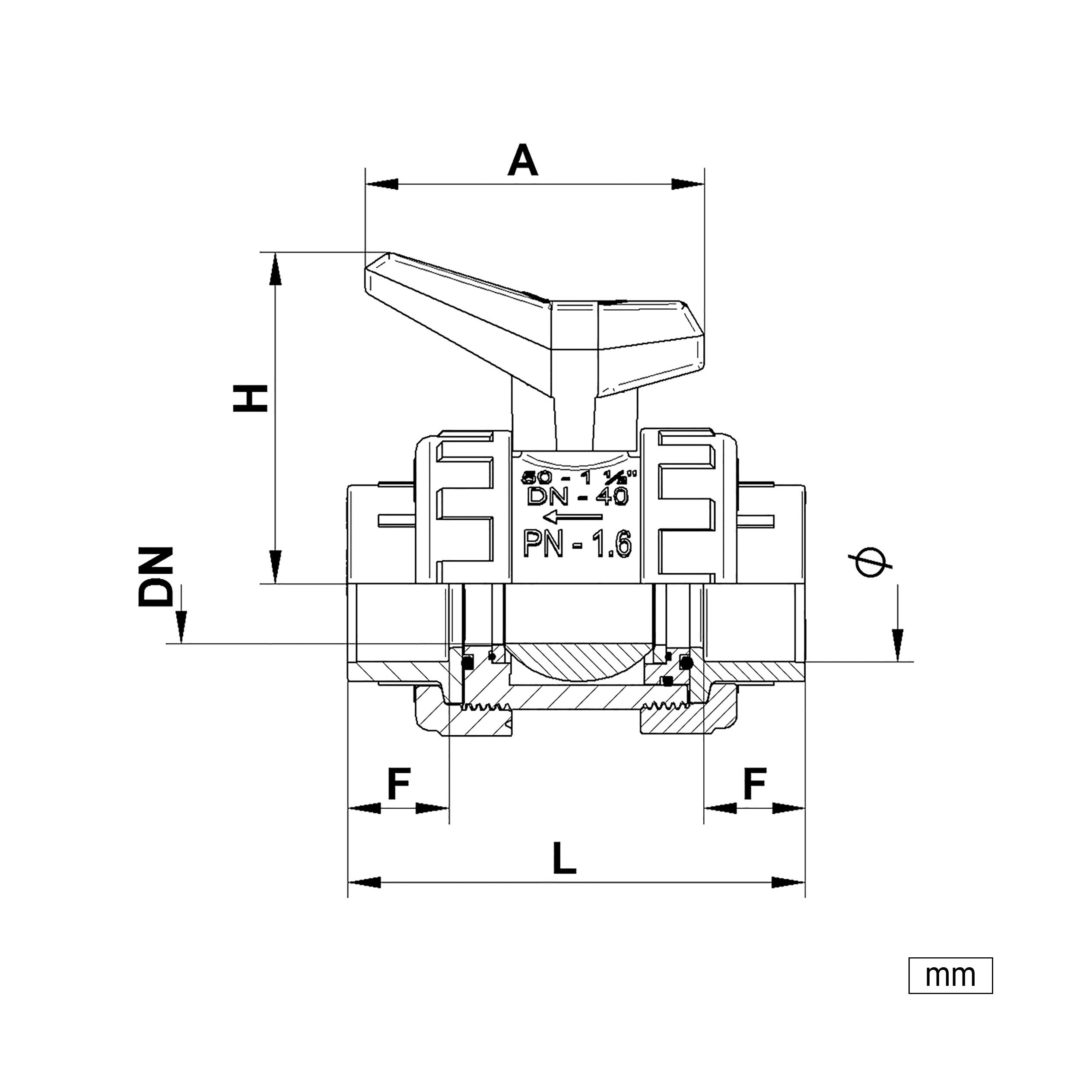

Dimensions & Performances
ZOOM IN
| Code | DN | A | F | H | L | Ø |
|---|---|---|---|---|---|---|
| 1116016 | 10 | 61 | 14 | 55 | 95 | 16 |
| 1116020 | 15 | 61 | 16 | 55 | 95 | 20 |
| 1116025 | 20 | 61 | 19 | 58 | 102 | 25 |
| 1116032 | 25 | 82 | 22 | 77 | 115 | 32 |
| 1116040 | 32 | 82 | 26 | 81 | 130 | 40 |
| 1116050 | 40 | 110 | 31 | 107 | 144 | 50 |
| 1116063 | 50 | 110 | 38 | 113 | 166 | 63 |
| 1116075 (PN10) | 65 | 152 | 44 | 152 | 224 | 75 |
| 1116090 (PN10) | 65 | 152 | 51 | 152 | 232 | 90 |
| 1116091 (PN10) | 80 | 152 | 51 | 163 | 246 | 90 |
| 1116110 (PN10) | 100 | 275 | 61 | 168 | 307 | 110 |
| 1116125 (PN10) | 100 | 275 | 61 | 168 | 308 | 125 |
