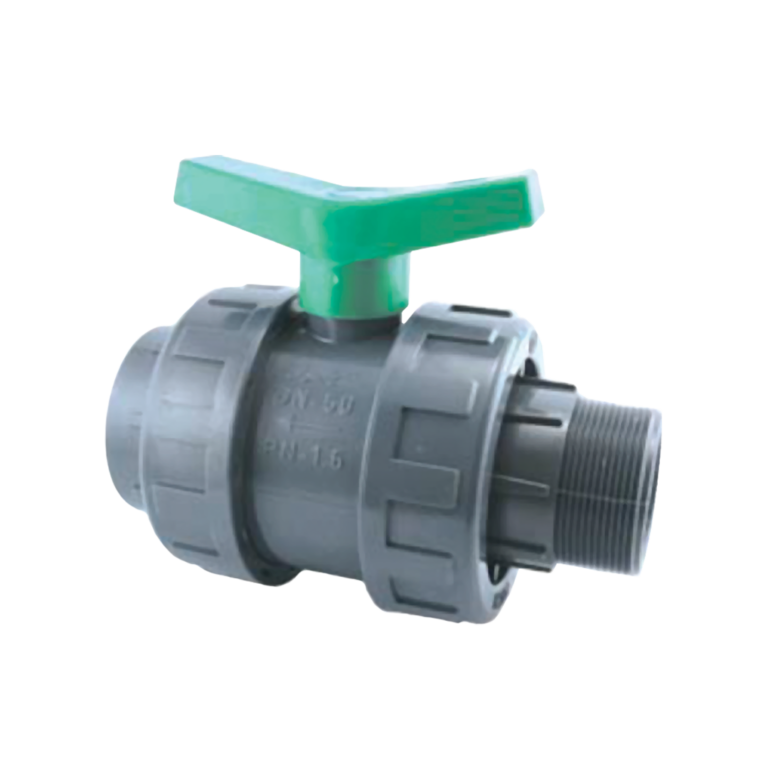

Ball valve threaded with male-female BSP, type PE, PN10
MODEL:
1023
MANUFACTURER:
Seats: HDPE | O−rings: EPDM
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

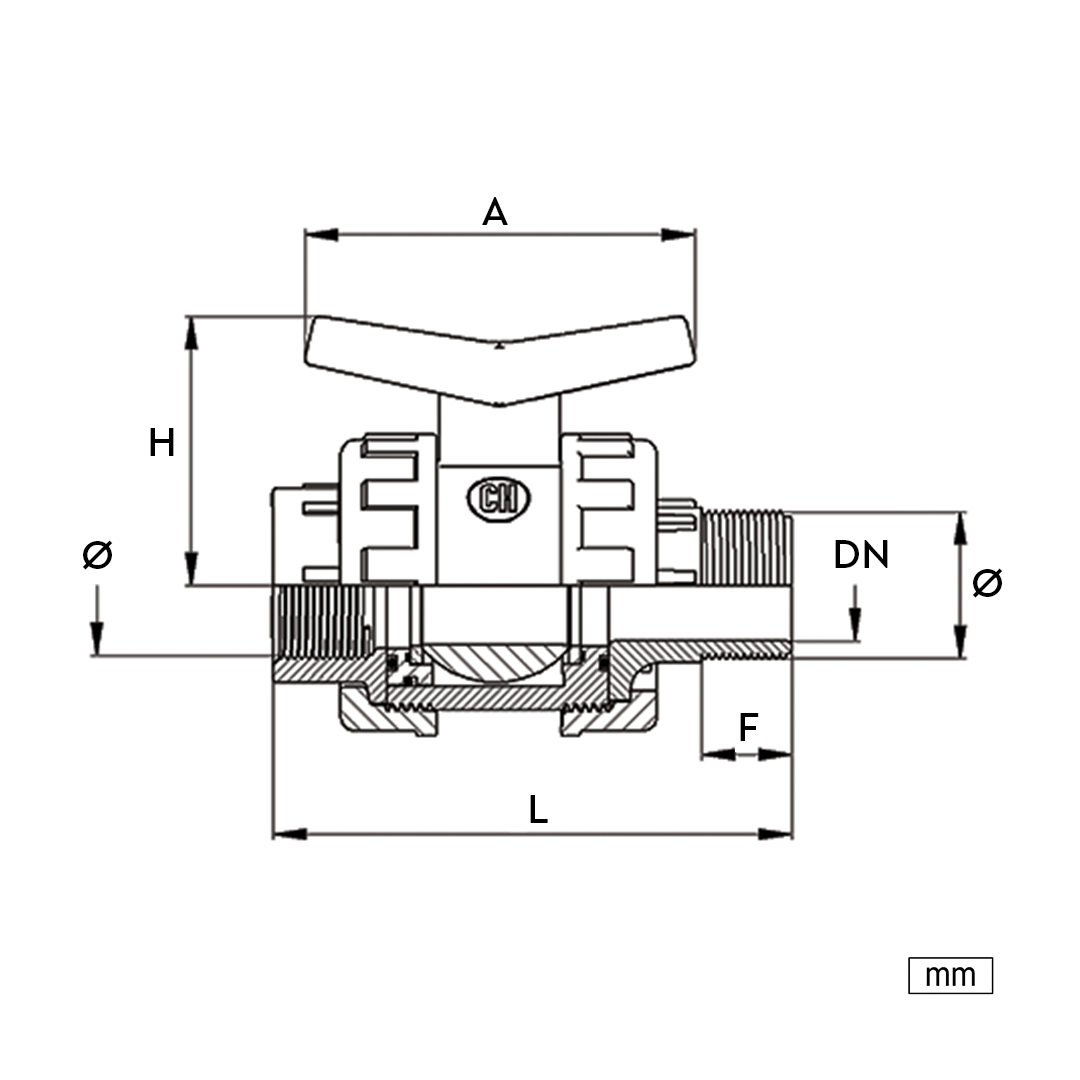

Dimensions & Performances
ZOOM IN
| Code | DN | A | F | H | L | Ø |
|---|---|---|---|---|---|---|
| 1023050 | 36 | 128 | 28 | 95 | 170 | 1½” |
| 1023063 | 46 | 128 | 28 | 103 | 192 | 2” |
