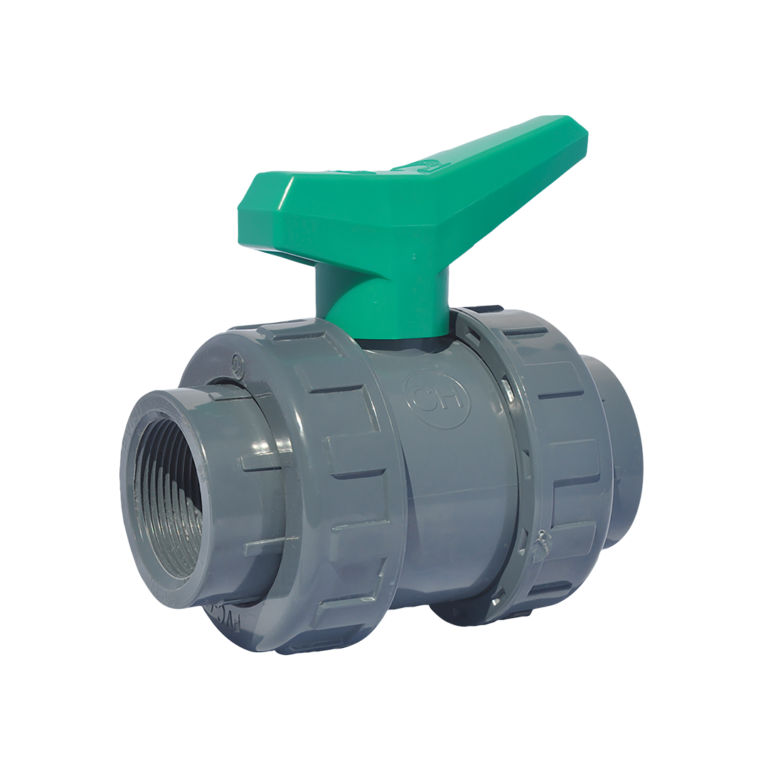

Ball valve with BSP female thread, type PE, PN10
MODEL:
1020
MANUFACTURER:
Seats: HDPE | O−rings: EPDM
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Dimensions & Performances
ZOOM IN

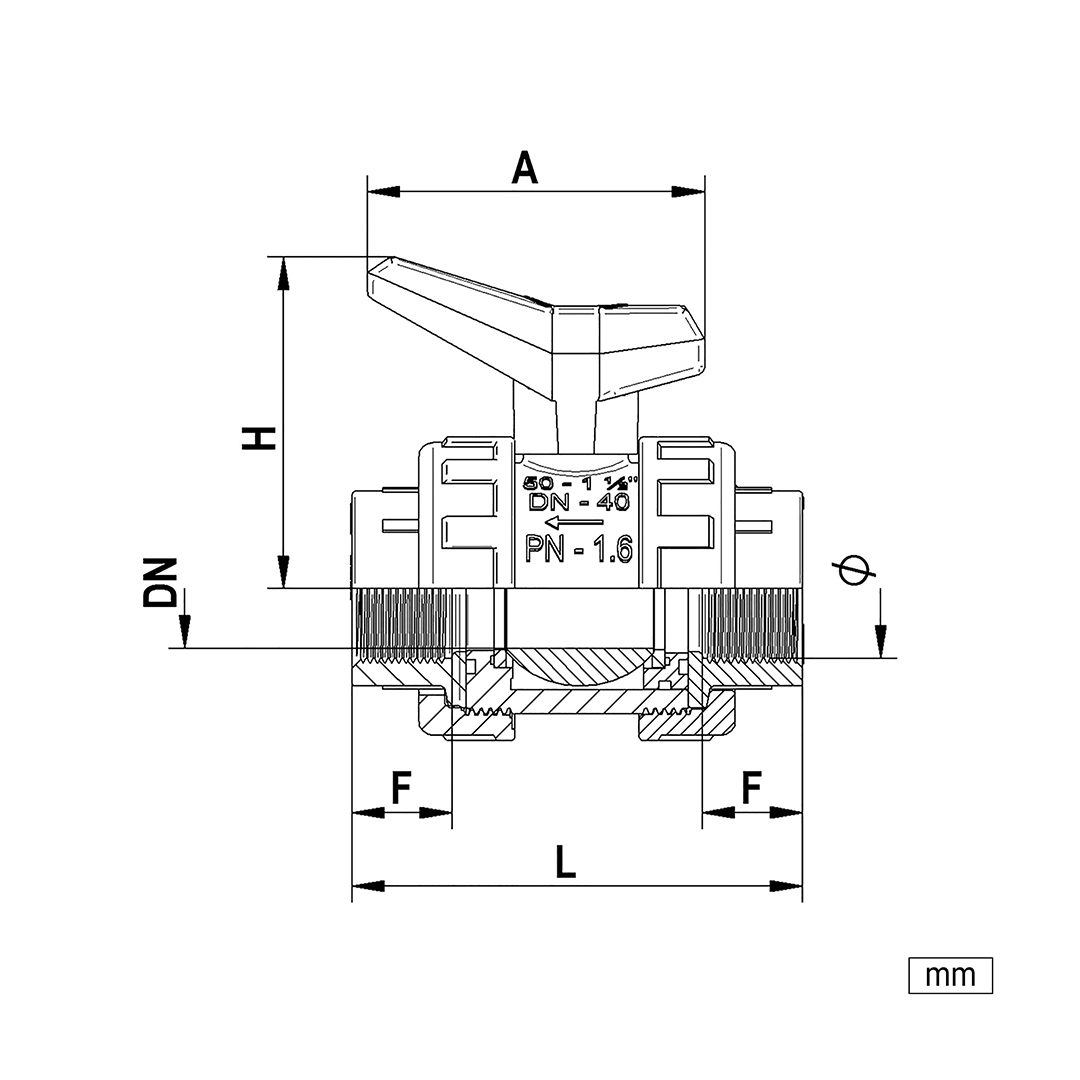

| Code | DN | A | F | H | L | Ø |
|---|---|---|---|---|---|---|
| 1020016 | 10 | 61 | 14 | 55 | 95 | ⅜” |
| 1020020 | 15 | 61 | 16 | 55 | 95 | ½” |
| 1020025 | 20 | 61 | 19 | 58 | 102 | ¾” |
| 1020032 | 25 | 82 | 22 | 77 | 115 | 1” |
| 1020040 | 32 | 82 | 26 | 81 | 130 | 1¼” |
| 1020050 | 40 | 110 | 31 | 107 | 144 | 1½” |
| 1020063 | 50 | 110 | 38 | 113 | 166 | 2” |
| 1020075 | 65 | 152 | 44 | 152 | 224 | 2½” |
| 1020090 | 65 | 152 | 51 | 152 | 232 | 3” |
| 1020091 | 80 | 152 | 61 | 163 | 246 | 3” |
| 1020110 | 100 | 277 | 61 | 180 | 307 | 4” |
