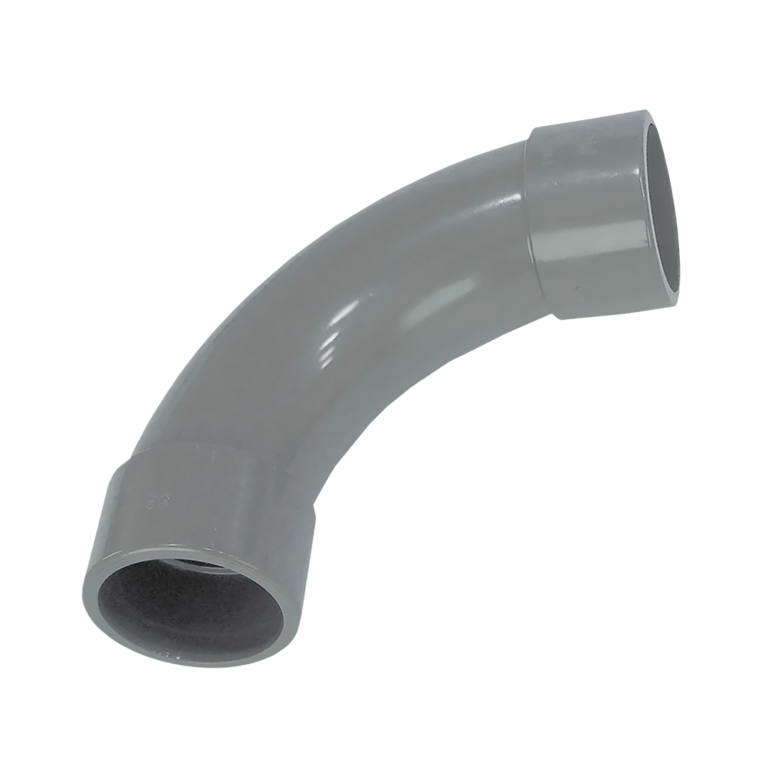

Bend 90° solvent
MODEL:
7110
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

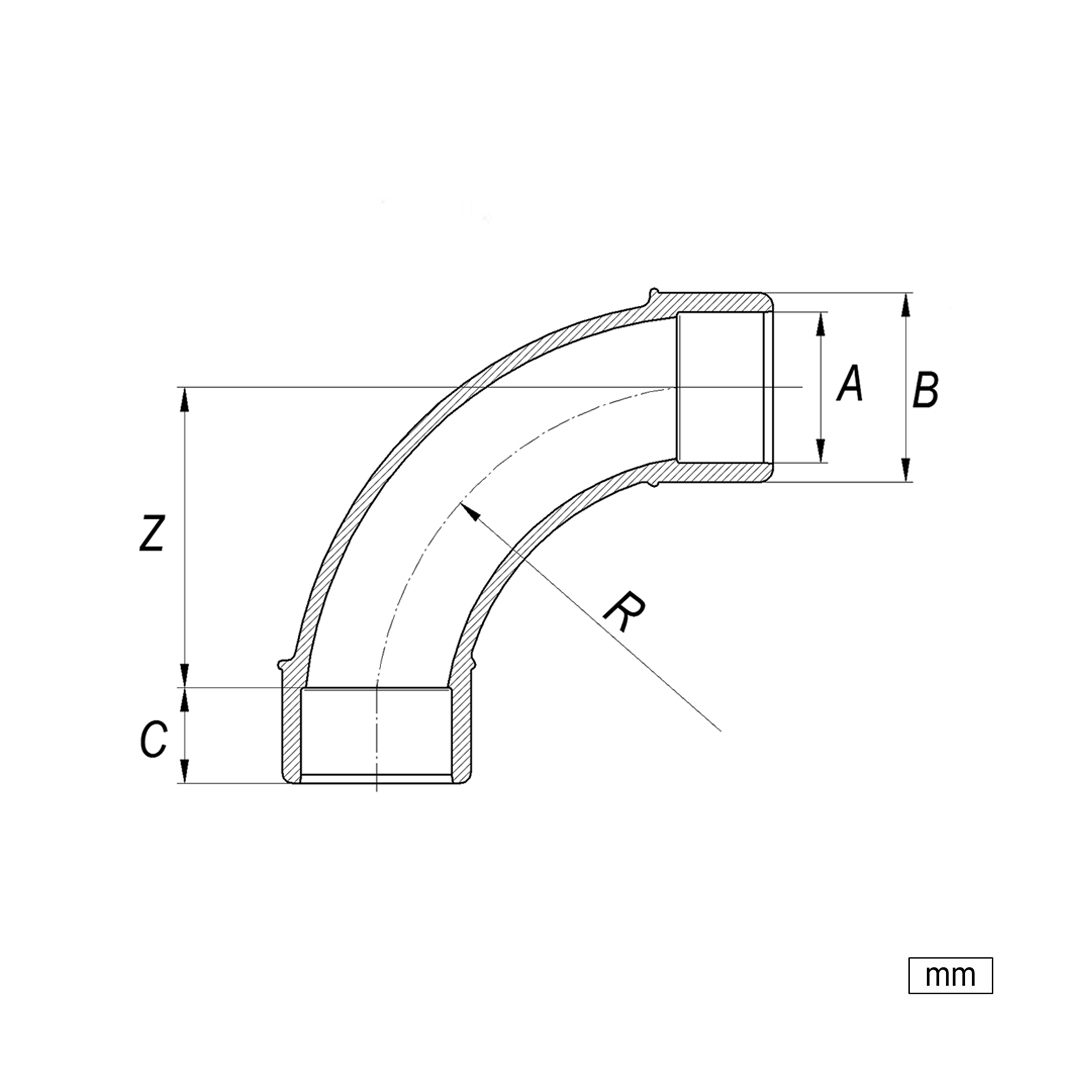

Dimensions & Performances
ZOOM IN
| Code | DN | A | B | C | R | Z | PN | Ø |
|---|---|---|---|---|---|---|---|---|
| 7110020 | 15 | 20 | 25 | 16 | 45 | 40 | 16 | 20 |
| 7110025 | 20 | 25 | 32 | 19 | 58 | 50 | 16 | 25 |
| 7110032 | 25 | 32 | 40 | 22 | 75 | 64 | 16 | 32 |
| 7110040 | 32 | 40 | 50 | 26 | 90 | 80 | 16 | 40 |
| 7110050 | 40 | 50 | 63 | 32 | 100 | 100 | 16 | 50 |
| 7110063 | 50 | 63 | 75 | 38 | 142 | 127 | 16 | 63 |
| 7110075 | 65 | 75 | 90 | 44 | 165 | 150 | 16 | 75 |
| 7110090 | 80 | 90 | 110 | 53 | 208 | 181 | 16 | 90 |
| 7110110 | 100 | − | − | − | − | − | 16 | 110 |
| 7110125 | 110 | − | − | − | − | − | 10 | 125 |
| 7110140 | 125 | − | − | − | − | − | 10 | 140 |
| 7110160 | 150 | − | − | − | − | − | 10 | 160 |
| 7110200 | 175 | − | − | − | − | − | 4 | 200 |
| 7110225 | 200 | − | − | − | − | − | 4 | 225 |
| 7110250 | 225 | − | − | − | − | − | 4 | 250 |
| 7110315 | 300 | − | − | − | − | − | 4 | 315 |
| 7110400 | 353 | − | − | − | − | − | 4 | 400 |
