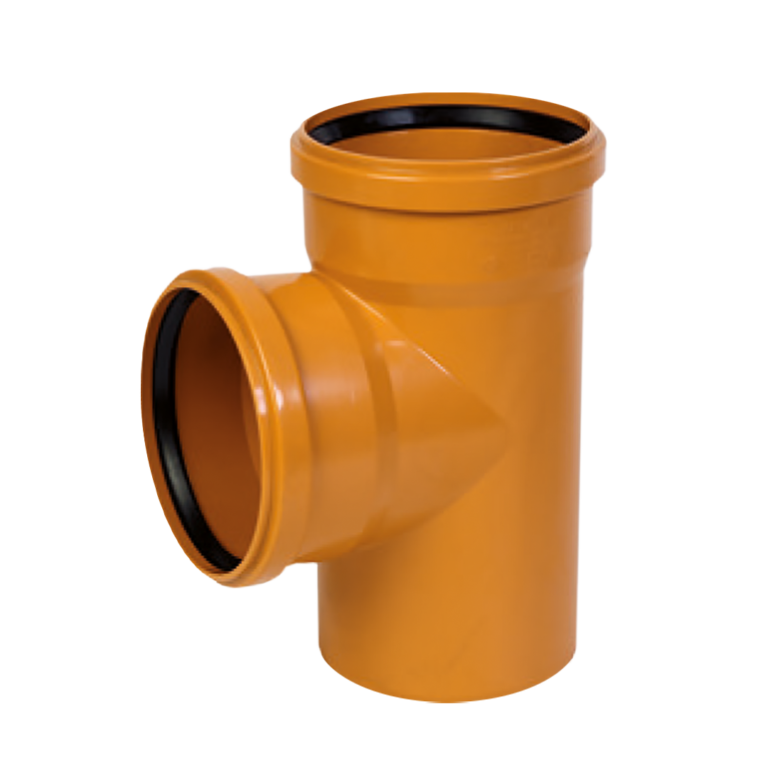

Branch 87,5° with O-ring

Name: Branch 87,5° with O-ring
SKU: 212110110673
Price: 1.00 EUR
Availability: InStock

MODEL: 212110110673

Pipes for domestic and street sewerage systems together with the appropriate coupling sleeves are intended to be used for the removal of all kinds of wastewater.

They are produced from unplasticized polyvinyl chloride (PVC-U).

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

ZOOM IN

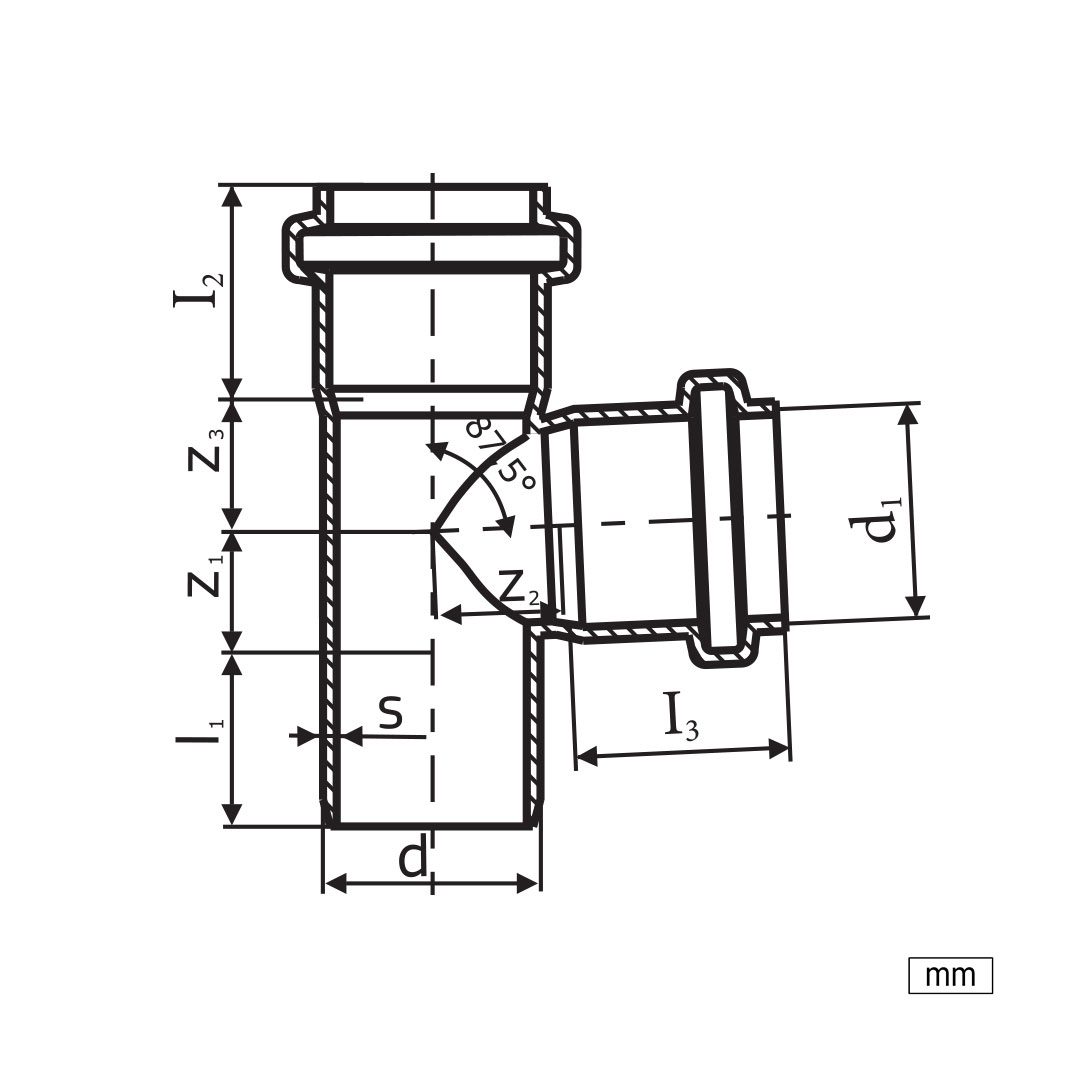

Code	D/D1	S	Z 1	Z 2	Z 3	I 1 min	I 2	I 3
212110110673	110/110	3,3	52,7	67,3	67,3	61	49,1	49,1
212125110673	125/110	3,3	52,4	67,6	67,6	68	54,6	49,1
212125125673	125/125	3,3	59,9	75,1	75,1	68	54,6	54,6
212160110673	160/110	4	58	86	64	81	86	61
212160125673	160/125	4	66	87	71	81	86	72
212160160673	160/160	4	83	89	89	81	86	86
212210110673	200/110	4,9	62	105	64	99	106	61
212200125673	200/125	4,9	69	75	101	75	106	72
212200160673	200/160	4,9	86	108	90	99	106	86
212200200673	200/200	4,9	106	111	111	99	106	106
212250110673	250/110	6,2	90	132	100	120	128	61
212250125673	250/125	6,2	90	132	100	120	128	72
212250160673	250/160	6,2	89	132	91	125	128	86
212250200673	250/200	6,2	108	134	111	125	128	106
212250250673	250/250	6,2	131	138	138	125	128	128
212315110673	315/110	7,7	93	162	104	134	155	61
212315125673	315/125	7,7	93	162	104	134	155	72
212315160673	315/160	7,7	93	164	104	134	155	86
212315200673	315/200	7,7	111	165	113	132	155	106
212315250673	315/250	7,7	134	169	139	132	155	128
212315315673	315/315	7,7	165	173	173	132	155	155
