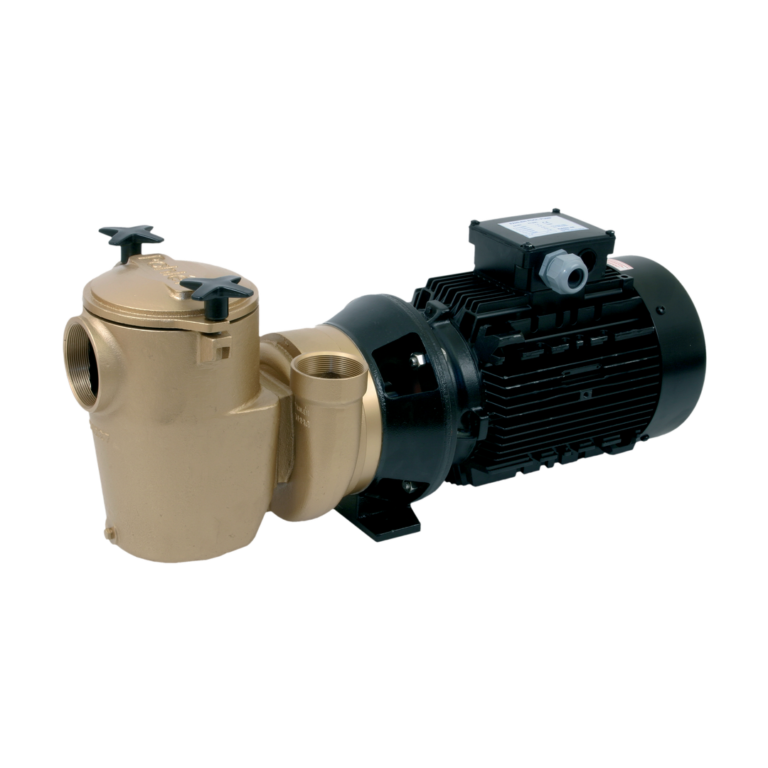

Bronze, centrifugal pump, 2.900rpm
MODEL:
P85
MANUFACTURER:
Pool pumps of bronze run quiet and are stable.
The pump impeller, pre-filter and pump housing is also made of bronze and it is fitted to a shaft made of acid-proof stainless steel.
Equipped with a strainer basket making it easy to remove dirt such as leaves.
Specifications
- The pump housing and pump impeller are made of bronze.
- The pump shaft is made of acid-proof stainless steel.
- High-quality motors.
- Pre-filter made of bronze with filter basket of composite material.
- Equipped with a drain plug.
- Third-party tested and certified.

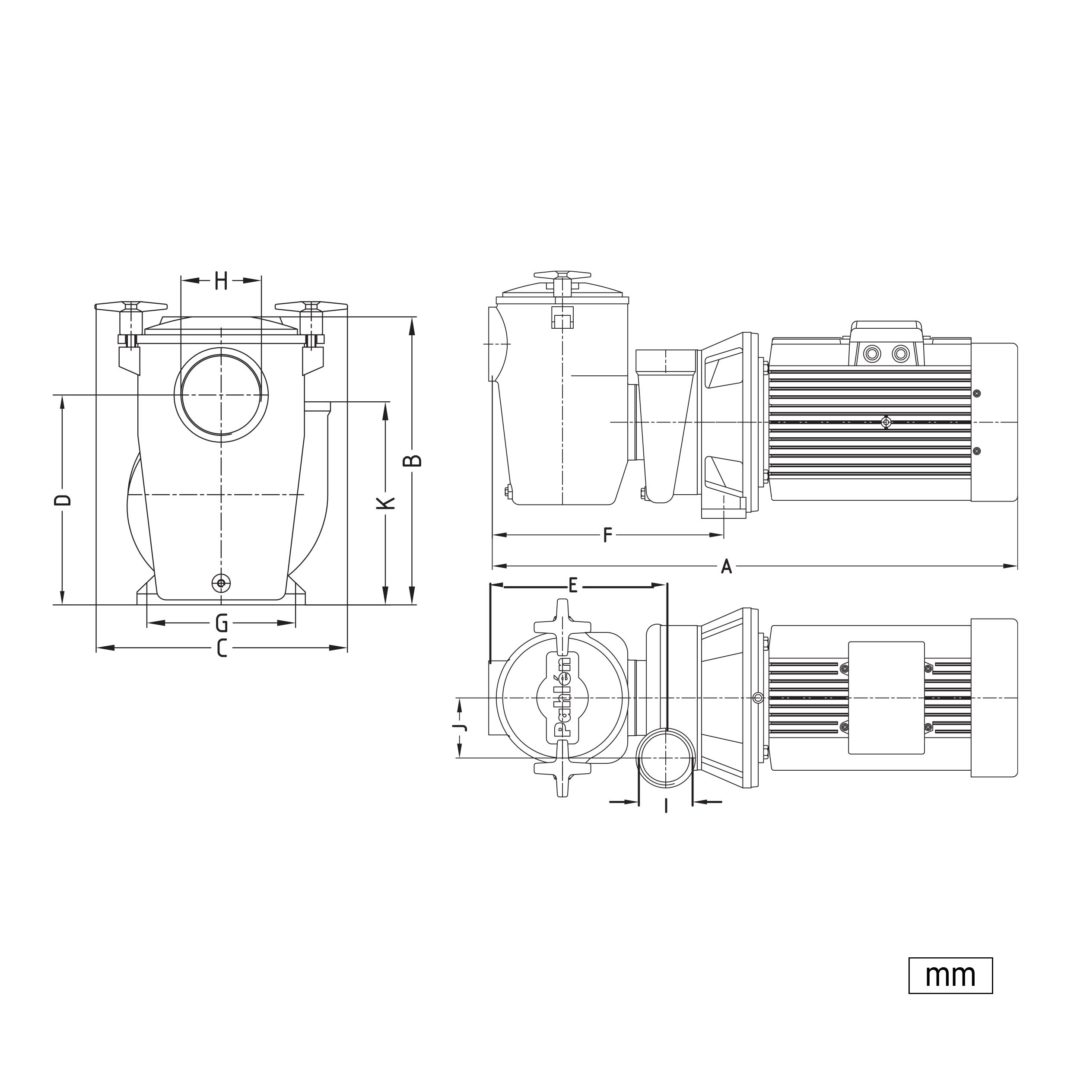

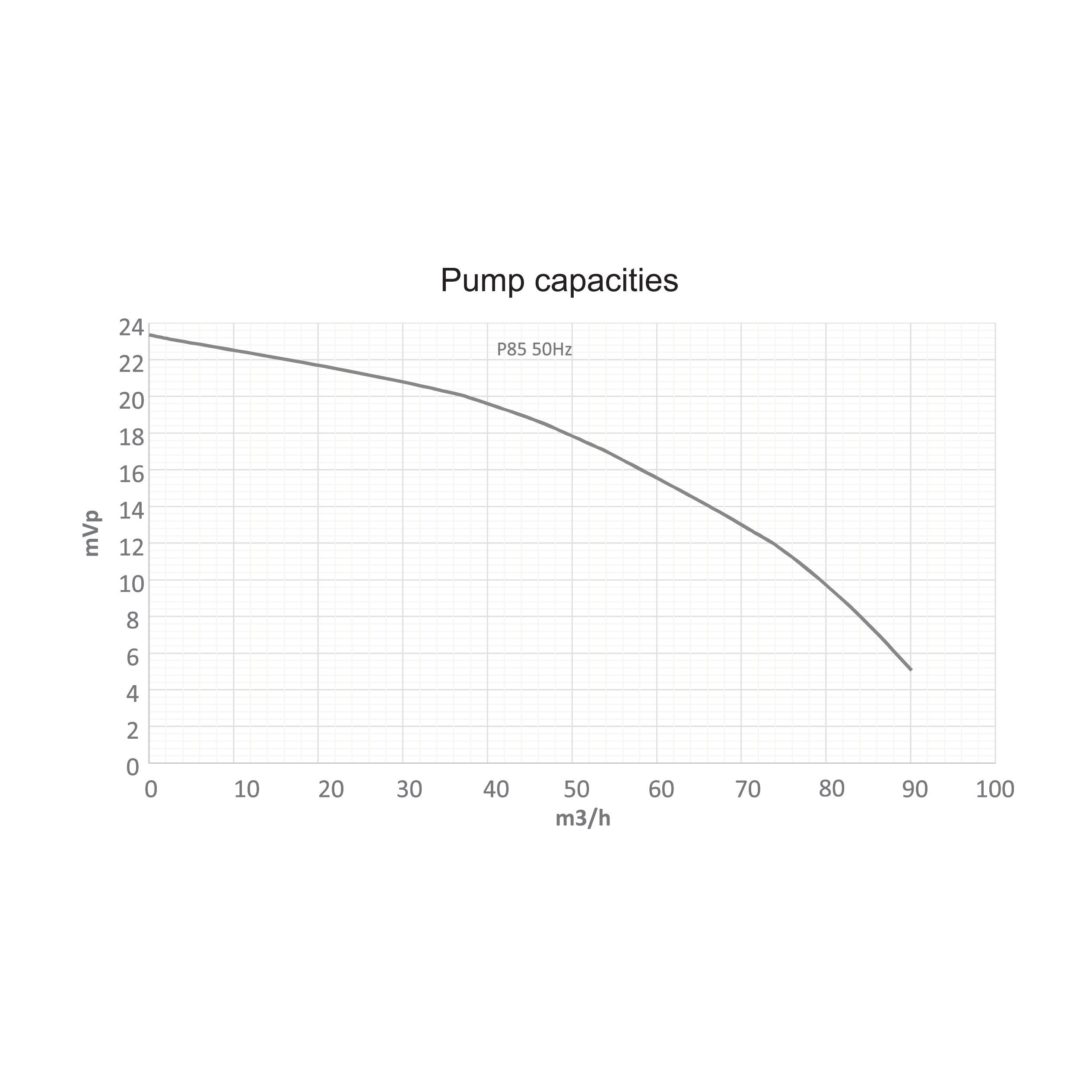

Dimensions & Performances
ZOOM IN
| Model | HP | Α (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11224 | 7,5 | 815 | 330 | 275 | 250 | 240 | 315 | 140 | 3" | 2½" | 82 | 235 |
