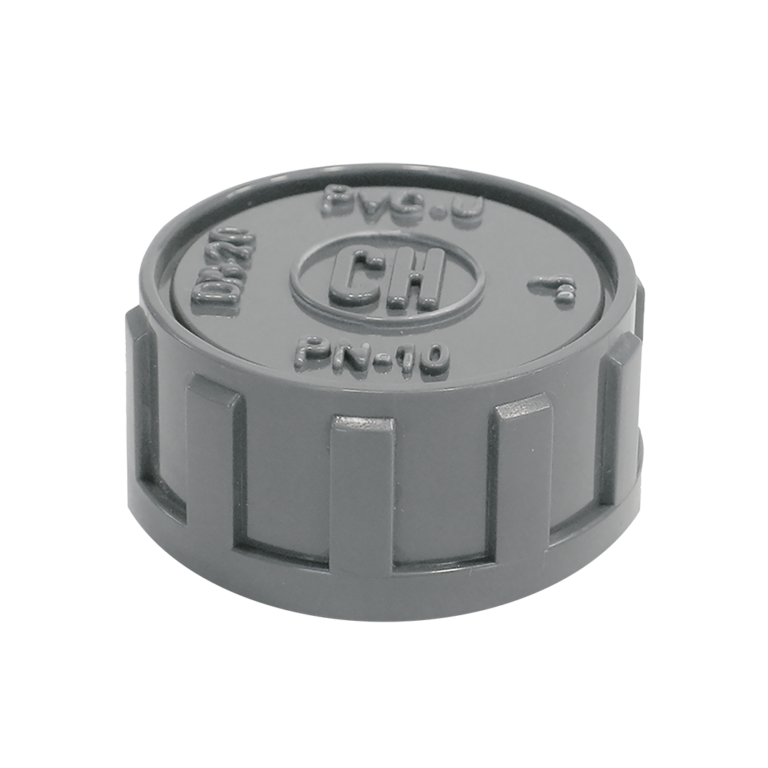

Cap 1” female
MODEL:
7210013
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

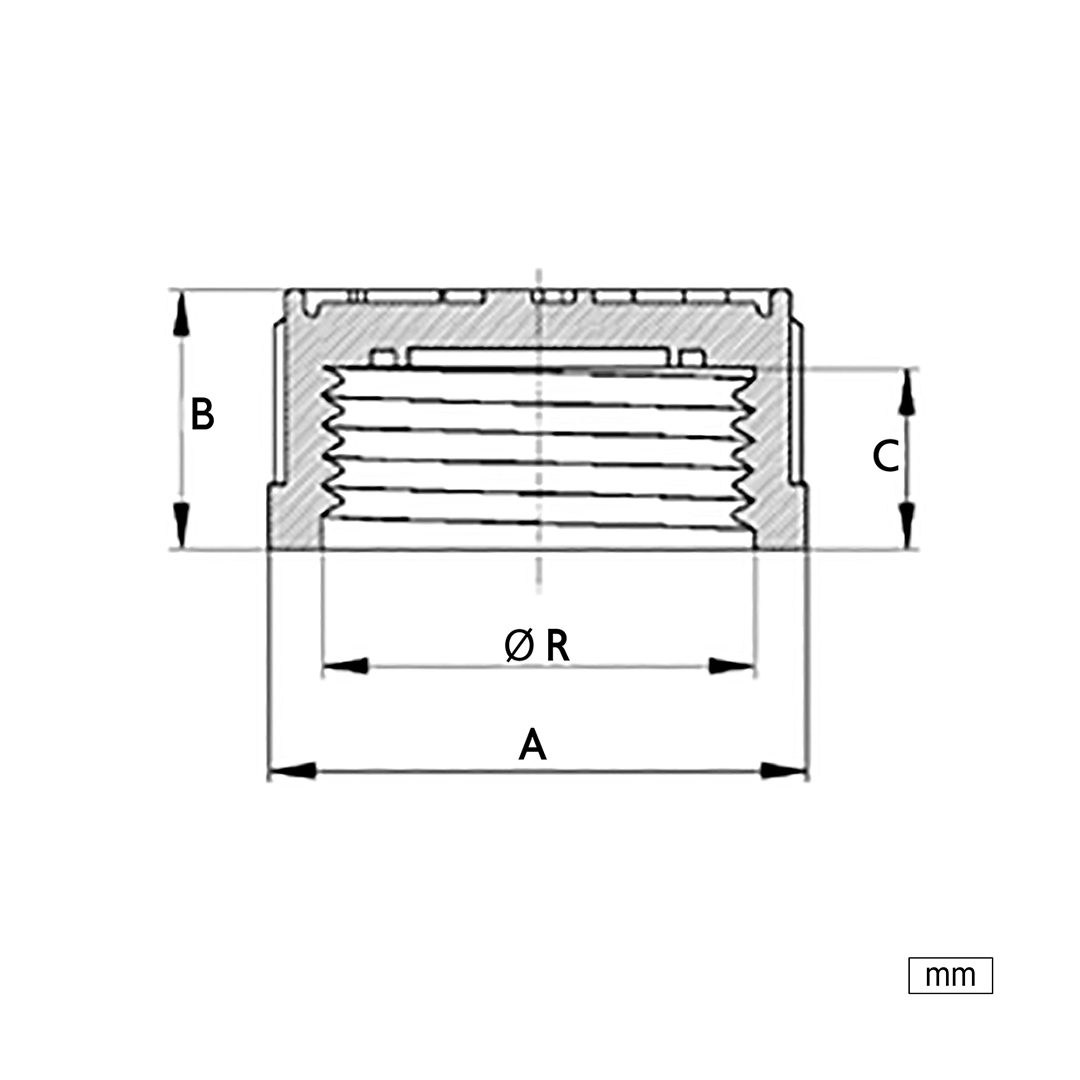

Dimensions & Performances
ZOOM IN
| Code | A | B | C | R | Ø |
|---|---|---|---|---|---|
| 7210013 | 41,5 | 20 | 14 | 1” | 1”− G |
Catalogue
