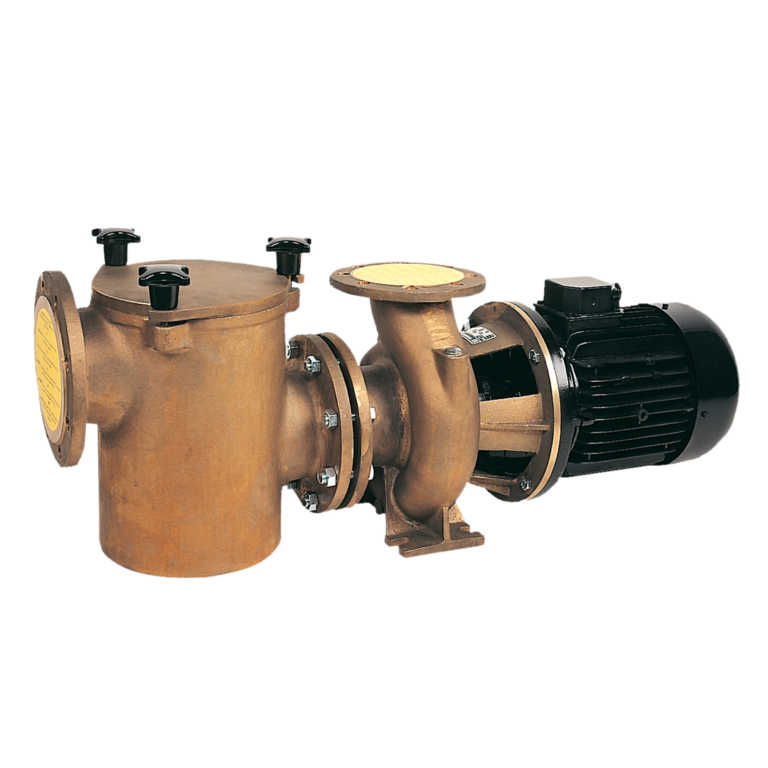

Cast bronze centrifugal pump, 2.850rpm

Name: Cast bronze centrifugal pump, 2.850rpm
SKU: BR
Availability: InStock

MODEL: BR

MANUFACTURER:

A large volume centrifugal pump, to which a pre-filter has been applied in the inlet, makes these the ideal pumps for large filtering units.

The bronze version is ideal for sea water and automatic pool systems that use salt electrolysis as a means of disinfecting.

On request, these pumps may be supplied in any other bronze alloy.

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

Pump body, support, pre-filter and impeller in bronze DIN-1705 RG 5 (G-CuSn5 ZnPb).
Shaft and pre-filter basket in AISI-316 stainless steel.
Cast iron coupling. Mechanical seal in carbon-ceramic and AISI-316 stainless steel.
Large Pre-filter.

Screws in S.S. AISI-316.

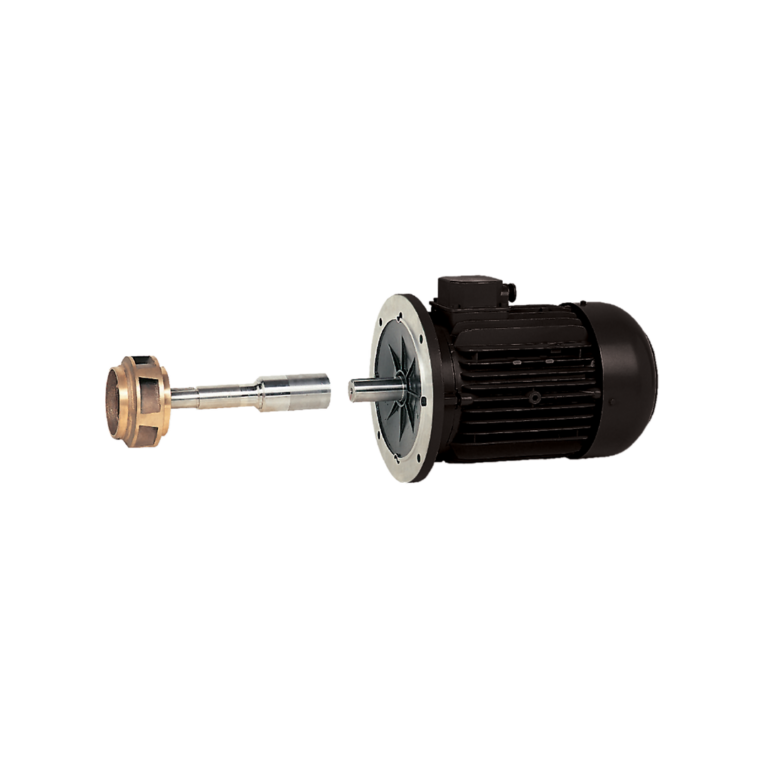

Standard asynchronous motor closed with external ventilation. Its standard construction allows it to be replaced with another standard motor at any time and in any place.
Protection IP-55, 50-60Hz / 2.900rpm.

ZOOM IN

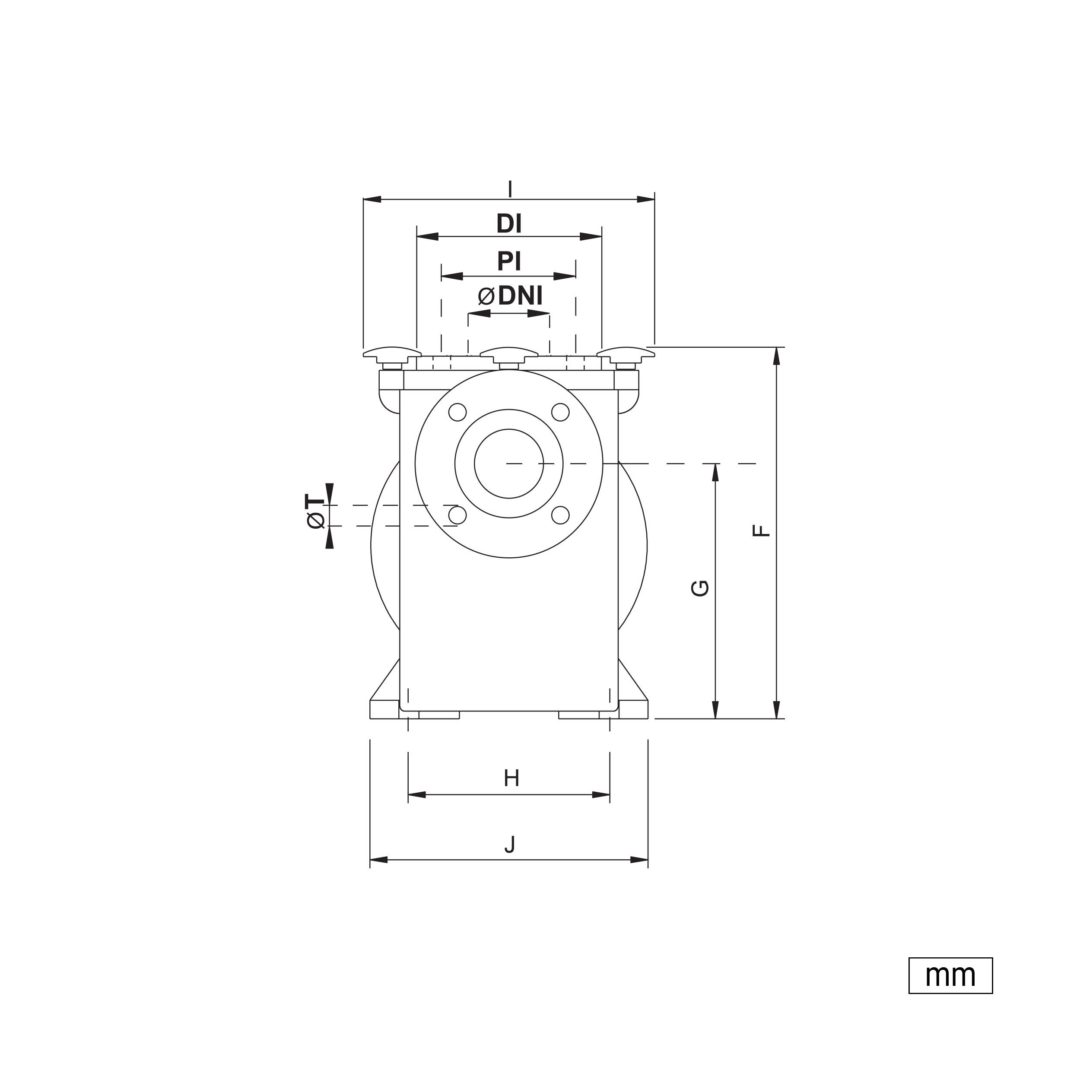

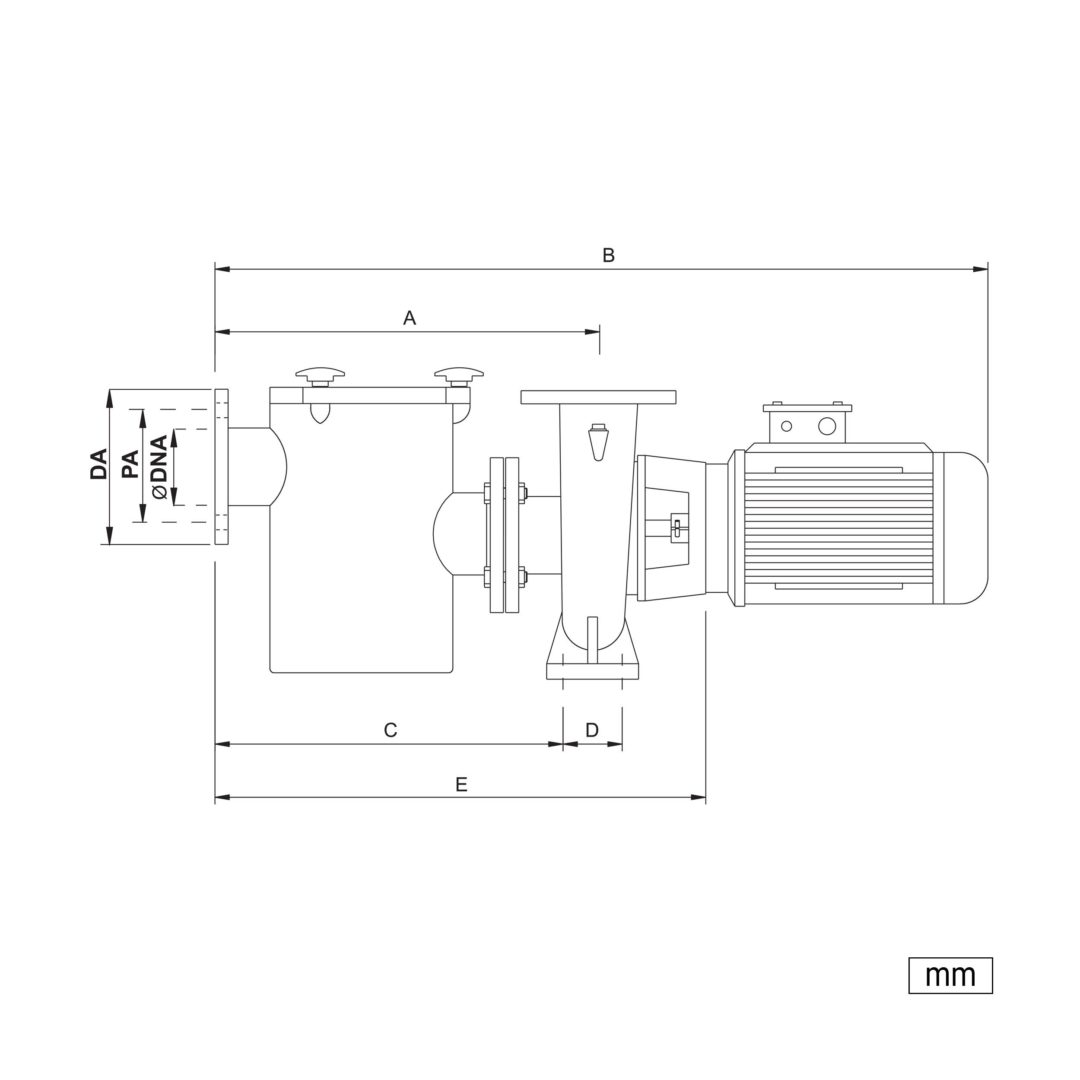

Model	HP	Α (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	I (mm)	J (mm)	Ø DNA	DA	PA	NºT	Ø T	Ø DNI	DI	PI
BR-300	3,0	465	880	425	80	605	410	275	200	320	250	80	200	160	4	18	80	200	160
BR-400	4,0	465	910	425	80	605	410	275	200	320	250	80	200	160	4	18	80	200	160
BR-550	5,5	500	985	455	105	635	435	280	215	330	280	125	250	210	8	18	100	220	180
BR-551	5,5	500	985	455	105	635	435	280	215	330	280	125	250	210	8	18	100	220	180
BR-750	7,5	500	1050	455	105	675	435	280	215	330	280	125	250	210	8	18	100	220	180
BR-1000	10,0	525	1095	470	120	725	465	325	275	345	330	125	250	210	8	18	100	220	180
BR-1250	12,5	525	1130	470	120	725	465	325	275	345	330	125	250	210	8	18	100	220	180
BR-1500	15,0	525	1130	470	120	725	465	325	275	345	330	125	250	210	8	18	100	220	180
