Cast iron centrifugal pump, 1.450rpm
MODEL:
CISH
MANUFACTURER:
A large volume pump, to which a pre-filter has been applied in the inlet, makes these the ideal pumps for large filtering units.
The fact that the pump works with a 1.450rpm motor, makes it very quiet and long-lasting.
Specifications
- Made entirely in full cast iron.
- AISI-316 stainless steel shaft.
- Bronze impeller on demand.
- Ideal for high heights filtrations.
- Flange connection from DN-40 to DN-125.
- Large prefilter basket made of AISI-316.
- On-demand mechanical seal in silicon carbide.
- Motor and pump shafts are connected by coupling.
- Available in vertical version (VERT CISH).
- Stainless steel screws AISI-316.
- IE3 standardized motor at 1.450rpm (1.750rpm @ 60Hz).
- Lubricated bearings for life.
- IP-55 Grade, Class F Insulation.

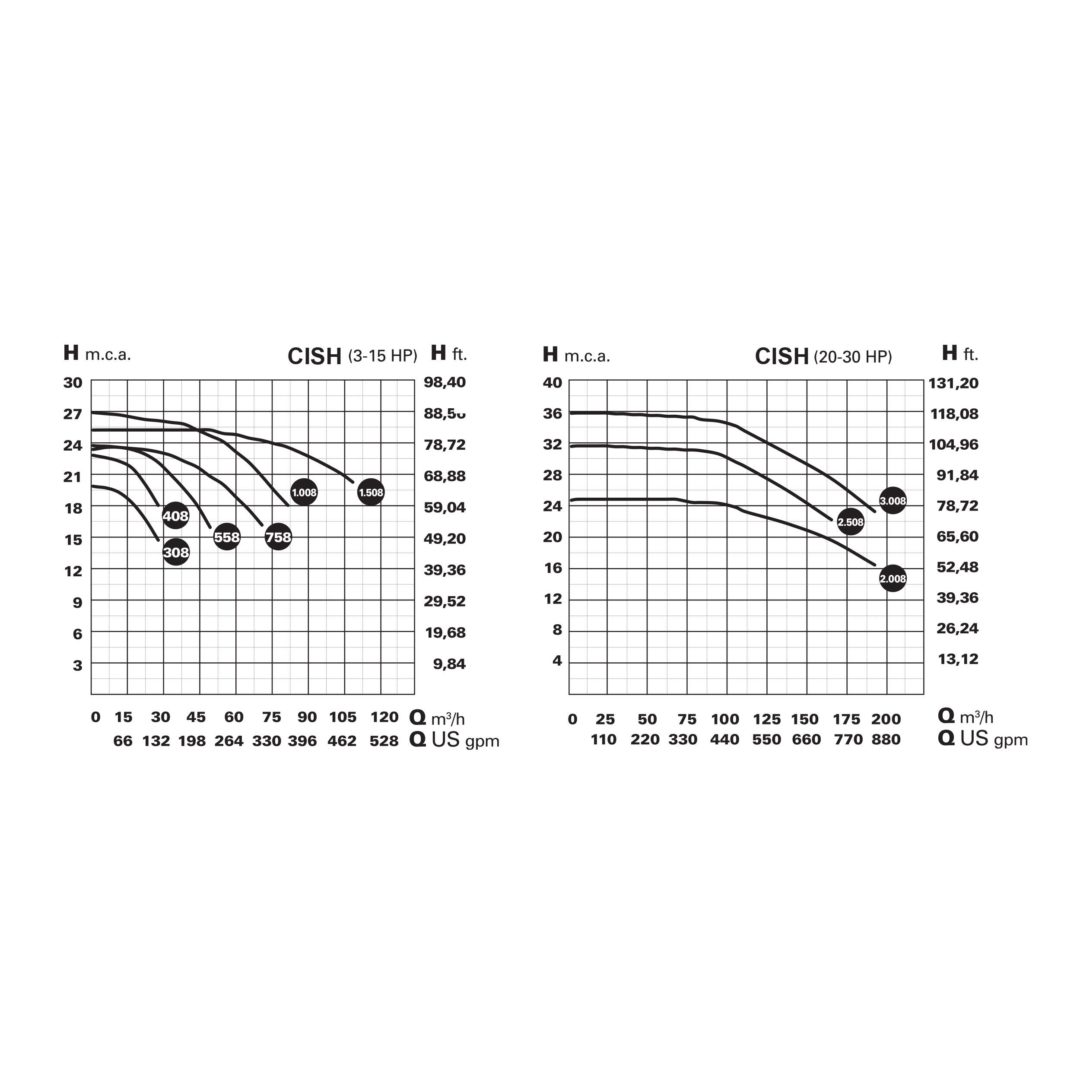

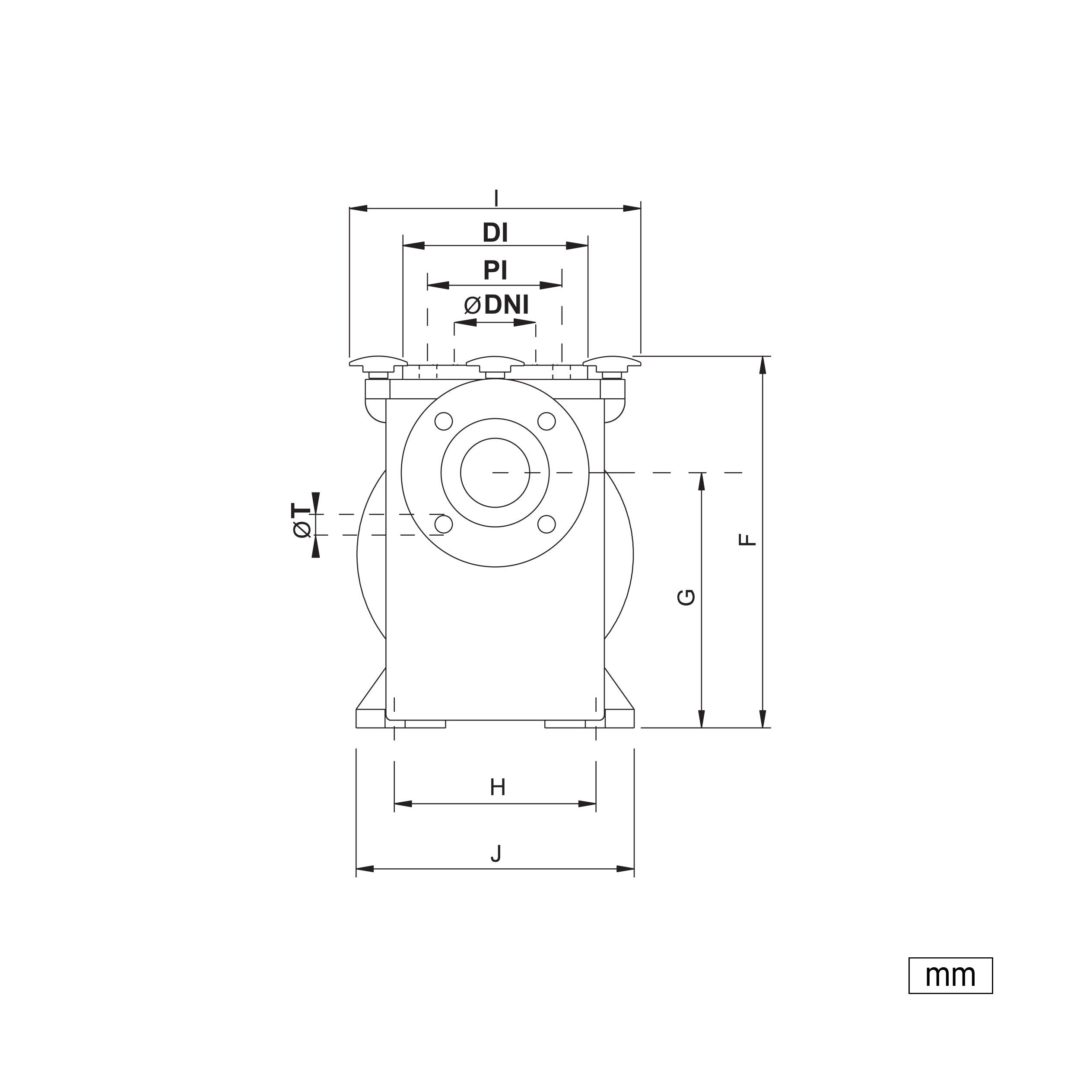

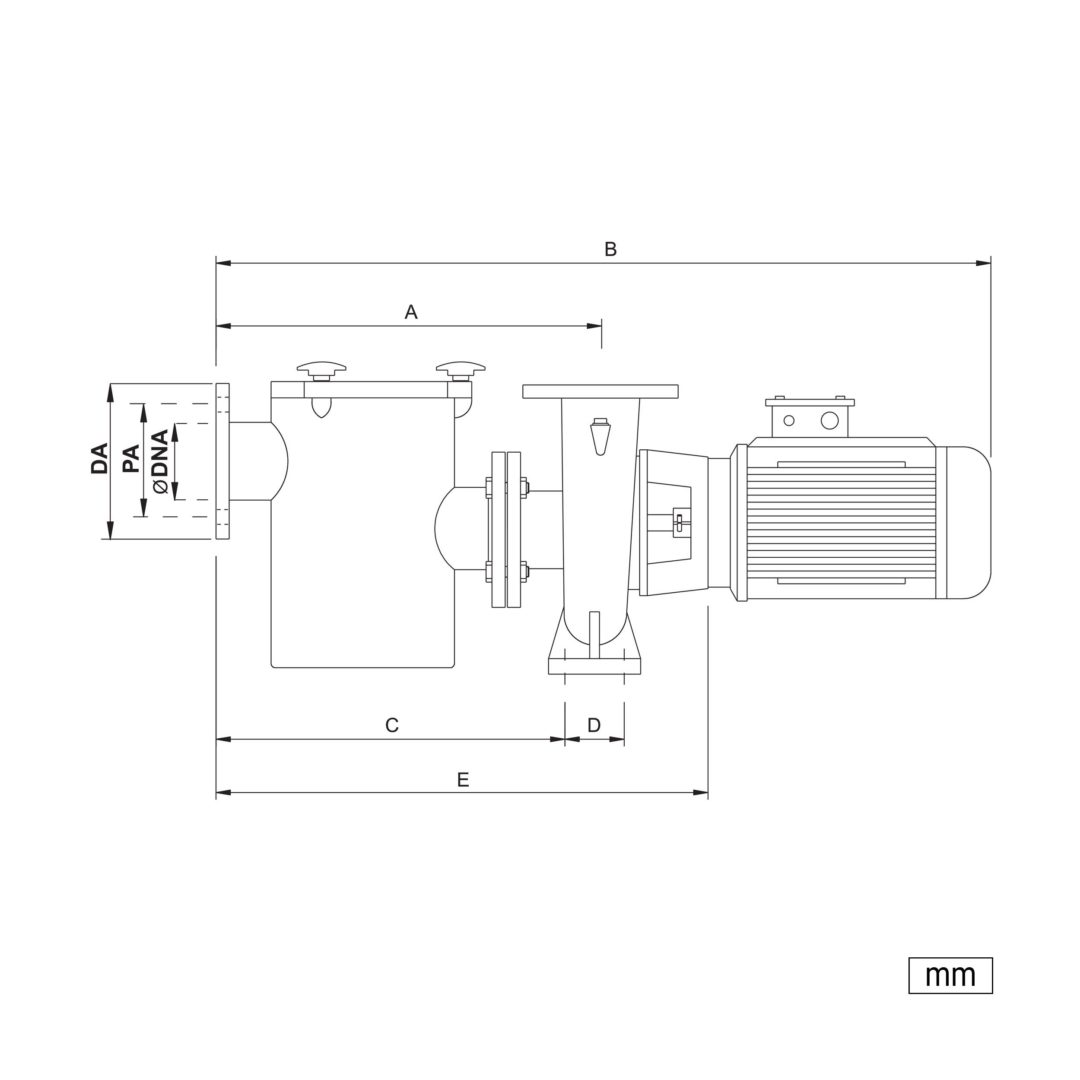

Dimensions & Performances
ZOOM IN
| Model | HP | Α (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | Ø DNA | DA | PA | NºT | Ø T | Ø DNI | DI | PI |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CISH-300 | 3,0 | 480 | 994 | 432 | 95 | 654 | 415 | 310 | 250 | 260 | 336 | 65 | 185 | 145 | 4 | 16 | 40 | 150 | 110 |
| CISH-400 | 4,0 | 480 | 994 | 432 | 95 | 654 | 415 | 310 | 250 | 260 | 336 | 65 | 185 | 145 | 4 | 16 | 40 | 150 | 110 |
| CISH-550 | 5,5 | 480 | 994 | 432 | 95 | 654 | 415 | 310 | 250 | 260 | 343 | 65 | 185 | 145 | 4 | 16 | 50 | 165 | 125 |
| CISH-750 | 7,5 | 480 | 1125 | 420 | 120 | 723 | 450 | 330 | 280 | 260 | 370 | 80 | 200 | 160 | 8 | 16 | 65 | 185 | 145 |
| CISH-1000 | 10 | 505 | 1150 | 445 | 120 | 748 | 505 | 355 | 315 | 260 | 429 | 80 | 200 | 160 | 8 | 16 | 65 | 185 | 145 |
| CISH-1500 | 15 | 505 | 1238 | 445 | 120 | 778 | 480 | 315 | 315 | 260 | 410 | 100 | 220 | 180 | 8 | 16 | 80 | 200 | 160 |
| CISH-2000 | 20 | 520 | 1253 | 460 | 120 | 793 | 505 | 340 | 315 | 260 | 424 | 125 | 250 | 210 | 8 | 16 | 100 | 220 | 180 |
| CISH-2500 | 25 | 520 | 1331 | 460 | 120 | 793 | 565 | 365 | 315 | 260 | 478 | 125 | 250 | 210 | 8 | 16 | 100 | 220 | 180 |
| CISH-3000 | 30 | 520 | 1406 | 460 | 120 | 793 | 565 | 365 | 315 | 260 | 478 | 125 | 250 | 210 | 8 | 16 | 100 | 220 | 180 |
