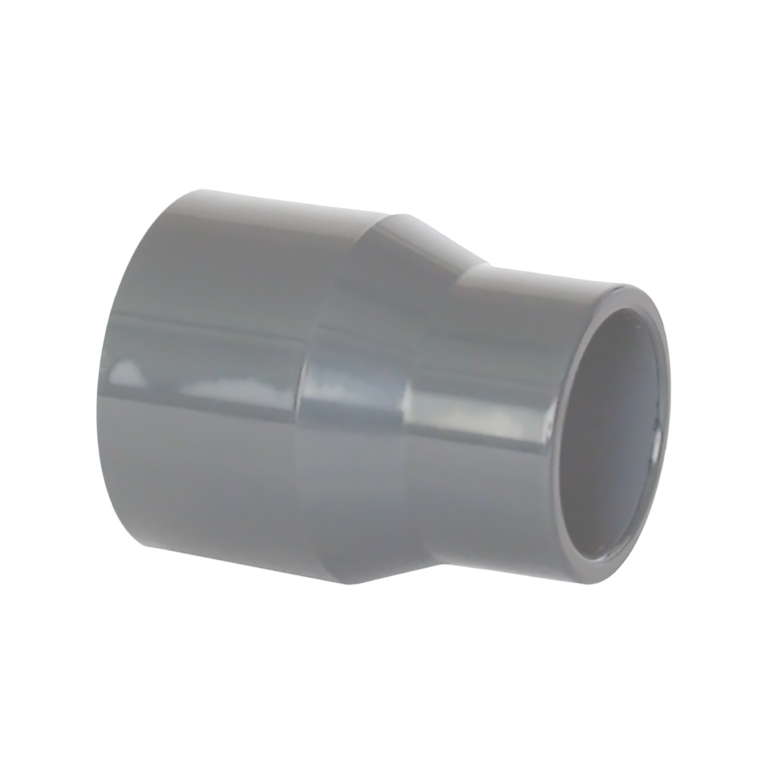

Conical Reducing

Name: Conical Reducing
SKU: 7108
Price: 1.00 EUR
Availability: InStock

MODEL: 7108

MANUFACTURER:

Code

Clear

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10.
Threaded fittings:
All sizes PN10.

Assembly:

The use of PTFE film is recommended for threaded fittings.

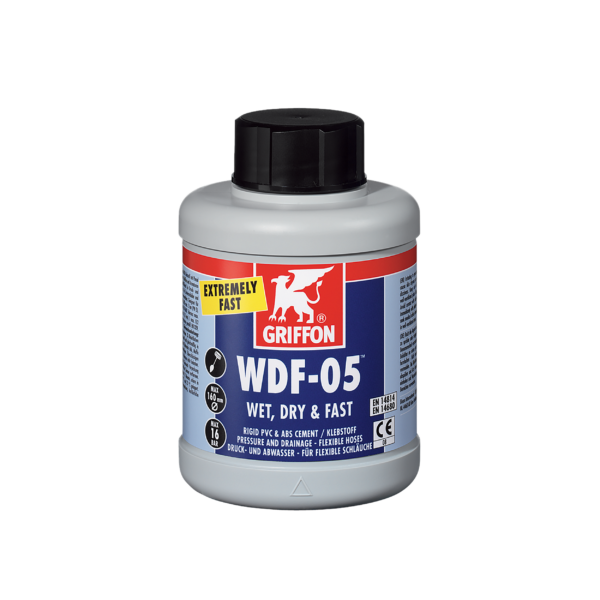

The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

ZOOM IN

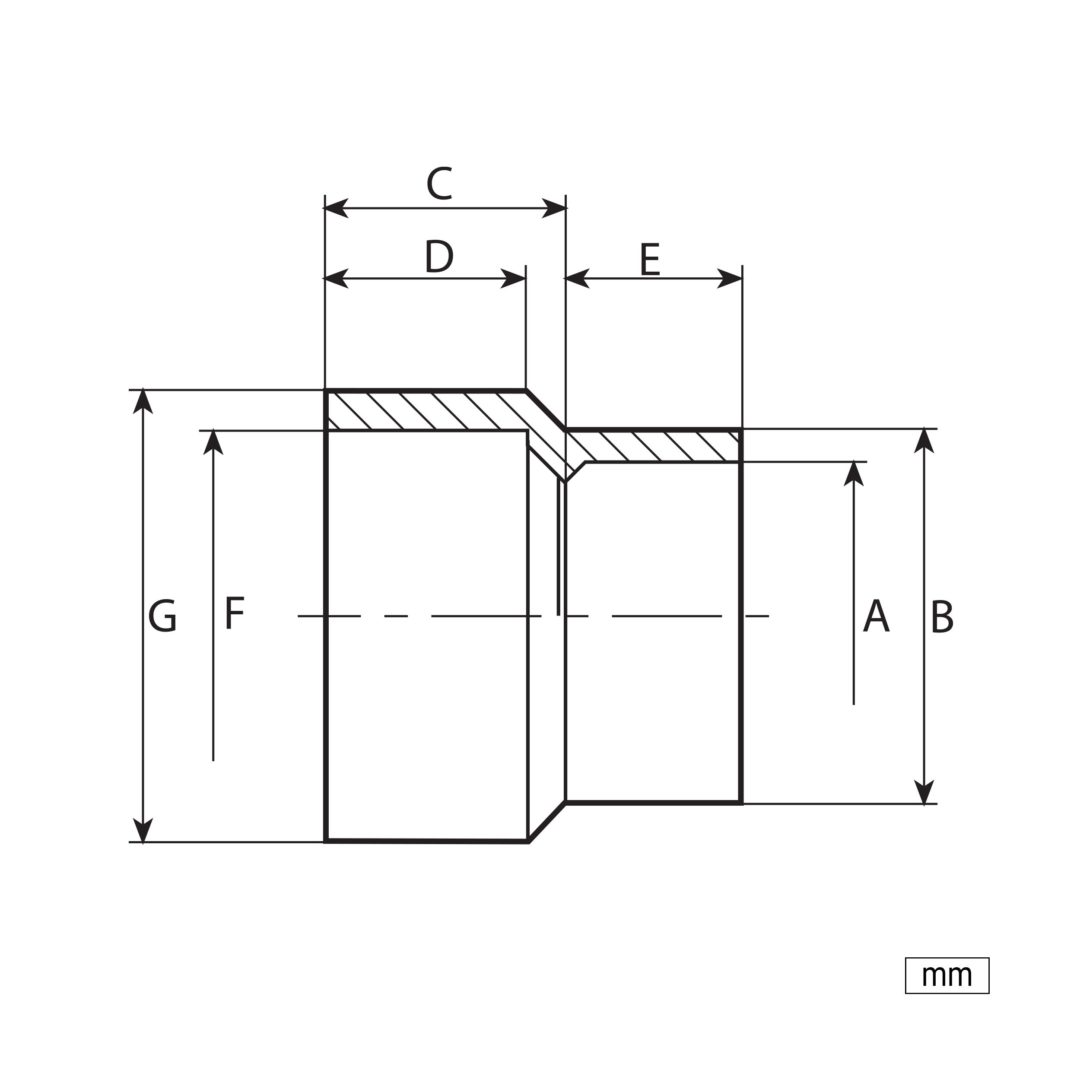

Code	DN	B	C	D	E	Ø (G − F x A)
7108025	10	20	25	19	14	25−20×16
7108032	15	25	30	22	16	32−25×20
7108039	15	27	36	26	16	40−32×20
7108040	20	32	36	26	19	40−32×25
7108048	15	27	44	31	16	50−40×20
7108049	20	33	44	31	19	50−40×25
7108050	25	40	44	31	22	50−40×32
7108060	15	27	54	38	16	63−50×20
7108061	20	33	54	38	19	63−50×25
7108062	25	41	54	38	22	63−50×32
7108063	32	50	54	38	26	63−50×40
7108064	40	61	54	38	32	63−50×50
7108073	25	41	62	44	22	75−63×32
7108074	32	50	62	44	26	75−63×40
7108075	40	63	62	44	31	75−63×50
7108088	32	50	74	51	26	90−75×40
7108089	40	61	74	51	31	90−75×50
7108090	50	75	74	51	38	90−75×63
7108108	40	61	88	61	31	110−90×50
7108109	50	75	88	61	38	110−90×63
7108110	65	90	88	61	44	110−90×75
7108123	50	75	100	69	38	125−110×63
7108124	65	90	100	69	44	125−110×75
7108125	80	105	100	69	51	125−110×90
7108138	65	90	111	76	44	140−125×75
7108139	80	105	111	76	51	140−125×90
7108140	100	130	111	76	61	140−125×110
7108156	50	74	126	86	38	160−140×63
7108157	65	89	126	86	44	160−140×75
7108158	80	105	126	86	51	160−140×90
7108159	100	130	126	86	61	160−140×110
7108160	110	148	126	86	69	160−140×125
7108198	100	130	154	106	61	200−180×110
7108201	110	148	154	106	69	200−180×125
7108200	125	164	154	106	76	200−180×140
7108225	110	148	171	119	69	225−200×125
7108226	125	160	171	119	76	225−200×140
7108227	150	180	171	119	86	225−200×160
7108249	125	157	194	131	76	250−225×140
7108250	150	180	194	131	86	250−225×160
7108251	175	225	194	131	106	250−225×200
7108315	150	180	233	164	86	315−280×160
7108316	175	225	233	164	106	315−280×200
7108500	−	−	−	−	−	500−400×280
7108501	−	−	−	−	−	500−400×315
7108502	−	−	−	−	−	500−400×355

Download
