Digital pressure control
MODEL:
SWITCHMATIC 2
MANUFACTURER:

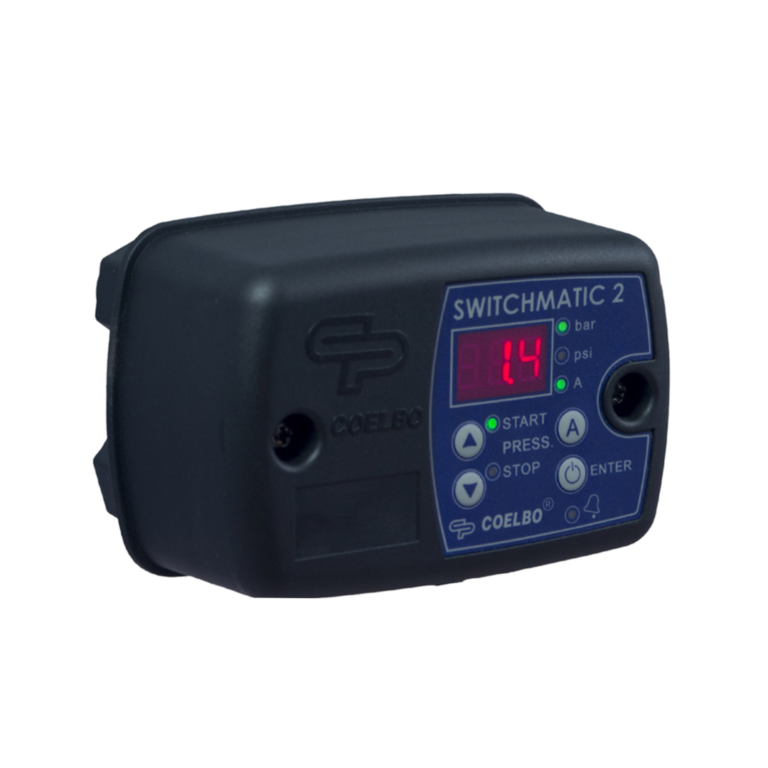

SWITCHMATIC 2 is an electronic pressure switch with a digital pressure selector. It can manage the start and stop of a single-phase electric pump up to 3HP (2.2kW).
The start and stop pressure can be set easily and precisely thanks to a simple control panel. The electrical connection is identical to that of traditional prostatic systems. It can operate with differential pressure or as a reverse pressure switch, or again only with minimum pressure or maximum pressure.
The SWITCHMATIC 2 version also has the possibility of instant current reading, in addition to the control and management of overcurrents, protection against dry running, and protection against fast cycling.
Specifications
- Start and shutdown management of a single-phase pump up to 2.2kW (3HP).
- Setting range 0.5 – 7.0 bar.
- Protection against dry pump operation.
- Overvoltage protection.
- Maximum pressure switch.
- Minimum pressure switch.
- Automatic system reset after unintentional power failure.
- Built-in pressure gauge.

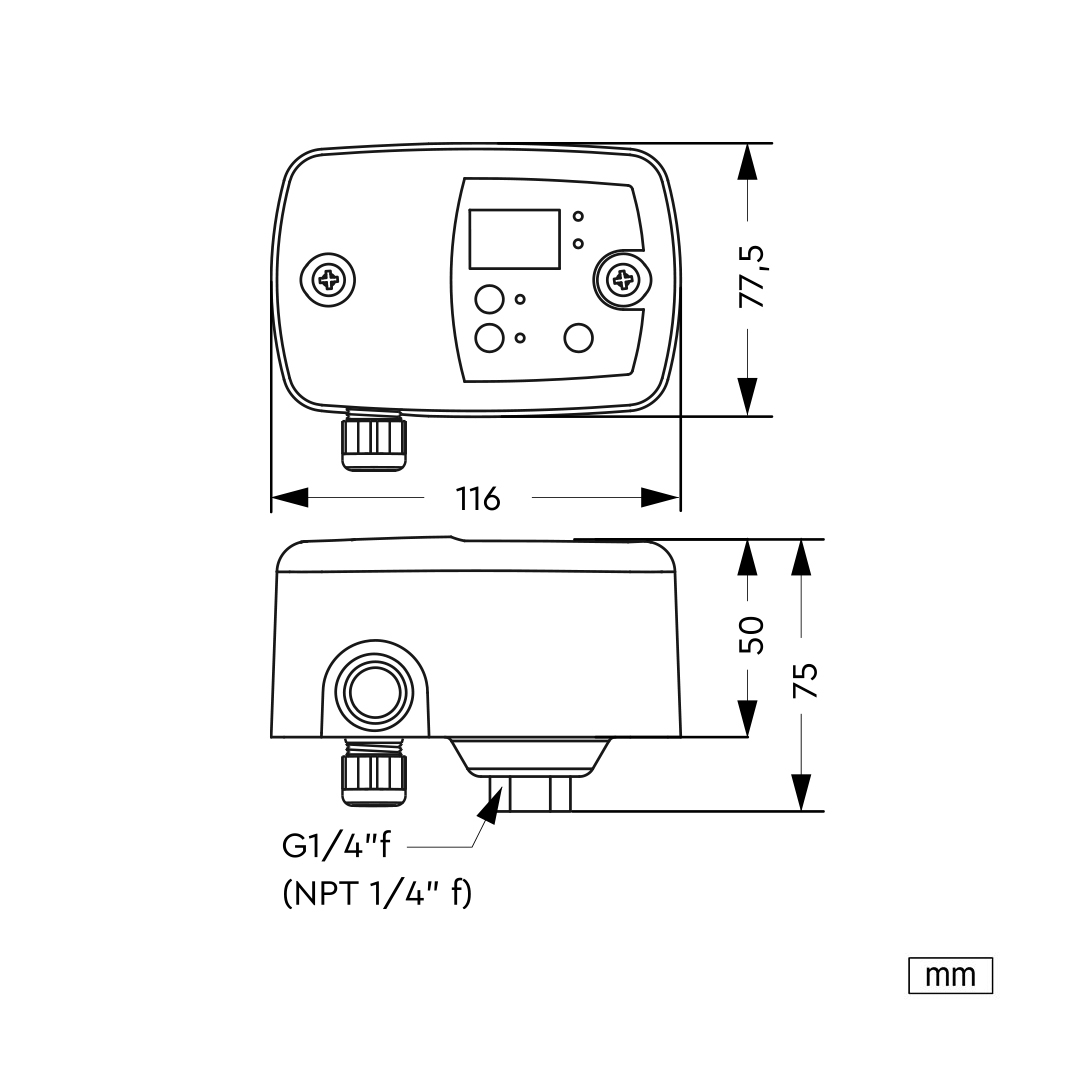

Dimensions & Performances
ZOOM IN
| Power supply voltage | Max. current | Max. pump power | Start-up pressure | Stop pressure | Max operating pressure | Water temperature | Max. environment temperature | Protection class | Suction depresion-diameter | Weight (without cables) |
|---|---|---|---|---|---|---|---|---|---|---|
| ~1 x 110-230 Vac, 50/60 Hz | 16 A | 2.2 kW (3 HP) | 0.5 ÷ 7.0 bar | 1.0 ÷ 8.0 bar | 8.0 bar | 40°C | 50°C | IP55 | 1″ | 0,4 kgr |
