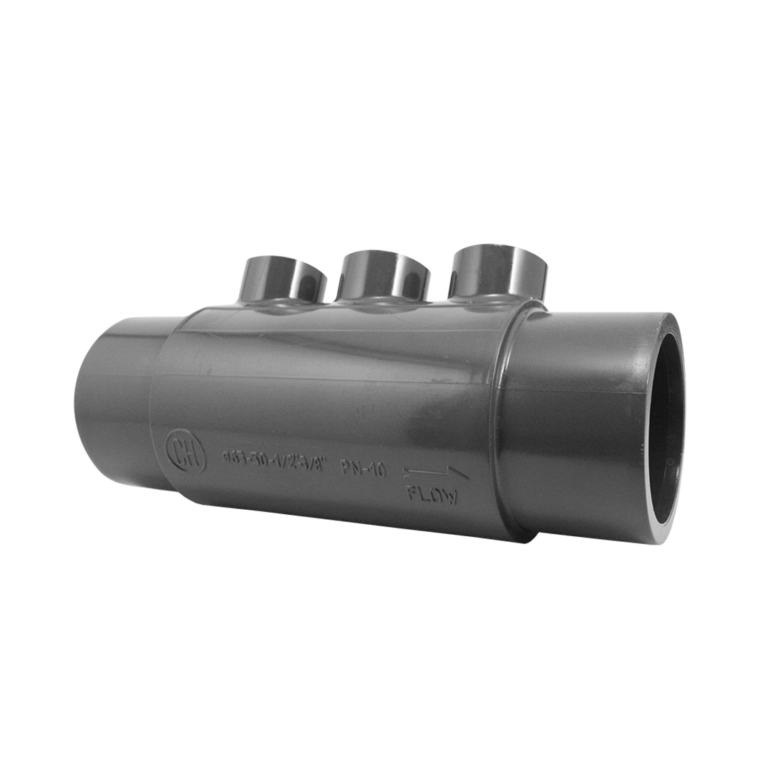

Dispenser manifold 50/63
MODEL:
72100
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

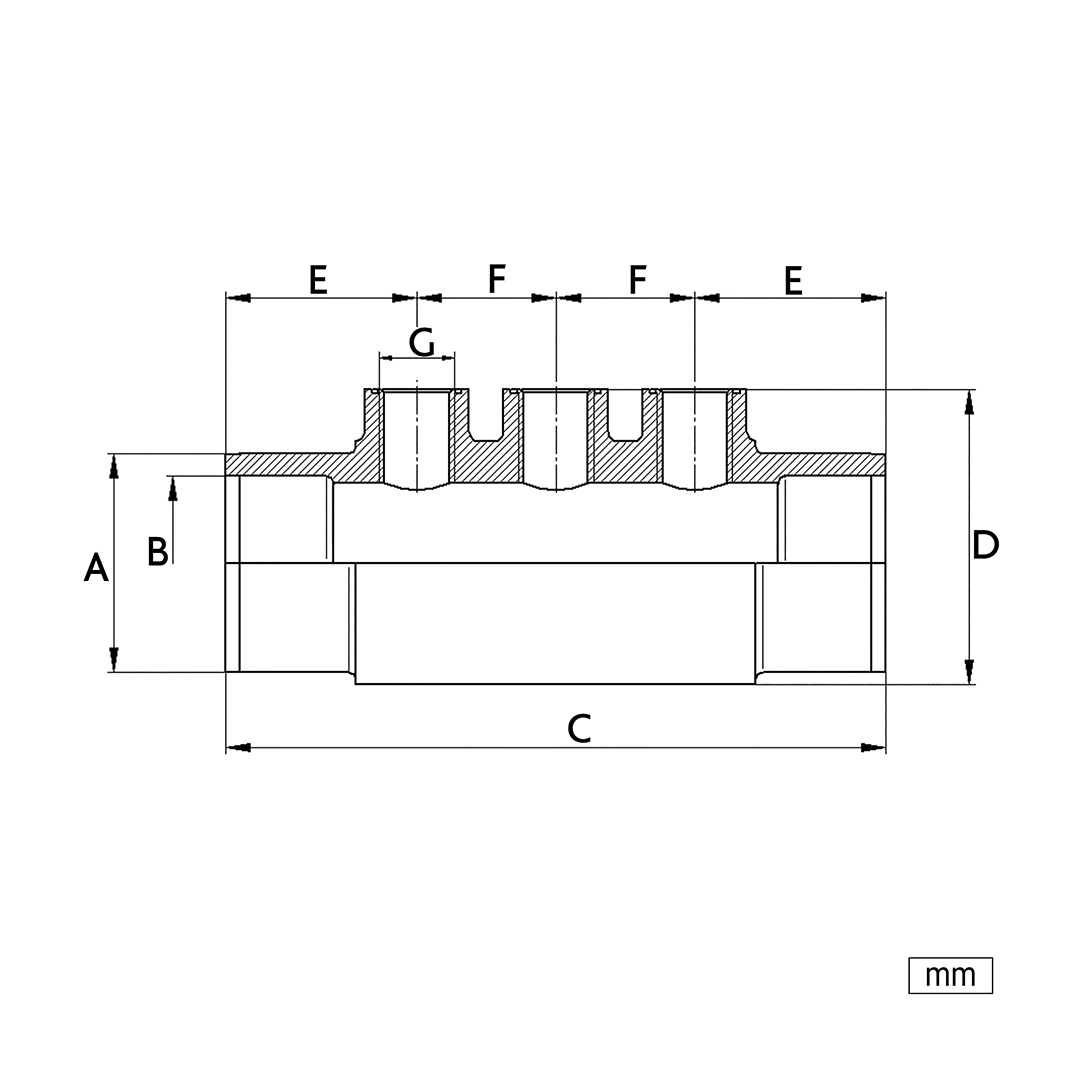

Dimensions & Performances
ZOOM IN
| Code | A | B | C | D | Ε | F | G | Ø |
|---|---|---|---|---|---|---|---|---|
| 7210016 | 63 | 50 | 190 | 85 | 55 | 40 | ½” | 50/63−½” |
| 7210017 | 63 | 50 | 190 | 85 | 55 | 40 | ½”−⅜” | 50/63−½”−⅜” |
