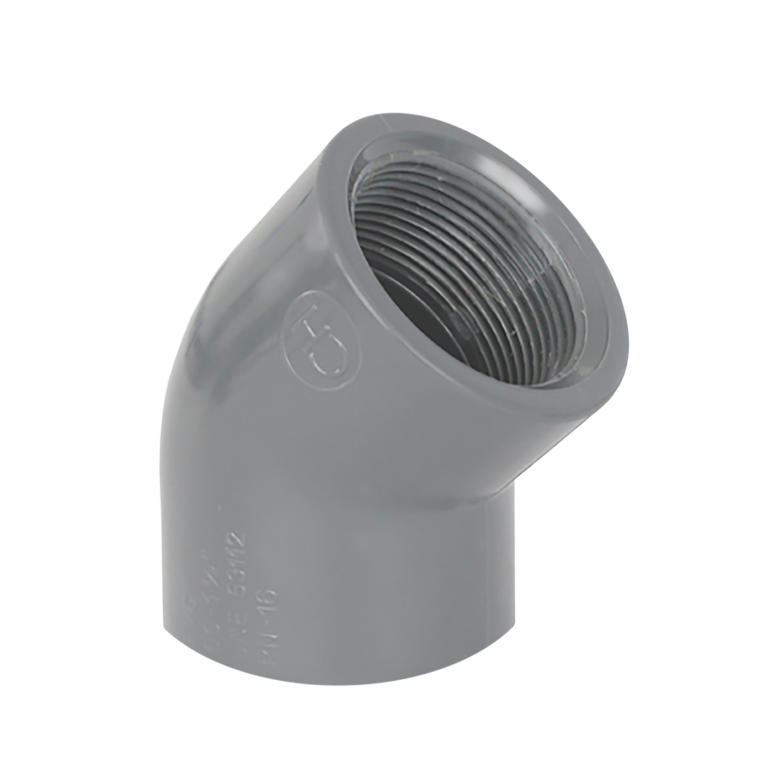

Elbow 45° mixed
MODEL:
7302
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Dimensions & Performances
ZOOM IN

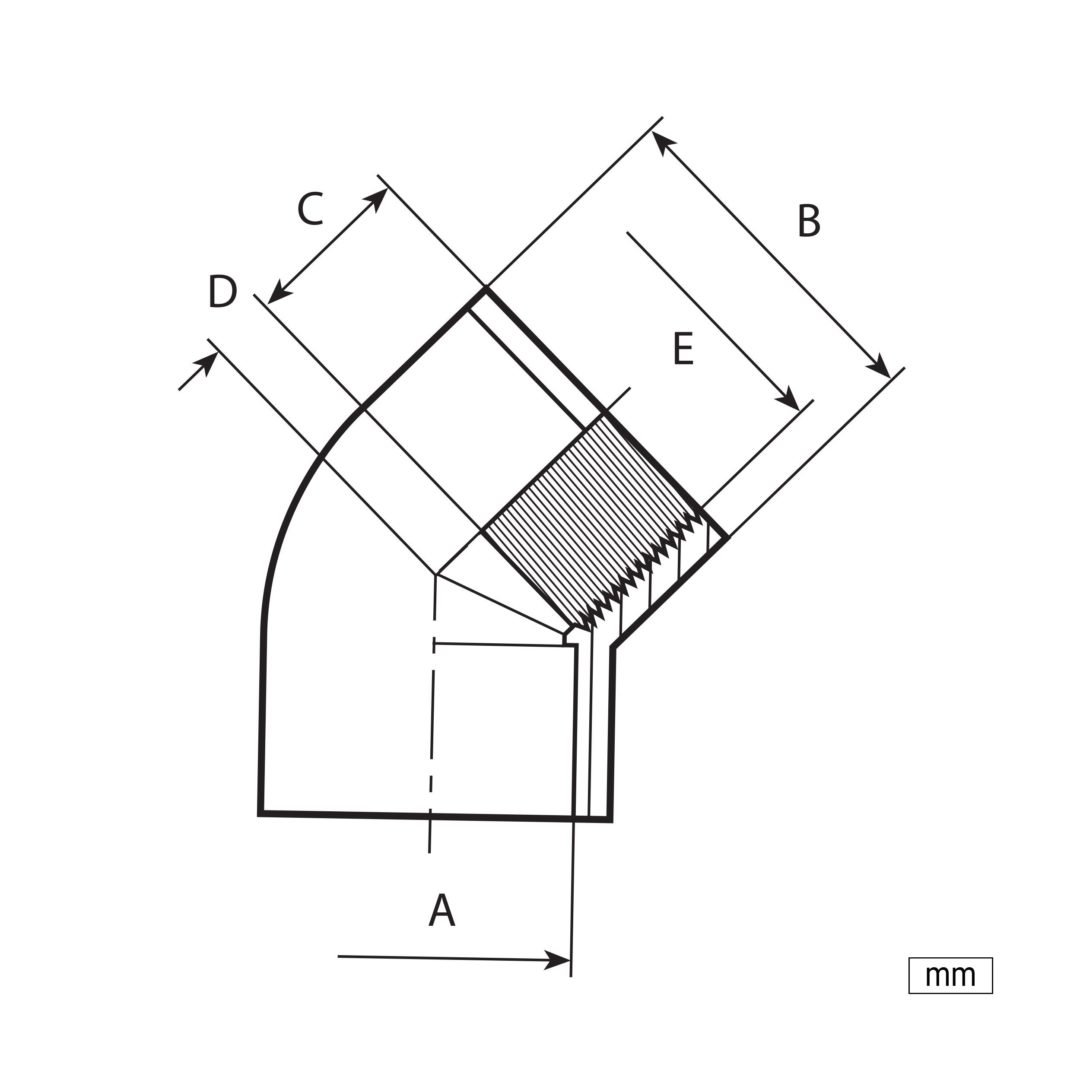

| Code | DN | A | B | C | D | Ε | Ø |
|---|---|---|---|---|---|---|---|
| 7302016 | 10 | 16 | 25 | 14 | 7 | ⅜” | 16−⅜” |
| 7302020 | 15 | 27 | 25 | 16 | 5 | ½” | 20−½” |
| 7302025 | 20 | 25 | 32 | 19 | 6 | ¾” | 25−¾” |
| 7302032 | 25 | 32 | 40 | 22 | 7,5 | 1” | 32−1” |
| 7302040 | 32 | 40 | 50 | 26 | 9,5 | 1¼” | 40−1¼” |
| 7302050 | 40 | 50 | 63 | 31 | 11,5 | 1½” | 50−1½” |
| 7302063 | 50 | 63 | 75 | 38 | 14 | 2” | 63−2” |
| 7302075 | 65 | 75 | 90 | 44 | 16,5 | 2½” | 75−2½” |
| 7302090 | 80 | 90 | 110 | 51 | 19,5 | 3” | 90−3” |
| 7302110 | 100 | 110 | 131 | 61 | 23 | 4” | 110−4” |
