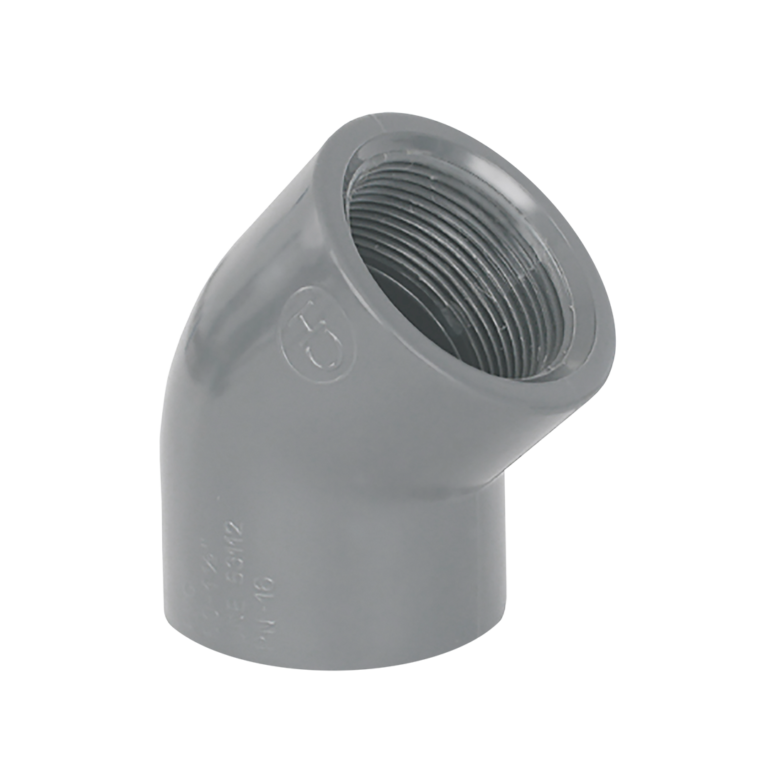

Elbow 45° with female thread
MODEL:
7202
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

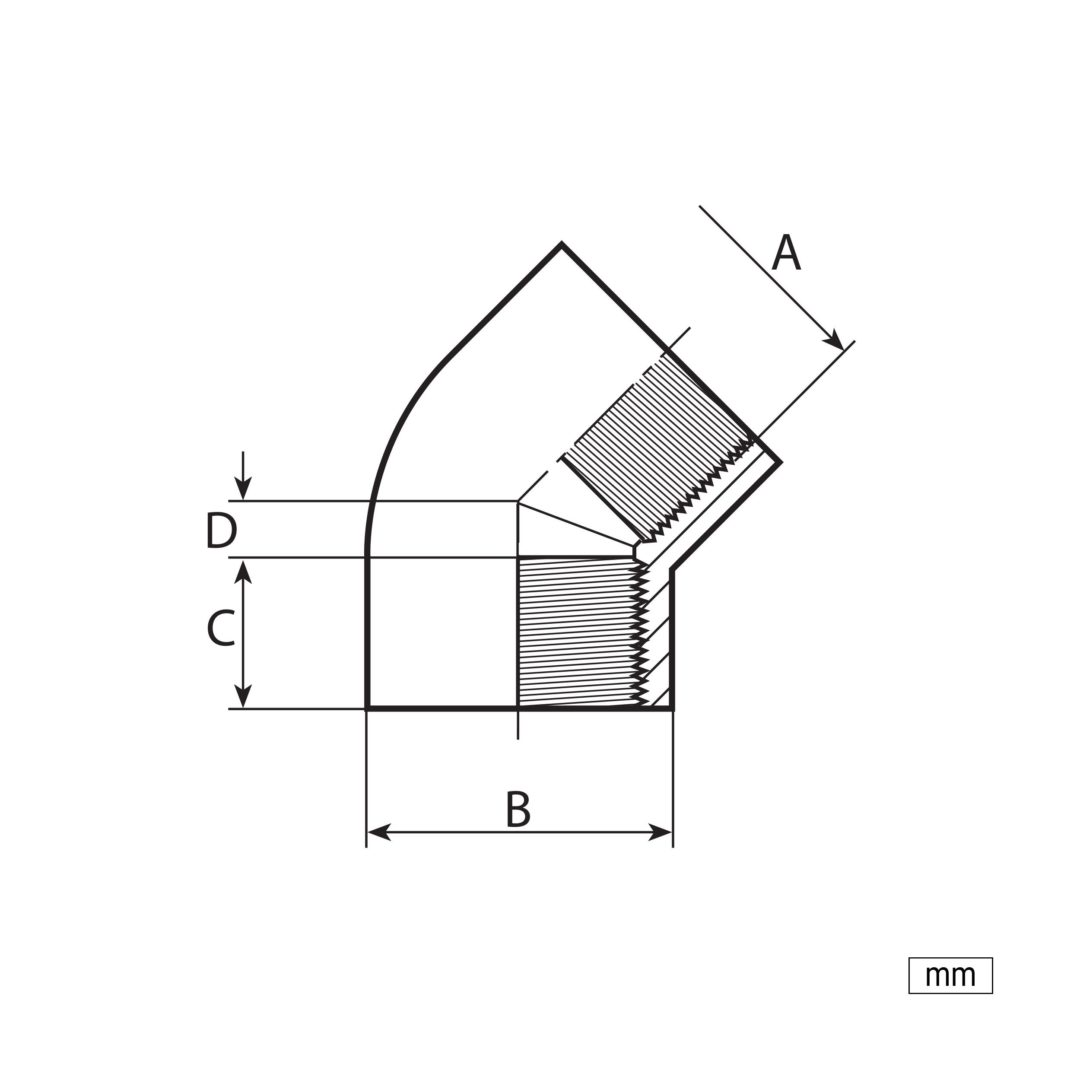

Dimensions & Performances
ZOOM IN
| Code | DN | A | B | C | D | Ø |
|---|---|---|---|---|---|---|
| 7202016 | 10 | ⅜” | 22 | 14 | 7 | ⅜” |
| 7202020 | 15 | ½” | 25 | 16 | 5 | ½” |
| 7202025 | 20 | ¾” | 32,5 | 19 | 6 | ¾” |
| 7202032 | 25 | 1” | 40 | 22 | 7,5 | 1” |
| 7202040 | 32 | 1¼” | 50 | 26 | 9,5 | 1¼” |
| 7202050 | 40 | 1½” | 63 | 31,5 | 11,5 | 1½” |
| 7202063 | 50 | 2” | 75 | 38 | 14 | 2” |
| 7202075 | 65 | 2½” | 90 | 44 | 16,5 | 2½” |
| 7202090 | 80 | 3” | 110 | 51 | 19,5 | 3” |
| 7202110 | 100 | 4” | 131 | 61 | 23 | 4” |
