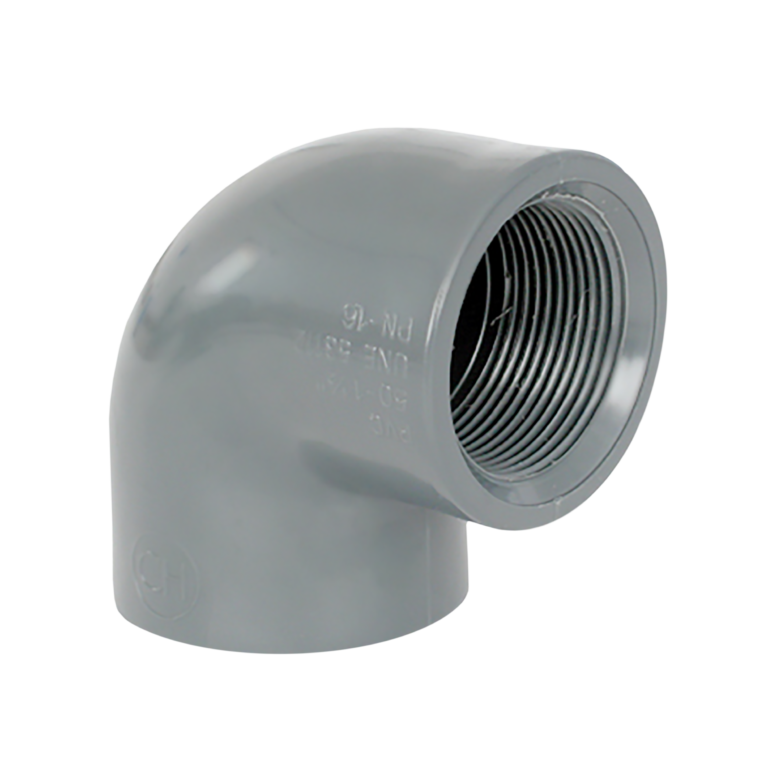

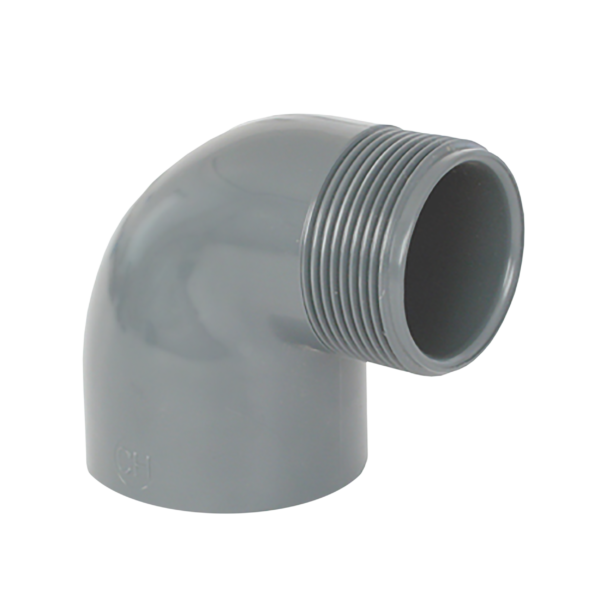

Elbow 90° mixed
MODEL:
7301
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

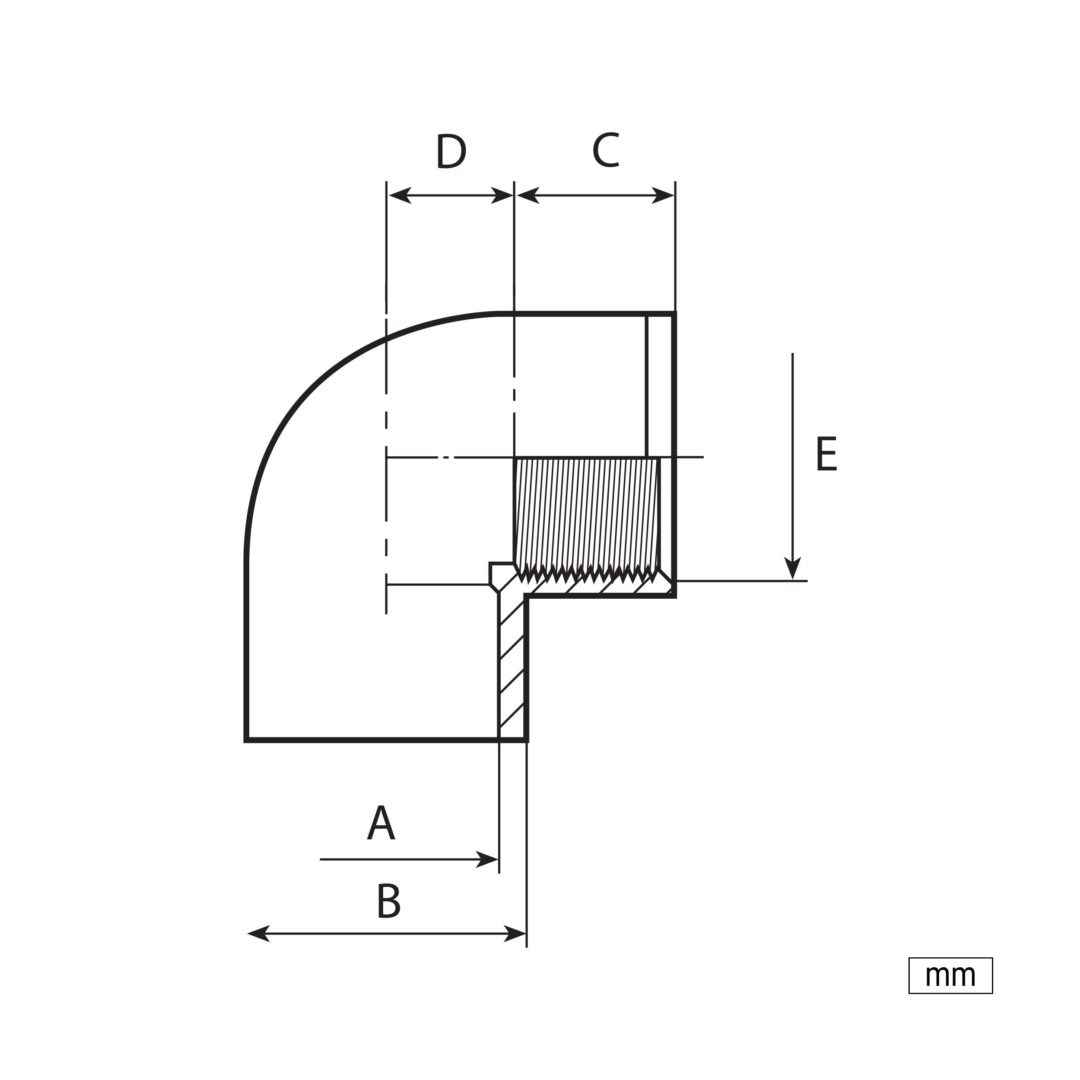

Dimensions & Performances
ZOOM IN
| Code | DN | A | B | C | D | e | Ø |
|---|---|---|---|---|---|---|---|
| 7301016 | 10 | 16 | 25 | 14 | 15,5 | ⅜” | 16−⅜” |
| 7301020 | 15 | 20 | 25 | 16 | 10 | ½” | 20−1½” |
| 7301025 | 20 | 25 | 32 | 19 | 14,75 | ¾” | 25−¾” |
| 7301032 | 25 | 32 | 40 | 22 | 18,5 | 1” | 32−1” |
| 7301040 | 32 | 40 | 50 | 26 | 23 | 1¼” | 40−1¼” |
| 7301050 | 40 | 50 | 63 | 31 | 27 | 1½” | 50−1½” |
| 7301063 | 50 | 63 | 75 | 38 | 32,5 | 2” | 63−2” |
| 7301064 | 50 | 63 | 75 | 38 | 32,5 | 1½” | 63−1½” |
| 7301075 | 65 | 75 | 90 | 44 | 40 | 2½” | 75−2½” |
| 7301090 | 80 | 90 | 110 | 51 | 48 | 3” | 90−3” |
| 7301110 | 100 | 110 | 131 | 61 | 58 | 4” | 110−4” |
