Extended skimmer for liner
MODEL:
ELPS-220/ECO LINE
MANUFACTURER:

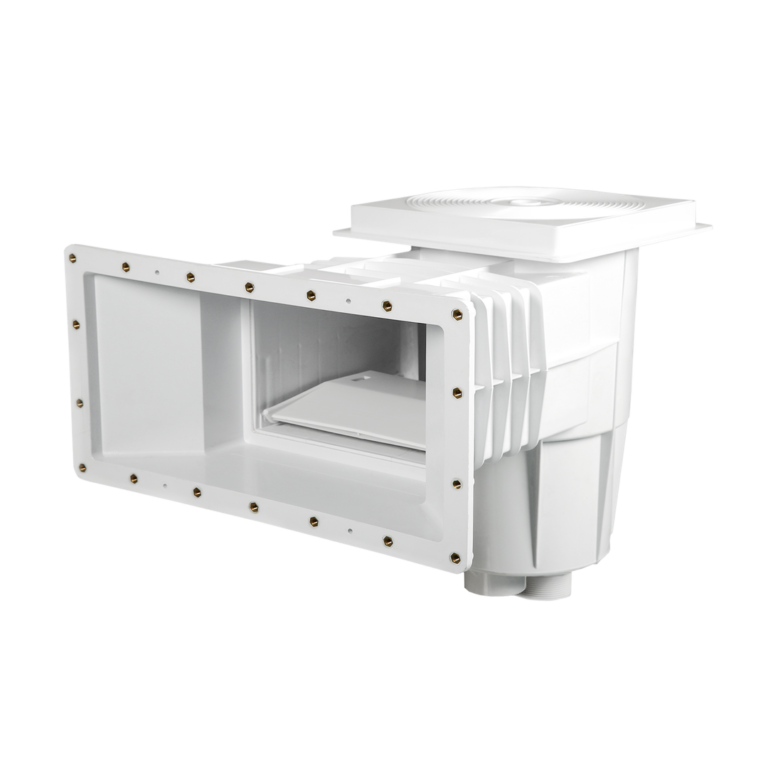

Skimmer is made of white ABS plastic.
It offers a quiet surface skimming in maximum performance. It has parallel reinforcing grooves for extra durability. It also bears a safety lock-down lid and an extra large basket which self-blocks into the skimmer’s body. A basket handle ensures easy removal of the basket. It is provided with a square cover and rubber seals that clip on the flange. The flap stopper ensures a silent flap operation.
Working site protection stickers are delivered with each unit.
Designed for liner pools.
Specifications
- Material: White ABS plastic.
- Neck: 227.34mm.
- UV protection.
- Extra large basket with the self-blocking system into the skimmer body.
- Safety lid.

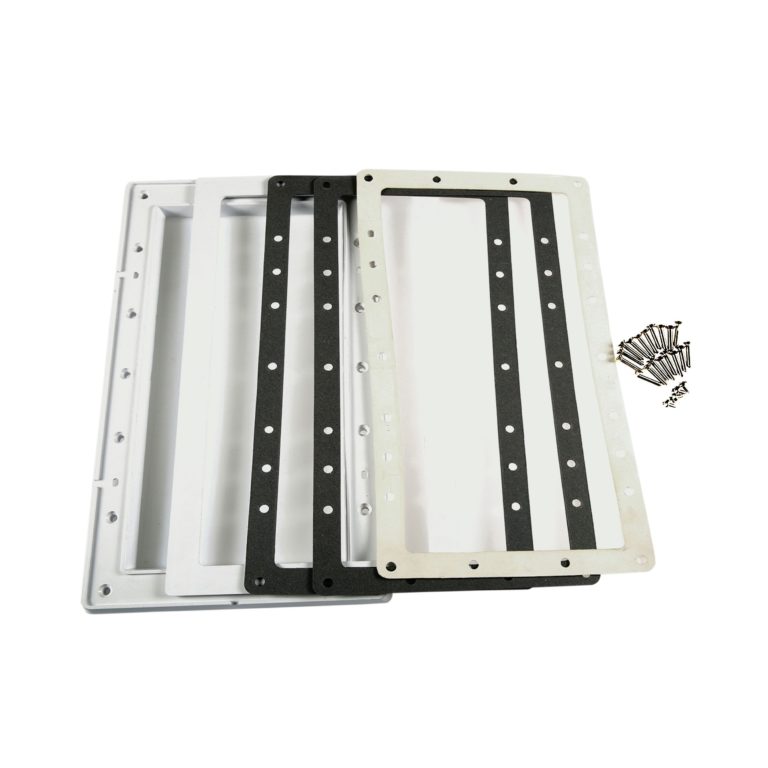

- Flange face plate.
- Flap stopper.
- 2 side exits in Ø 63mm (one for the level regulator – one for the skimmer’s blocking against the wall).
- Vertical exit double thread (1½”/2”).
- Flow rate: 15m³/h – 17m³/h.
- Flow regulator valve.
- Overflow in 50mm for a greater flow rate.
- Guide-stickers.

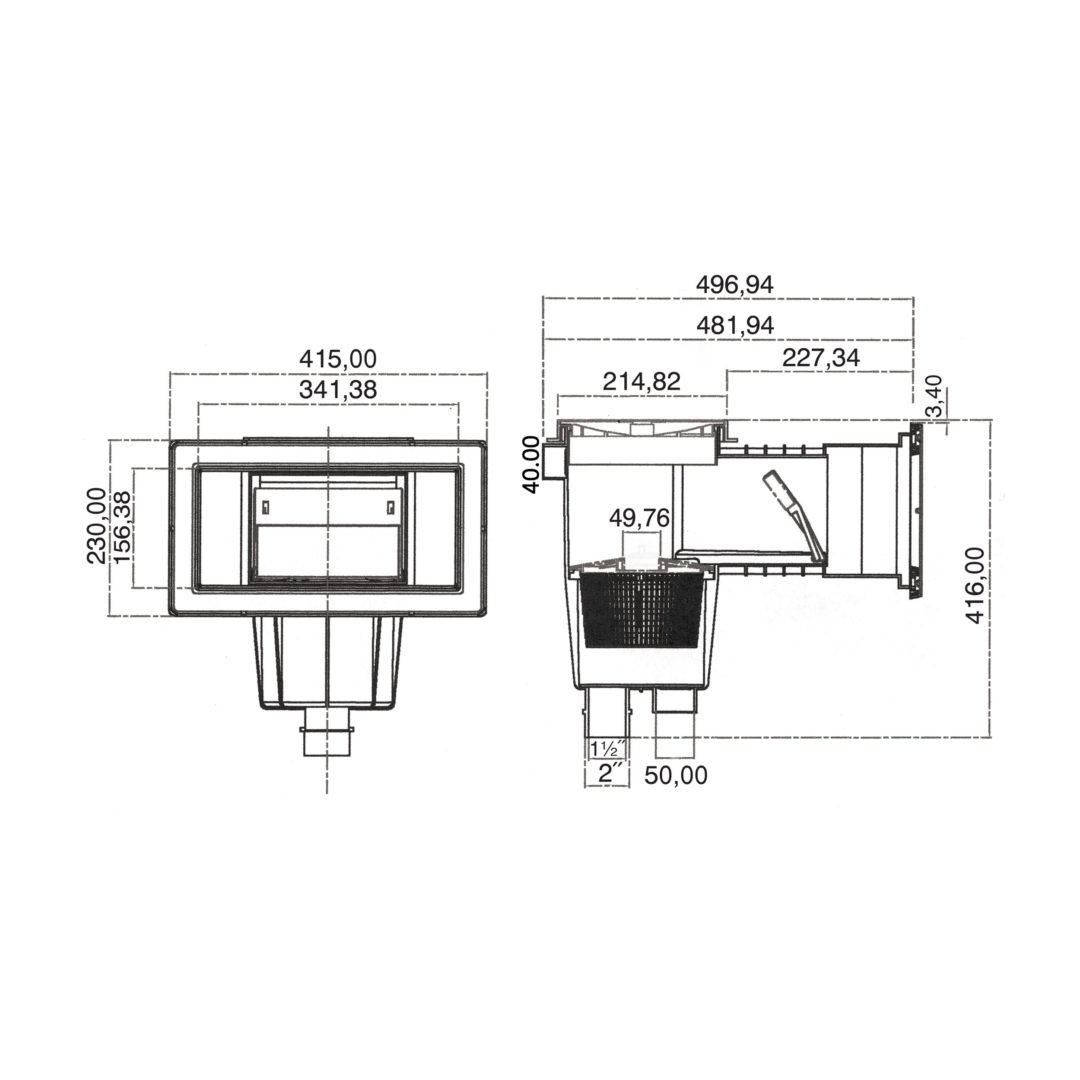

Dimensions & Performances
