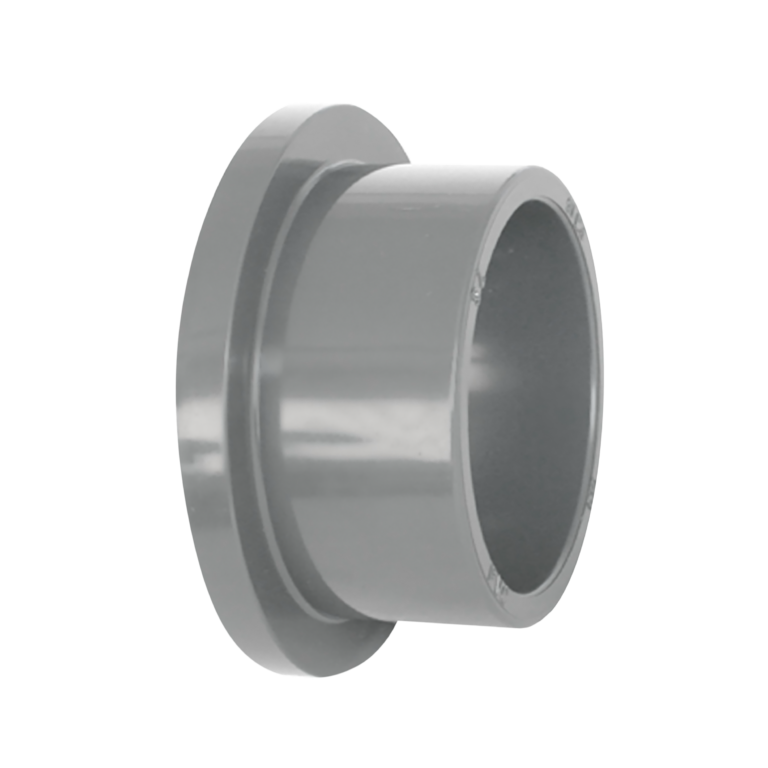

Flange adaptor
MODEL:
7121
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

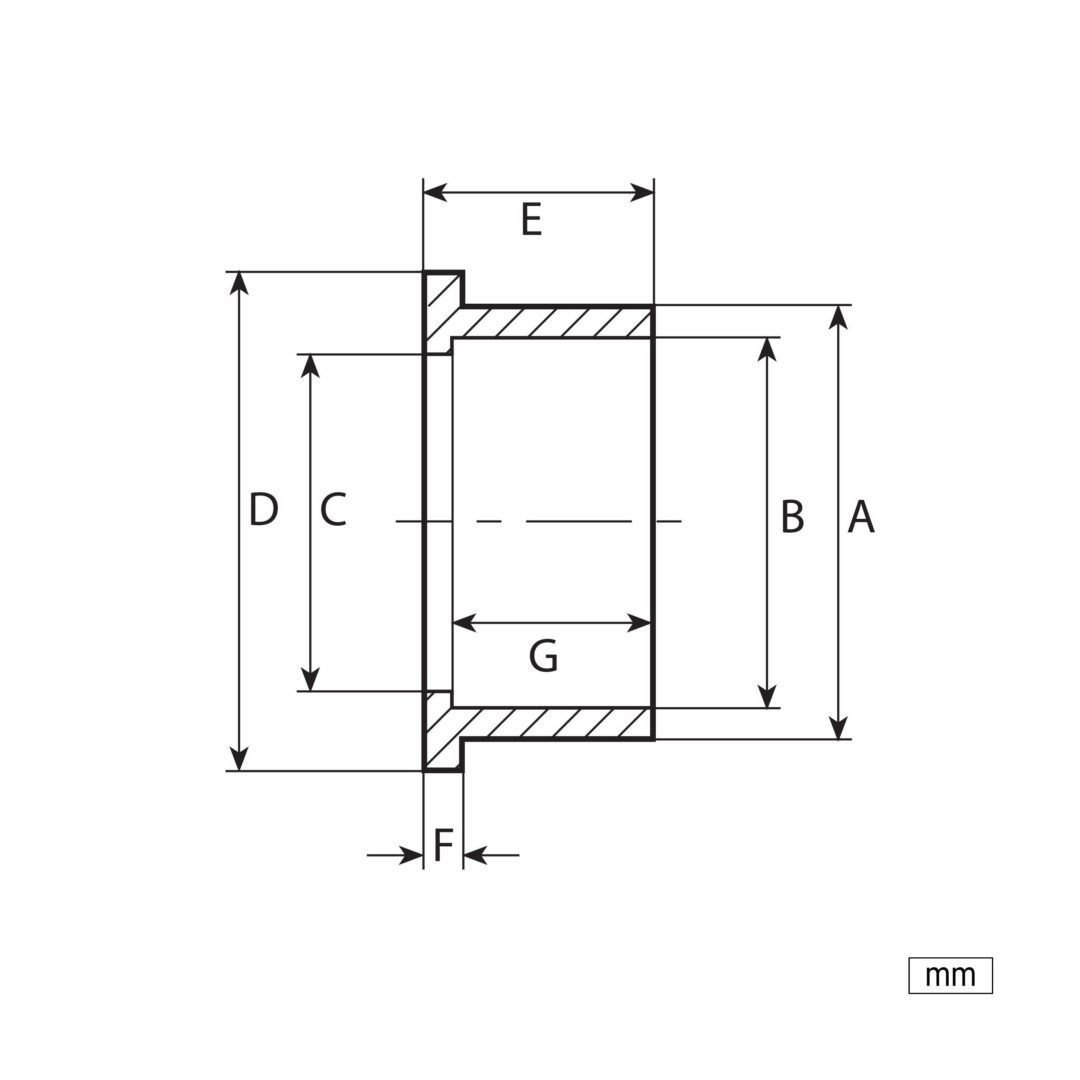

Dimensions & Performances
ZOOM IN
| Code | DN | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| 7121020 | 15 | 27 | 20 | 15 | 34 | 19 | 6 | 16 |
| 7121025 | 20 | 33 | 25 | 20 | 41 | 22 | 7 | 19 |
| 7121032 | 25 | 41 | 32 | 25 | 50 | 25 | 7 | 22 |
| 7121040 | 32 | 50 | 40 | 36 | 61 | 29 | 8 | 26 |
| 7121050 | 40 | 61 | 50 | 40 | 73 | 34 | 8 | 31 |
| 7121063 | 50 | 76 | 63 | 50 | 90 | 41 | 9 | 38 |
| 7121075 | 65 | 90 | 75 | 67 | 109 | 50 | 10 | 44 |
| 7121090 | 80 | 110 | 90 | 81 | 130 | 60 | 11 | 51 |
| 7121110 | 100 | 130 | 110 | 103 | 150 | 67 | 12 | 61 |
| 7121125 | 110 | 147 | 125 | 119 | 170 | 75 | 13 | 69 |
| 7121140 | 125 | 165 | 140 | 132 | 188 | 80 | 14 | 76 |
| 7121160 | 150 | 188 | 160 | 150 | 213 | 90 | 16 | 86 |
| 7121200 | 175 | 231 | 200 | 196 | 255 | 112 | 19 | 104 |
| 7121225 | 200 | 248 | 225 | 200 | 274 | 125 | 25 | 119 |
| 7121250 | 225 | 282 | 250 | 244 | 328 | 140 | 25 | 131 |
| 7121315 | 300 | 342 | 315 | 300 | 378 | 173 | 30 | 164 |
| 7121355 | − | − | − | − | − | − | − | − |
| 7121400 (PN4) | − | − | − | − | − | − | − | − |
| 7121450 | − | − | − | − | − | − | − | − |
| 7121500 (PN4) | − | − | − | − | − | − | − | − |
