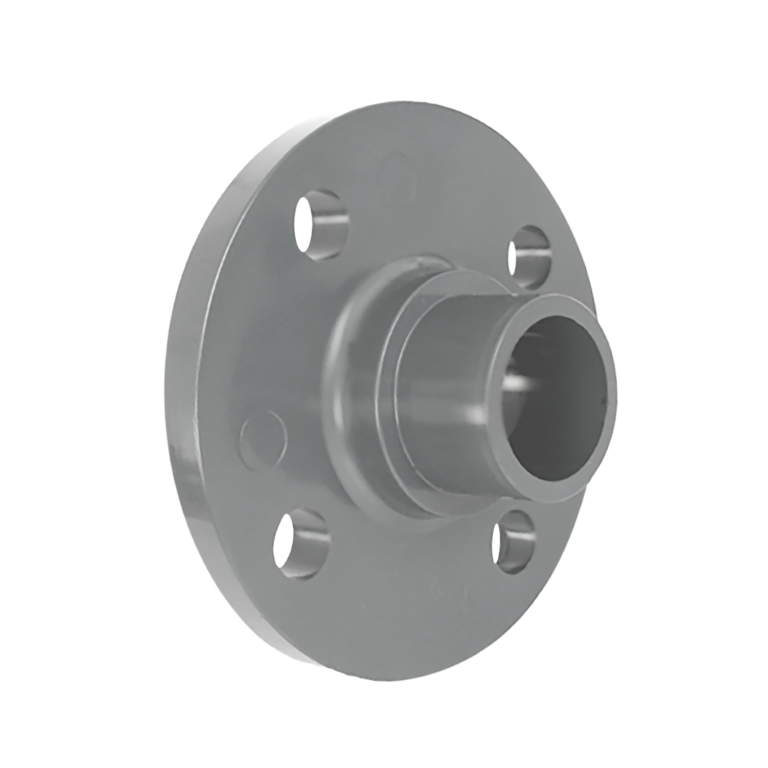

Male fixed flange
MODEL:
7120
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

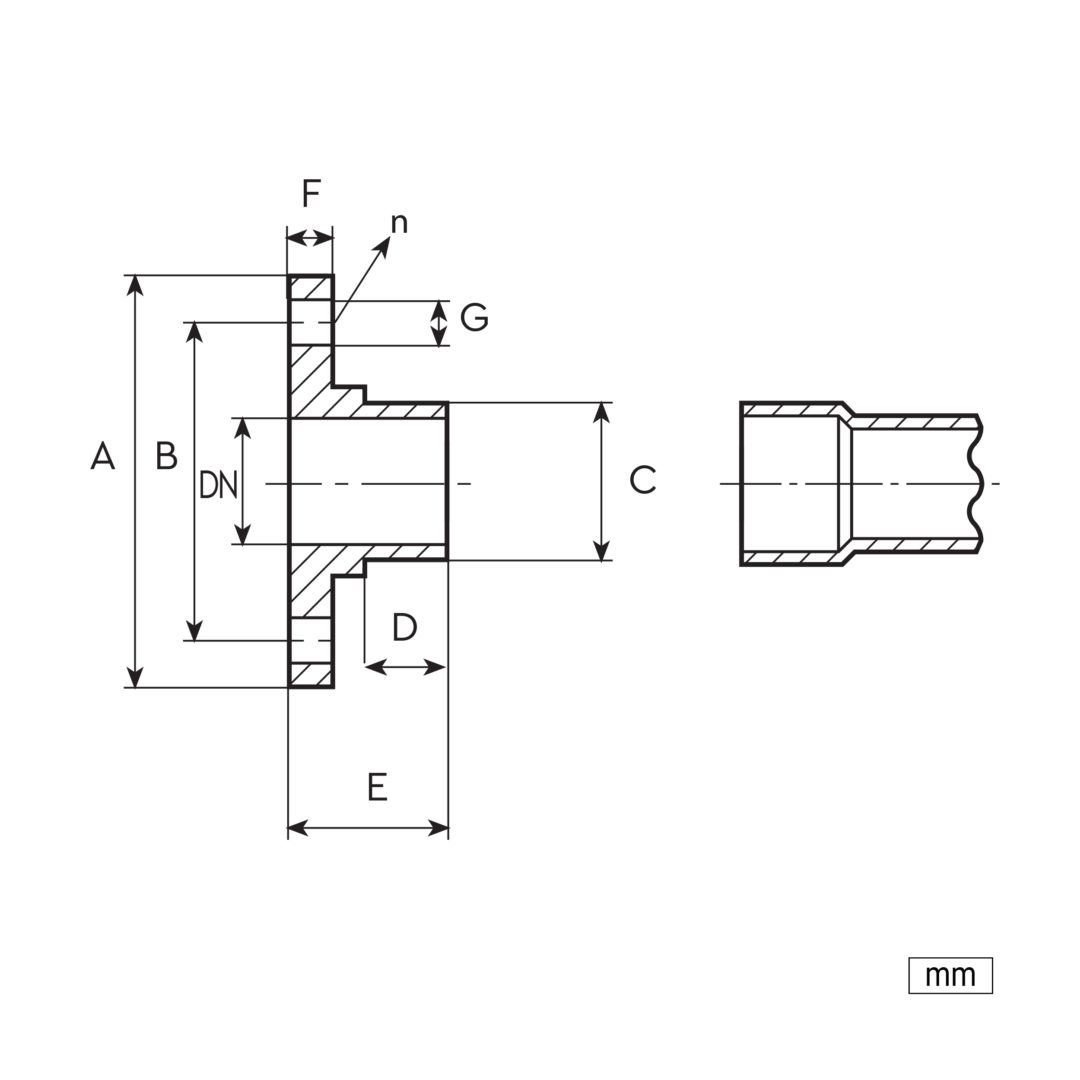

Dimensions & Performances
ZOOM IN
| Code | DN | A | B | C | D | E | F | G | n | Ø |
|---|---|---|---|---|---|---|---|---|---|---|
| 7120020 | 5 | 97 | 65 | 20 | 15 | 30 | 10 | 14 | 4 | 20 |
| 7120025 | 20 | 106 | 75 | 25 | 17 | 38 | 15 | 14 | 4 | 25 |
| 7120032 | 25 | 116 | 85 | 32 | 21 | 39 | 15 | 14 | 4 | 32 |
| 7120040 | 32 | 140 | 100 | 40 | 25 | 48 | 15 | 17 | 4 | 40 |
| 7120050 | 40 | 149 | 110 | 50 | 30 | 55 | 13 | 17 | 4 | 50 |
| 7120063 | 50 | 164 | 125 | 63 | 37 | 63 | 15 | 17 | 4 | 63 |
| 7120075 | 65 | 185 | 145 | 75 | 43 | 72 | 17 | 17 | 4 | 75 |
| 7120090 | 80 | 200 | 160 | 90 | 50 | 79 | 19 | 17 | 8 | 90 |
| 7120110 | 100 | 221 | 180 | 110 | 58 | 92 | 19 | 17 | 8 | 110 |
