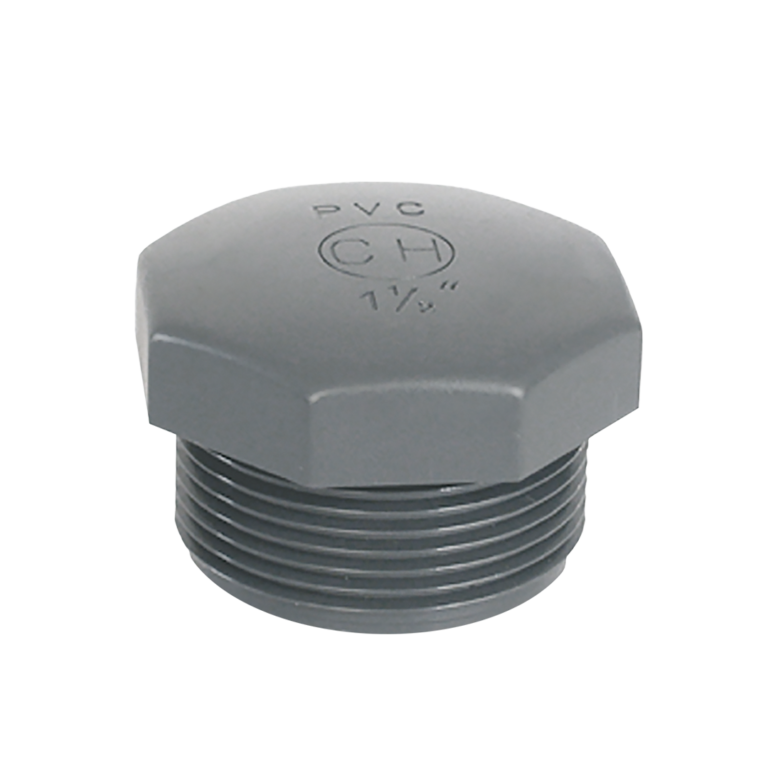

Plug with male thread
MODEL:
7207
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

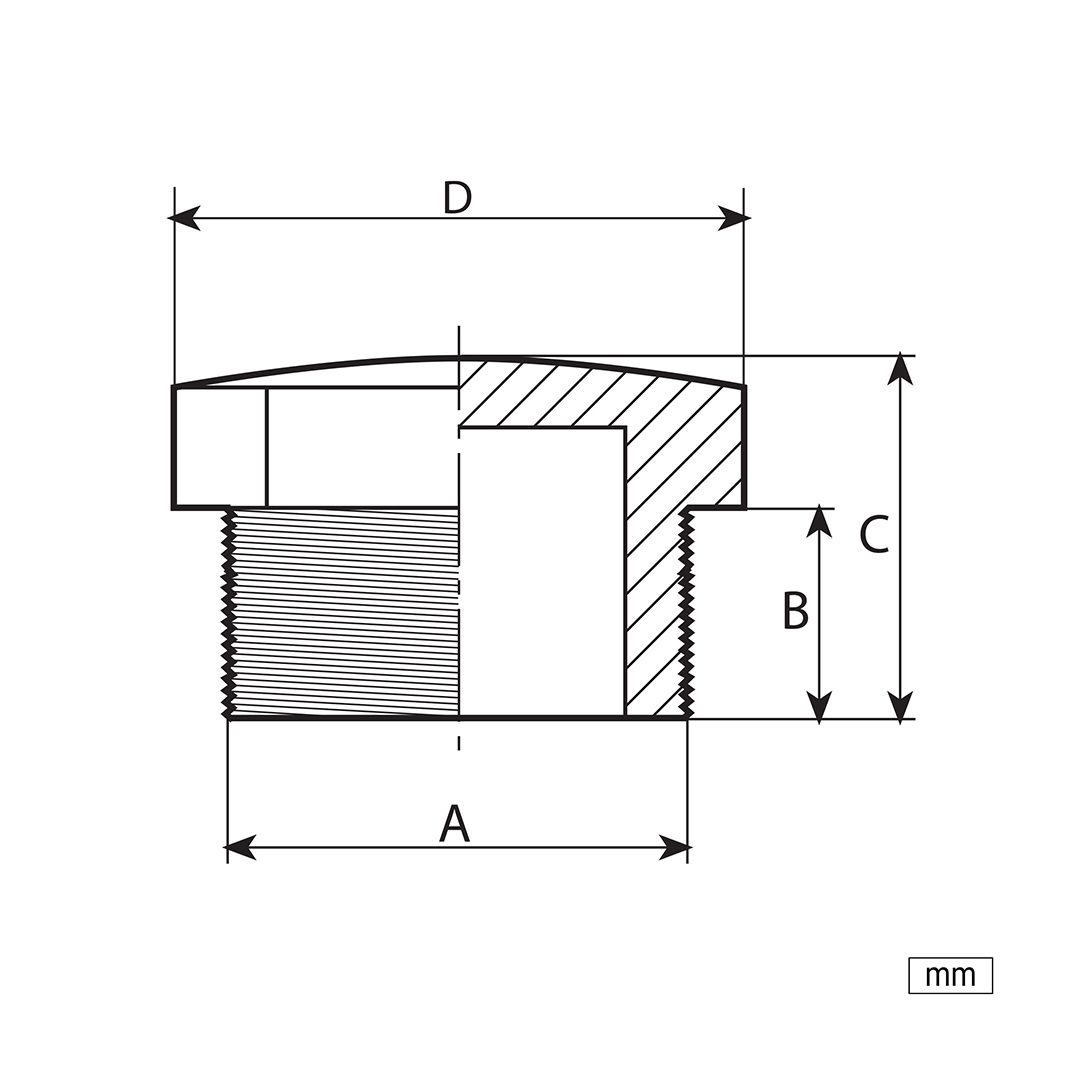

Dimensions & Performances
ZOOM IN
| Code | Ø | A | B | C | D |
|---|---|---|---|---|---|
| 7207016 | 3/8” | 3/8” | 13 | 20 | 24 |
| 7207020 | 1/2” | 1/2” | 14 | 24 | 27 |
| 7207025 | 3/4” | 3/4” | 16 | 26 | 32 |
| 7207032 | 1” | 1” | 19 | 31 | 38 |
| 7207040 | 1¼” | 1¼” | 21 | 34 | 46 |
| 7207050 | 1½” | 1½” | 21 | 34 | 55 |
| 7207063 | 2” | 2” | 26 | 39 | 65 |
| 7207075 | 2½” | 2½” | 30 | 50 | 85 |
| 7207090 | 3” | 3” | 33 | 59 | 100 |
| 7207110 | 4” | 4” | 38 | 68 | 130 |
Catalogue
