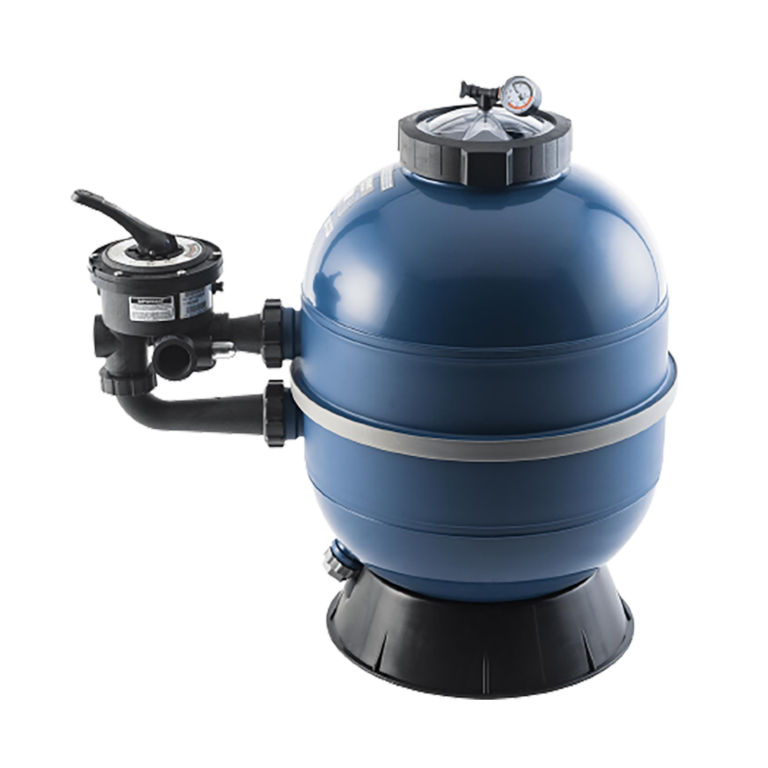

Polymeric material sand filter
MODEL:
GLV
MANUFACTURER:
Kripsol’s new filters GLV series, which has replaced the GRANADA series, are the smart solution for every pool!
Includes 6-way valve, unions and pressure gauge.
Wide threaded opening Ø 180mm, to facilitate maintenance operations.
For pools up to 85m³.
Specifications
- Operating pressure: 0.5-1.3kg/cm².
- Max pressure: 2.0 bar.
- Max water temperature: 50°C.
- Granulometry of filter material: 0.4 – 0.8mm.
- Selector valve: Included.

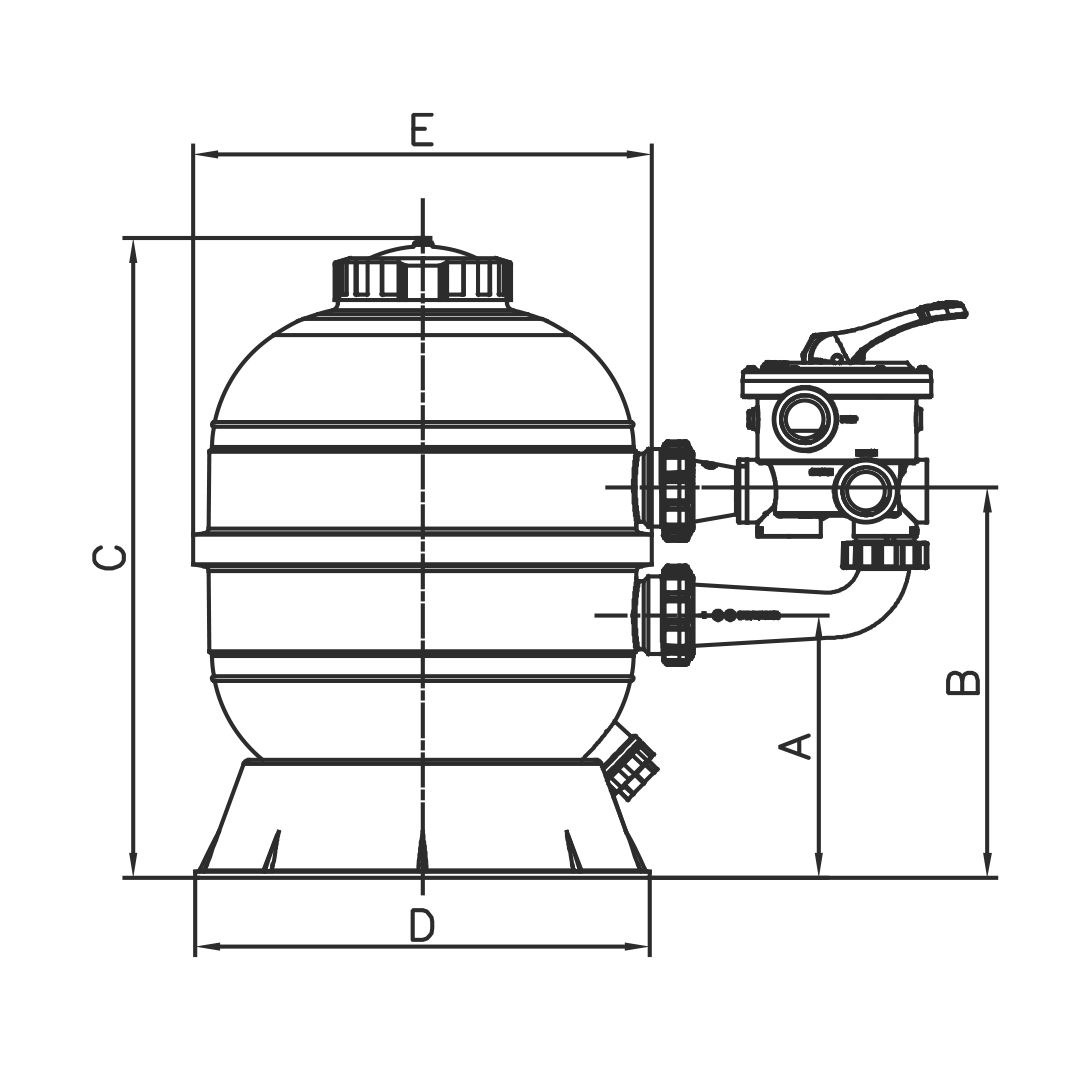

Dimensions & Performances
ZOOM IN
| Model | Diameter Ø (mm) | Α (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|
| GLV 400 | 400 | 256 | 381 | 641 | 458 | 453 |
| GLV 500 | 500 | 335 | 460 | 798 | 458 | 553 |
| GLV 600 | 600 | 381 | 506 | 881 | 458 | 653 |
