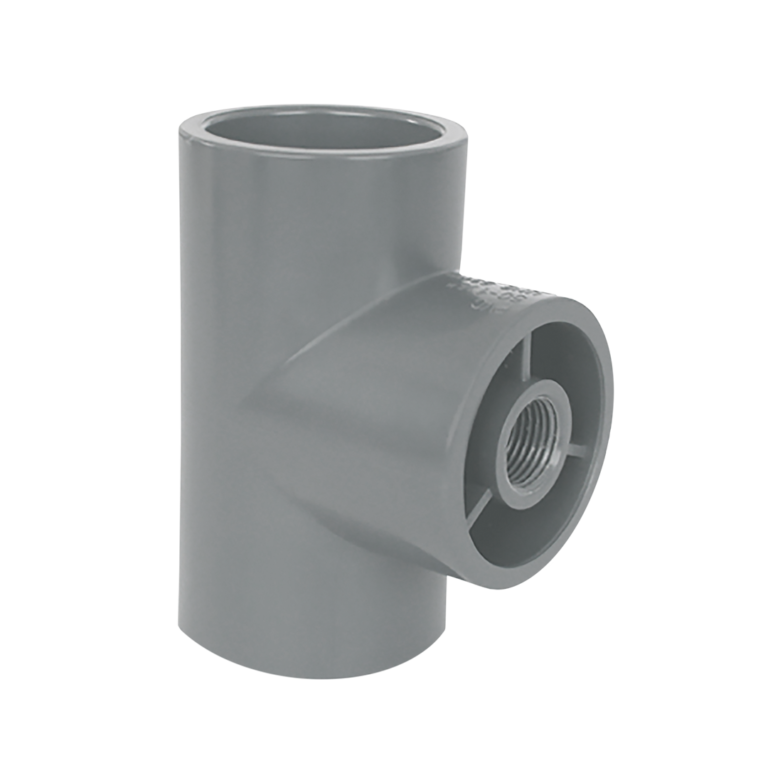

Reducing tee 90° mixed

MODEL: 7304

MANUFACTURER:

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10.
Threaded fittings:
All sizes PN 10.

Assembly:

The use of PTFE film is recommended for threaded fittings.
The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

ZOOM IN

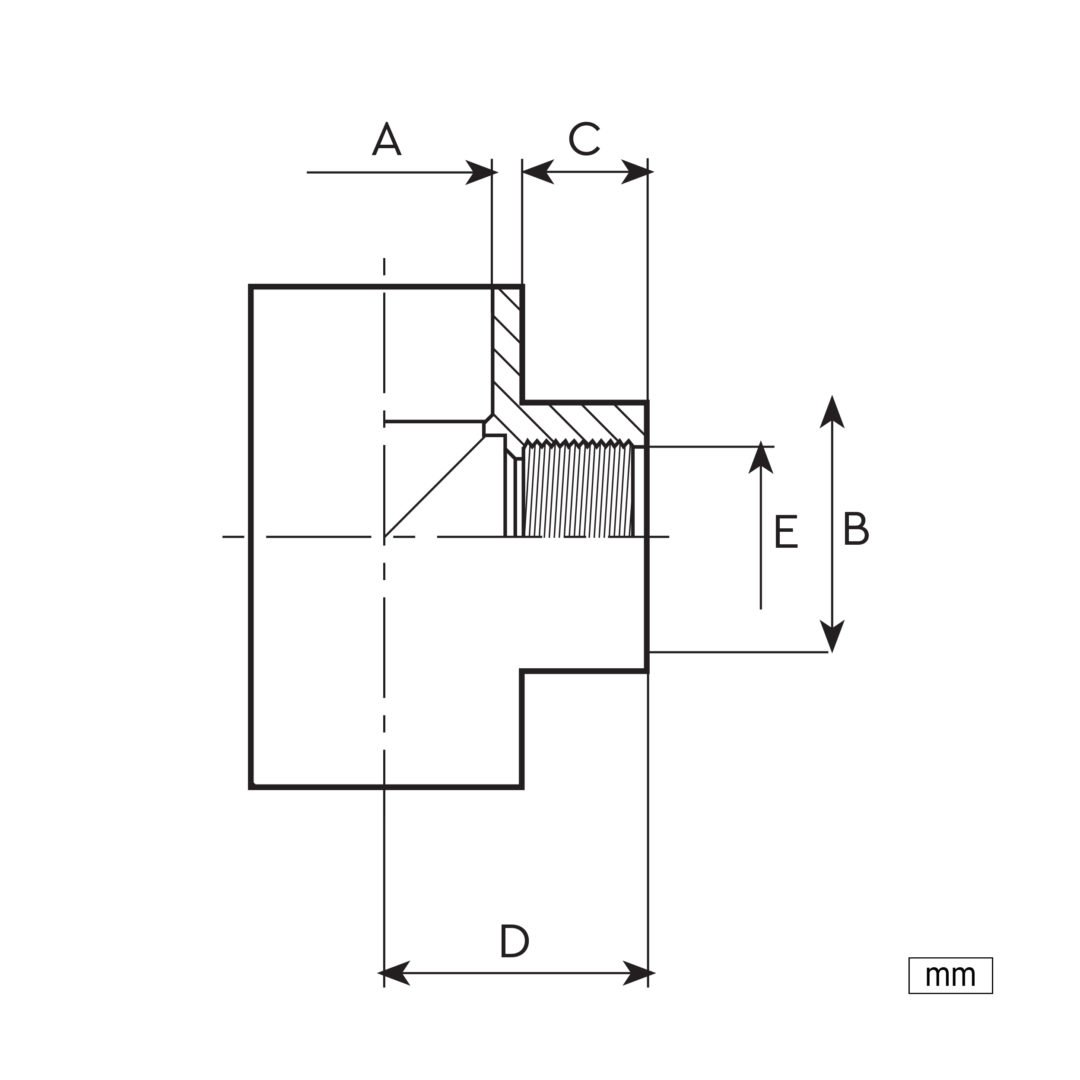

Code	DN	A	B	C	D	Ε	Ø
7304020	15−10	20	25	16	27	⅜”	20−⅜”
7304025	20−10	25	32	19	33	⅜”	25−⅜”
7304026	20−15	25	32	19	35	½”	25−½”
7304032	25−15	32	40	22	39	½”	32−½”
7304033	25−20	32	40	22	39	¾”	32−¾”
7304040	32−15	40	50	26	49	½”	40−½”
7304041	32−20	40	50	26	49	¾”	40−¾”
7304042	32−25	40	50	26	49	1”	40−1”
7304050	40−15	50	63	31	59	½”	50−½”
7304051	40−20	50	63	31	59	¾”	50−¾”
7304052	40−25	50	63	31	59	1”	50−1”
7304053	40−32	50	63	31	59	1¼”	50−1¼”
7304061	50−15	63	75	42	73	½”	63−½”
7304062	50−20	63	75	42	73	¾”	63−¾”
7304063	50−25	63	75	38	73	1”	63−1”
7304064	50−32	63	75	38	73	1¼”	63−1¼”
7304065	50−40	63	75	38	73	1½”	63−1½”
7304072	65−25	75	90	48	84	1”	75−1”
7304073	65−32	75	90	48	84	1¼”	75−1¼”
7304074	65−40	75	90	48	84	1½”	75−1½”
7304075	65−50	75	90	44	84	2”	75−2”
7304087	80−32	90	110	54	99	1¼”	90−1¼”
7304088	80−40	90	110	54	99	1½”	90−1½”
7304089	80−50	90	110	54	99	2”	90−2”
7304090	80−65	90	110	51	99	2½”	90−2½”
