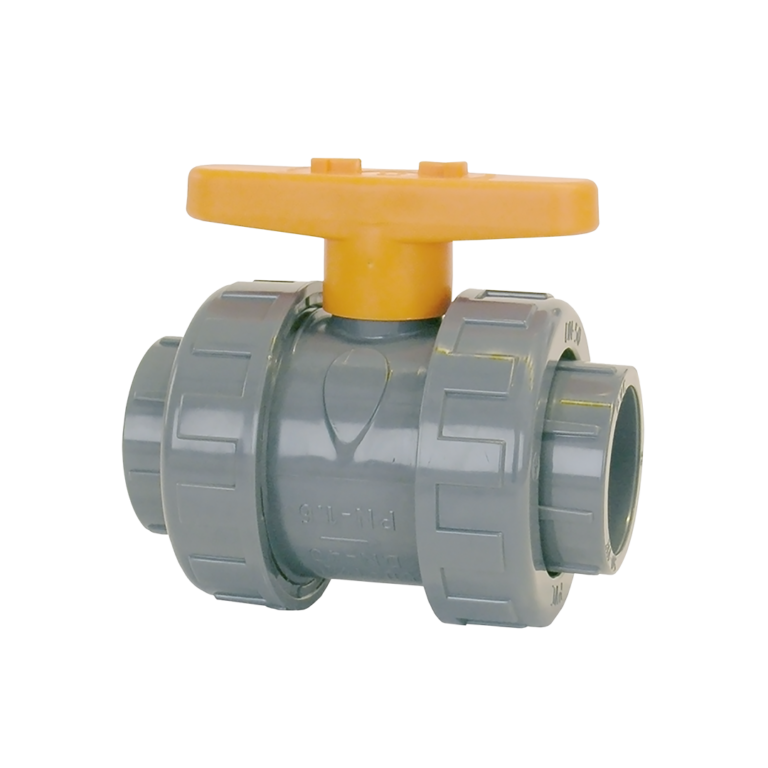

Safeblock ball valve, type CR, PN16
MODEL:
1051
MANUFACTURER:
Seats: P.T.F.E. | O−rings: EPDM
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

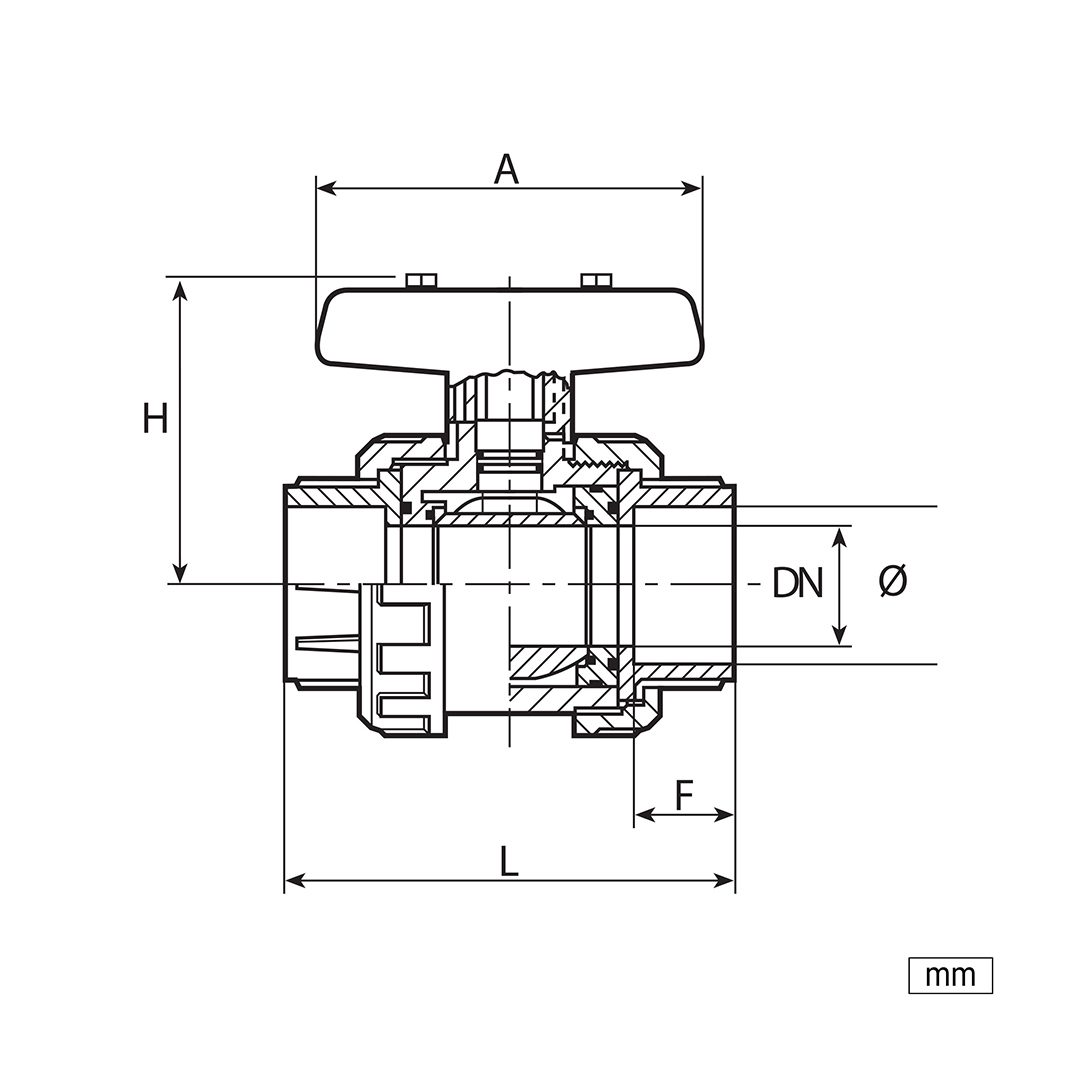

Dimensions & Performances
ZOOM IN
| Code | DN | A | F | H | L | Ø |
|---|---|---|---|---|---|---|
| 1051016 | 10 | 85 | 14 | 56 | 95 | 16 |
| 1051020 | 15 | 85 | 16 | 56 | 95 | 20 |
| 1051025 | 20 | 85 | 19 | 58 | 104 | 25 |
| 1051032 | 25 | 99 | 22 | 68 | 116 | 32 |
| 1051040 | 32 | 99 | 26 | 72 | 133 | 40 |
| 1051050 | 40 | 128 | 31 | 89 | 149 | 50 |
| 1051063 | 50 | 128 | 38 | 97 | 167 | 63 |
| 1051075 (PN10) | 65 | 184 | 44 | 129 | 225 | 75 |
| 1051091 (PN10) | 80 | 184 | 51 | 140 | 246 | 90 |
| 1051110 (PN10) | 100 | 275 | 61 | 174 | 309 | 110 |
| 1051125 (PN10) | 100 | 275 | 61 | 174 | 309 | 125 |
