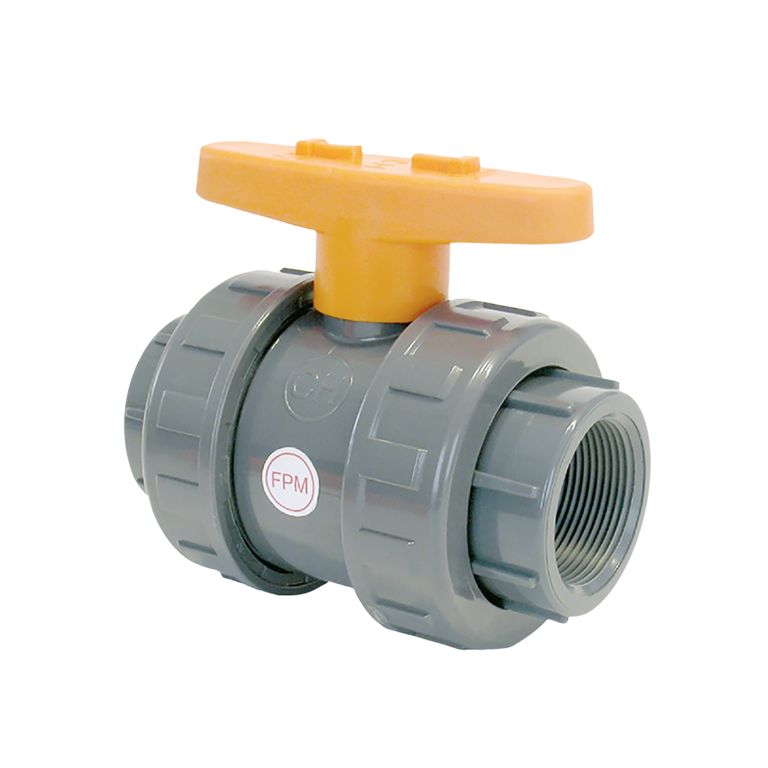

Safeblock ball valve with BSP female thread, type CR, PN10

Seats: P.T.F.E. | O−rings: FPM

Material: Unplasticised polyvinyl chloride (PVC-U).

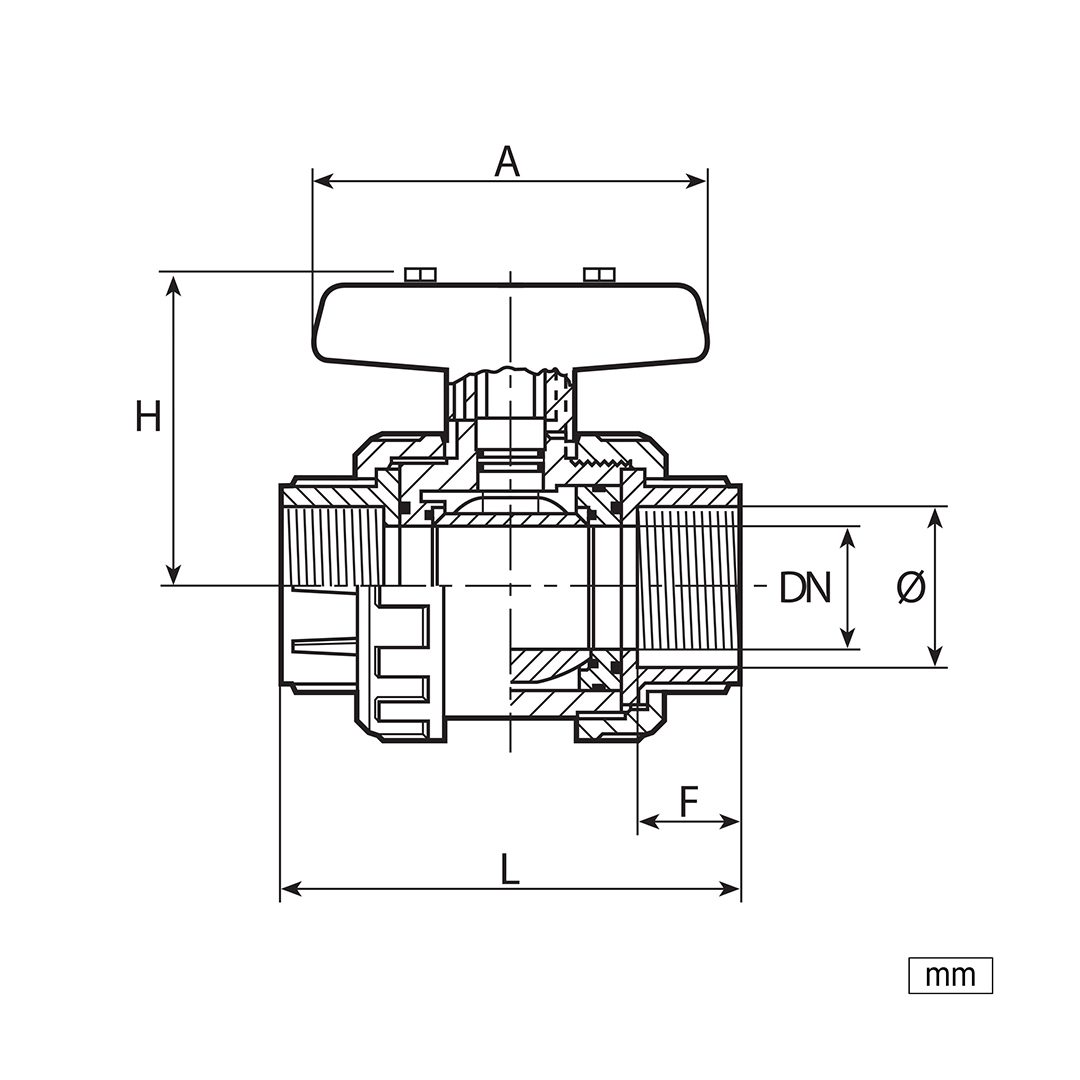

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

• Cement joint fittings:
  From 16mm to 140mm = PN16.
  From 160mm to 315mm = PN10.
• Threaded fittings:
  All sizes PN10.

Assembly:

• The use of PTFE film is recommended for threaded fittings.
• The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
