Self-priming pump

Name: Self-priming pump
SKU: LIFE
Price: 1.00 EUR
Availability: InStock

MODEL: LIFE

MANUFACTURER:

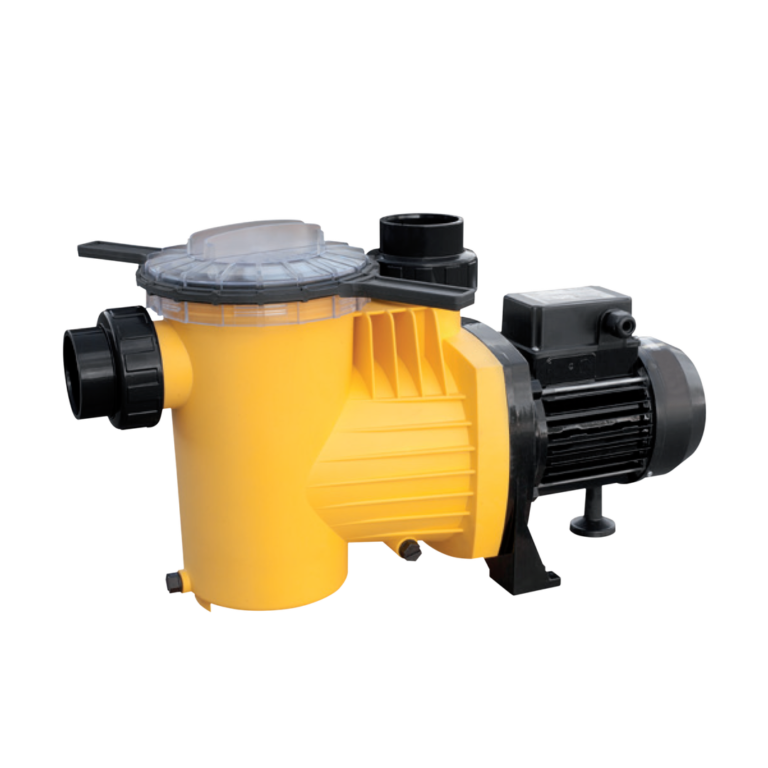

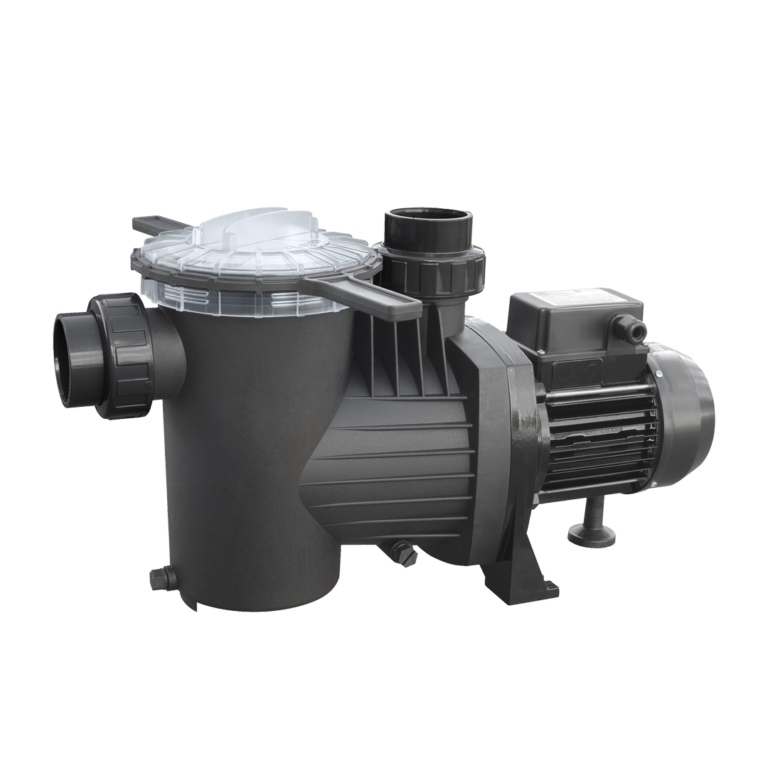

Electrical self-priming pump for pools with large pre-filter, which, together with its excellent hydraulic performance, gives a very large filtering capacity.

A filter with a transparent, polycarbonate lid that easily allows inspection of the interior of the pre-filter sieve.

No possible electrical contact with the water as no part of the motor is open to it. Includes a standard key for the effortless opening of the pre-filter lid.

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

Pump body, pump body lid, diffuser and opening key in polypropylene, resistant to the chemical products in pools and reinforced with glass fibre, guaranteeing excellent duration.
Shaft in stainless steel AISI-316. Noryl impeller.
Mechanical seal in stainless steel AISI-316.
Bolts in AISI 304 Stainless Steel.
The pumps allow two possible connections:
– Female thread of 2”.
– Connection for PVC pipe Ø63 to glue.

Standard asynchronous motor, sealed from external ventilation.
Protection IP-55.
2850 rpm, 50-60Hz.
Class F insulation.
Motor bearings are greased for life and selected to ensure the long duration and silent working.
Maximum water temperature: +40ºC.

ZOOM IN

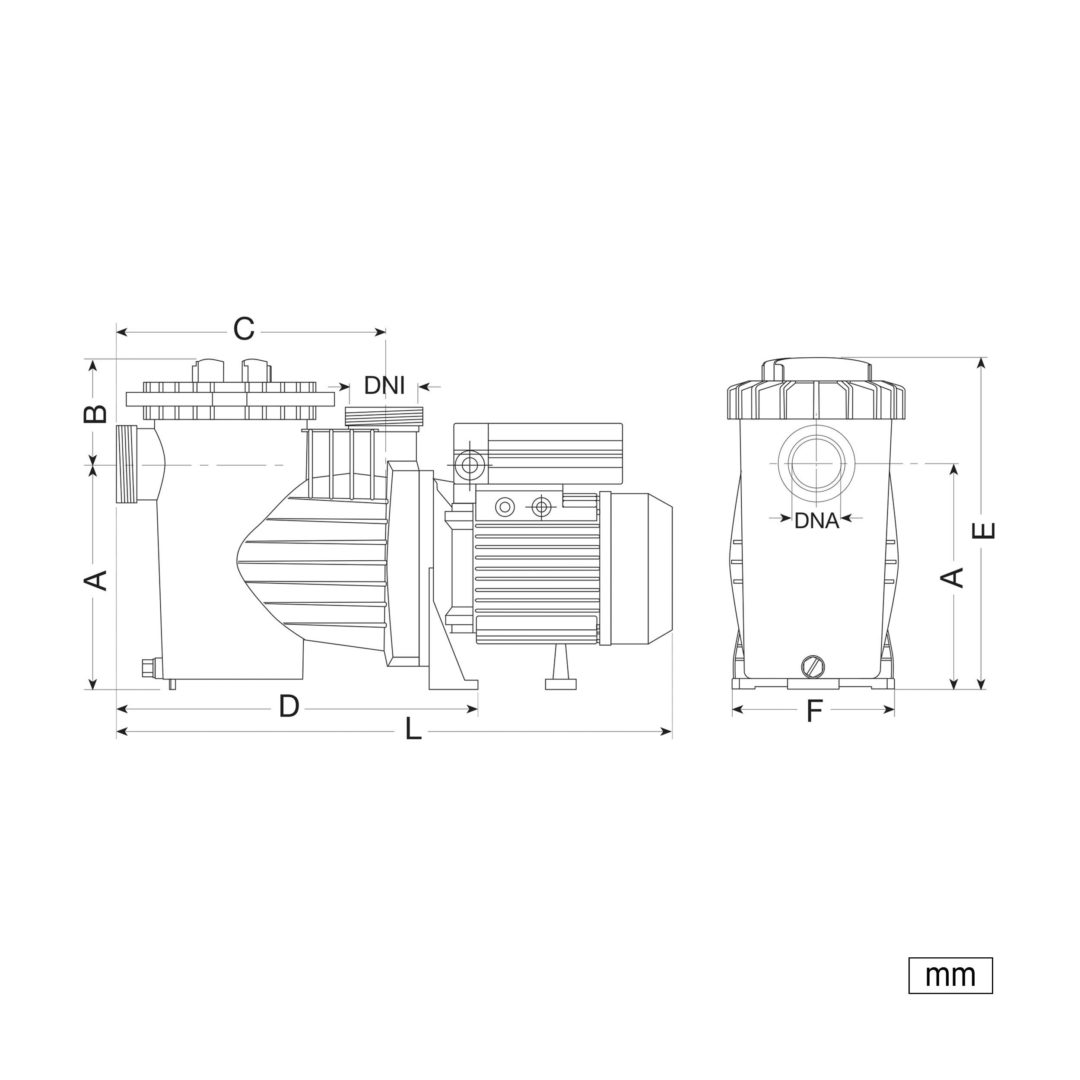

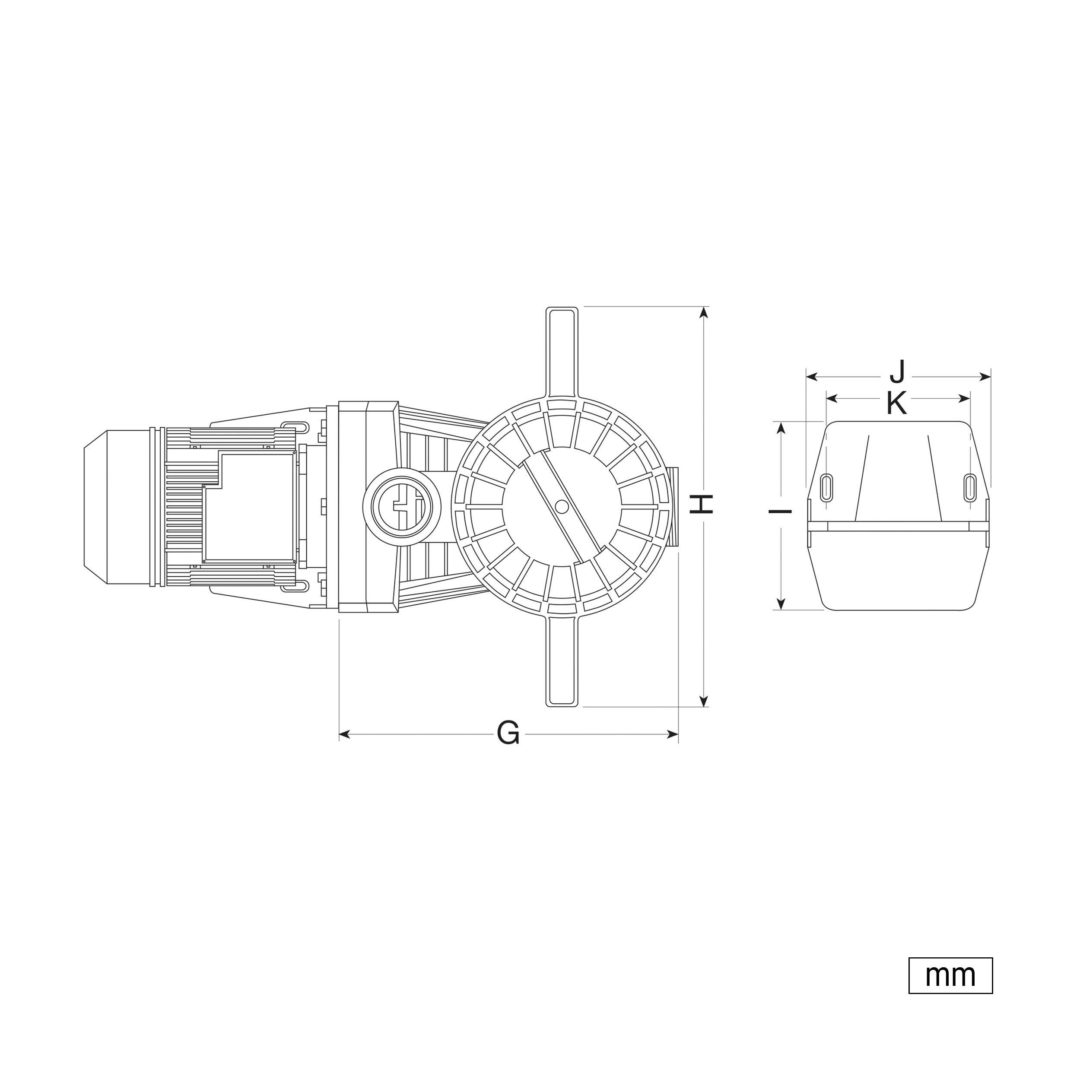

Model	HP	Α (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	I (mm)	J (mm)	K (mm)	L (mm)	L1 (mm)	A1 (mm)	H1 (mm)
LIFE-050	0,50 (1-phase)	216	109	265	370	325	206	325	400	220	205	160	550	630	230	360
LIFE-051	0,50 (3-phase)	216	109	265	370	325	206	325	400	220	205	160	550	630	230	360
LIFE-075	0,75 (1-phase)	216	109	265	370	325	206	325	400	220	205	160	550	630	230	360
LIFE-076	0,75 (3-phase)	216	109	265	370	325	206	325	400	220	205	160	550	630	230	360
LIFE-100	1,00 (1-phase)	216	109	265	370	325	206	325	400	220	205	160	550	630	230	360
LIFE-101	1,00 (3-phase)	216	109	265	370	325	206	325	400	220	205	160	550	630	230	360
LIFE-150	1,50 (1-phase)	216	109	265	370	325	206	325	400	220	205	160	550	630	230	360
LIFE-151	1,50 (3-phase)	216	109	265	370	325	206	325	400	220	205	160	550	630	230	360
LIFE-200	2,00 (1-phase)	216	109	265	370	325	206	325	400	220	205	160	550	630	230	360
LIFE-201	2,00 (3-phase)	216	109	265	370	325	206	325	400	220	205	160	550	630	230	360
LIFE-300	3,00 (1-phase)	216	109	265	370	325	206	325	400	220	205	160	550	630	230	360
LIFE-301	3,00 (3-phase)	216	109	265	370	325	206	325	400	220	205	160	550	630	230	360
