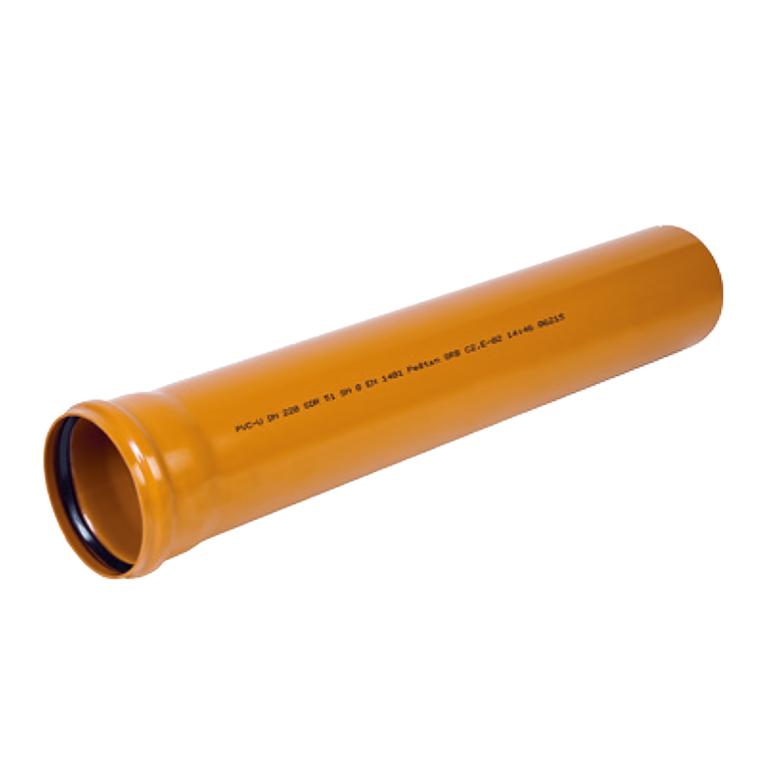

Sewage pipe with O-ring
MODEL:
SDR-41 SN4
The pipes for domestic and street sewerage systems together with the appropriate coupling sleeves are intended to be used for the removal of all kinds of wastewater.
Assembly of the pipeline is extremely easy, pipes are connected to one another with fittings while a complete seal is achieved with the use of rubber bands.
Pipes are resistant to salt water, alcohol, acids, alkalis, sulfates, aggressive gas, and all kinds of detergents. On the other hand, they cannot be used for the transport of water which contains a high percentage of benzene, benzine (petrol), or acetone.
- SRPS EN 1401 – European norm for production of full wall compact PVC pipes.
- SRPS EN 13476 – European norm for production of three-layer PVC pipes.
Specifications
- Very light material.
- Simple and easy way of both transport and manipulation.
- Fast and cheap assembling.
- Pipe connections are resistant to water and other types of fluids.
- They are resistant to corrosion in alkaline, acid, or aggressive environment.
- They are fine electrical insulators, and also resistant to mechanical impact.
- Guaranteed lifetime of more than 50 years.
- Practically no costs of pipeline maintenance.
- Connection with muffs and gaskets made of EPDM or rubber (EN 681).
- SRPS EN 1401.
- SRPS EN 13476.
- DIN19531.

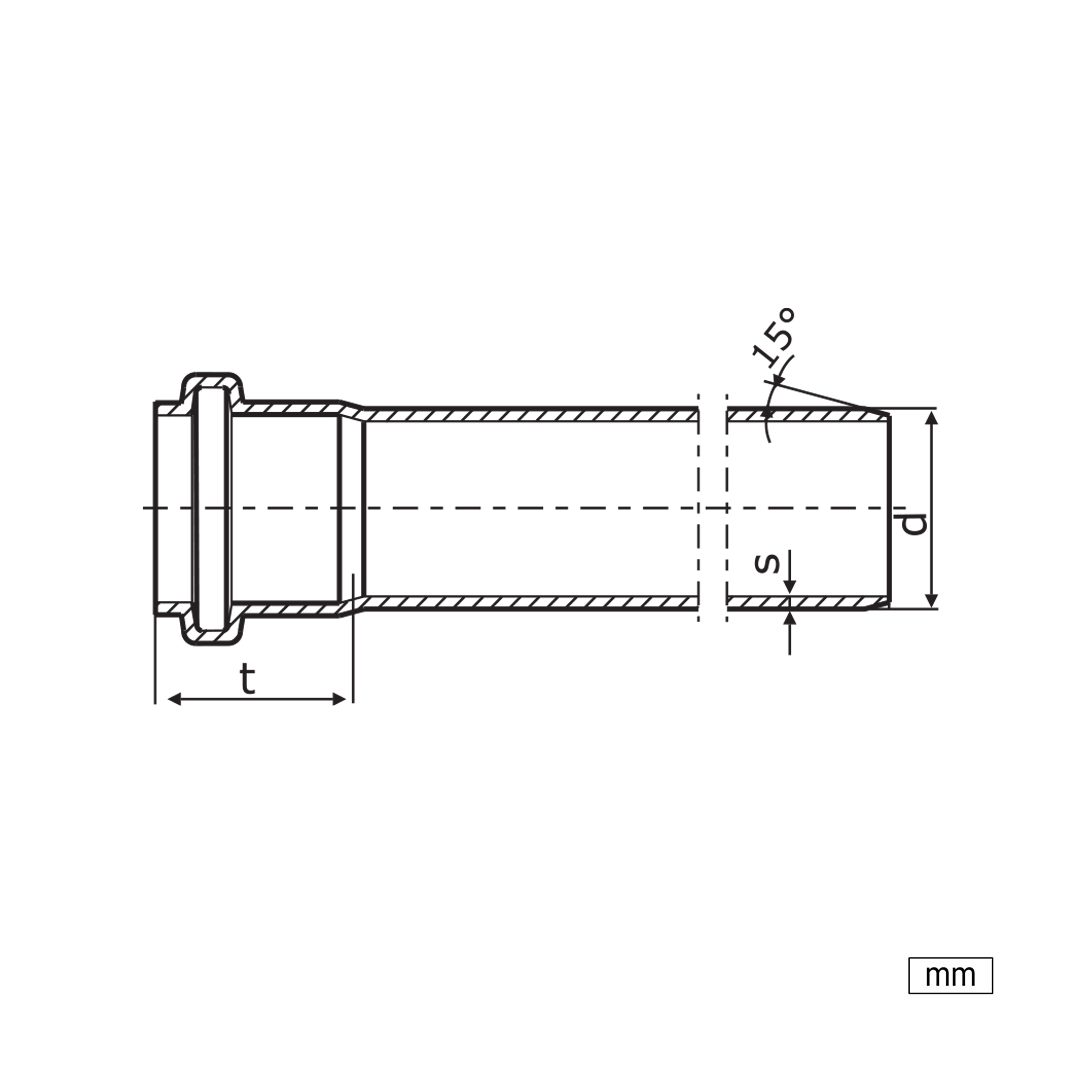

Dimensions & Performances
ZOOM IN
| Code (EN-1401) | Code (EN-13476) | d (Ø) | s | t |
|---|---|---|---|---|
| 20110041005 | 20110041004 | 110 | 3,2 | 61 |
| 20112541005 | 20112541004 | 125 | 3,2 | 72 |
| 20116041005 | 20116041004 | 160 | 4 | 86 |
| 20120041005 | 20120041004 | 200 | 4,9 | 106 |
| 20125041005 | 20125041004 | 250 | 6,2 | 128 |
| 20131541005 | 20131541004 | 315 | 7,7 | 155 |
| 20140041005 | 20140041004 | 400 | 9,8 | 183 |
| 20150041005 | 20150041004 | 500 | 12,3 | 210 |
| 20163041005 | 20163041004 | 630 | – | – |
Catalogue
