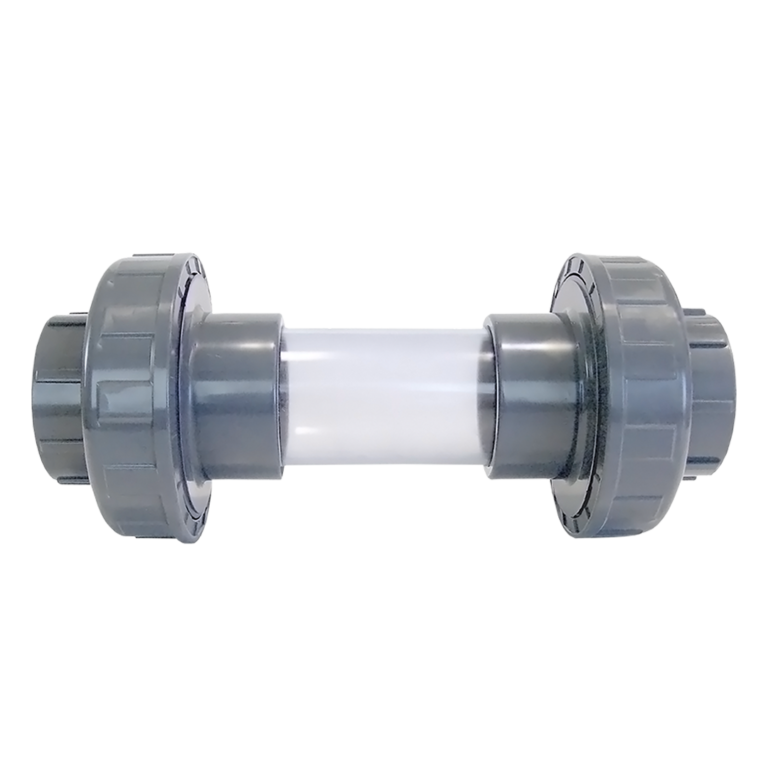

Sight glass with PN-10 unions solvent
MODEL:
7421
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Dimensions & Performances
ZOOM IN

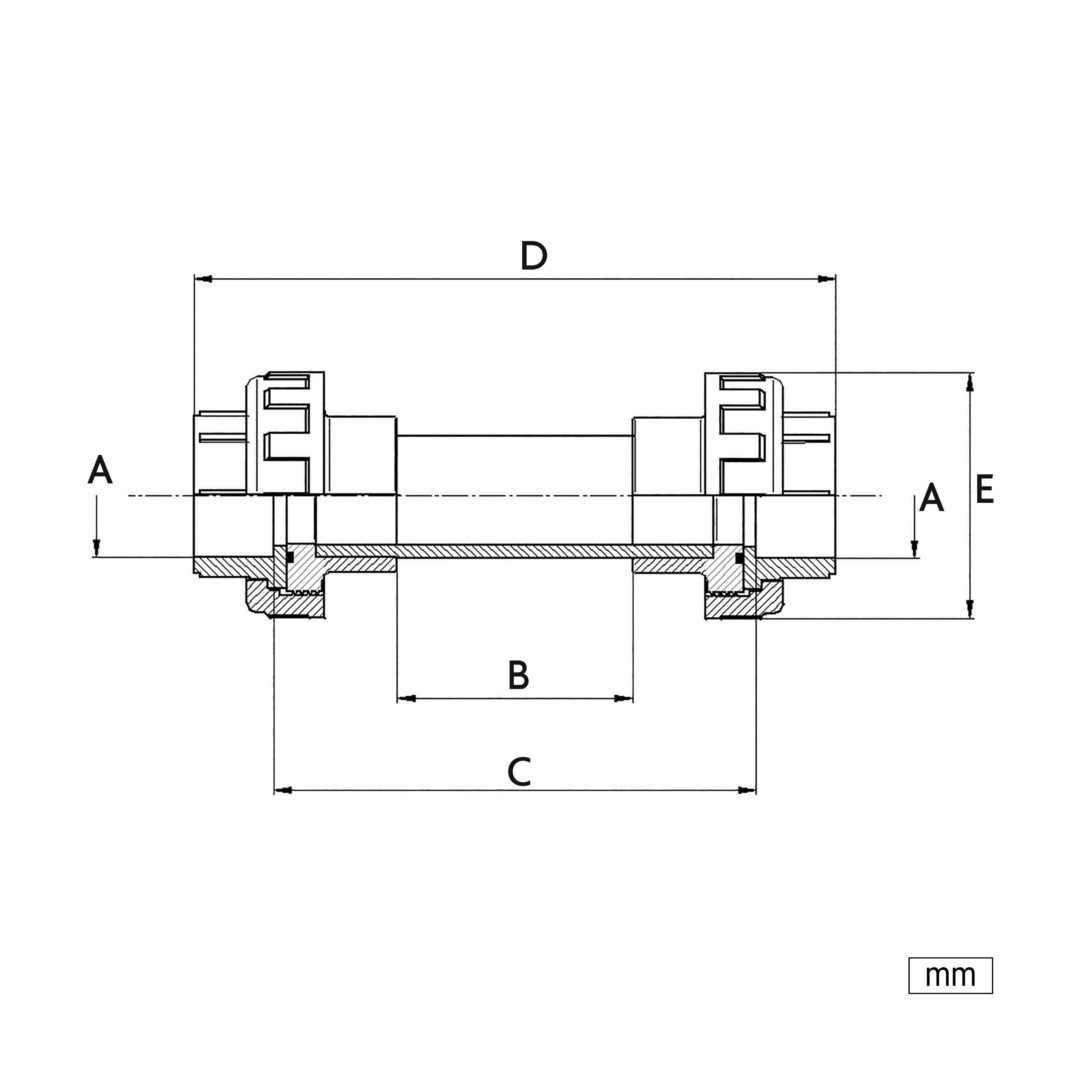

| Code | DN | A | B | C | D | E | Ø |
|---|---|---|---|---|---|---|---|
| 7421016 | 10 | 16 | 70 | 130 | 164 | 49 | 16 |
| 7421020 | 15 | 20 | 70 | 131 | 165 | 49 | 20 |
| 7421025 | 20 | 25 | 70 | 135 | 173 | 57 | 25 |
| 7421032 | 25 | 32 | 70 | 149 | 193 | 67 | 32 |
| 7421040 | 32 | 40 | 70 | 151 | 204 | 81 | 40 |
| 7421050 | 40 | 50 | 70 | 169 | 234 | 98 | 50 |
| 7421063 | 50 | 63 | 70 | 174 | 251 | 112 | 63 |
| 7421075 | 65 | 75 | 110 | 265 | 356 | 154 | 75 |
| 7421090 | 80 | 90 | 105 | 265 | 356 | 154 | 90 |
| 7421110 | 100 | 110 | 100 | 247 | 370 | 178 | 110 |
