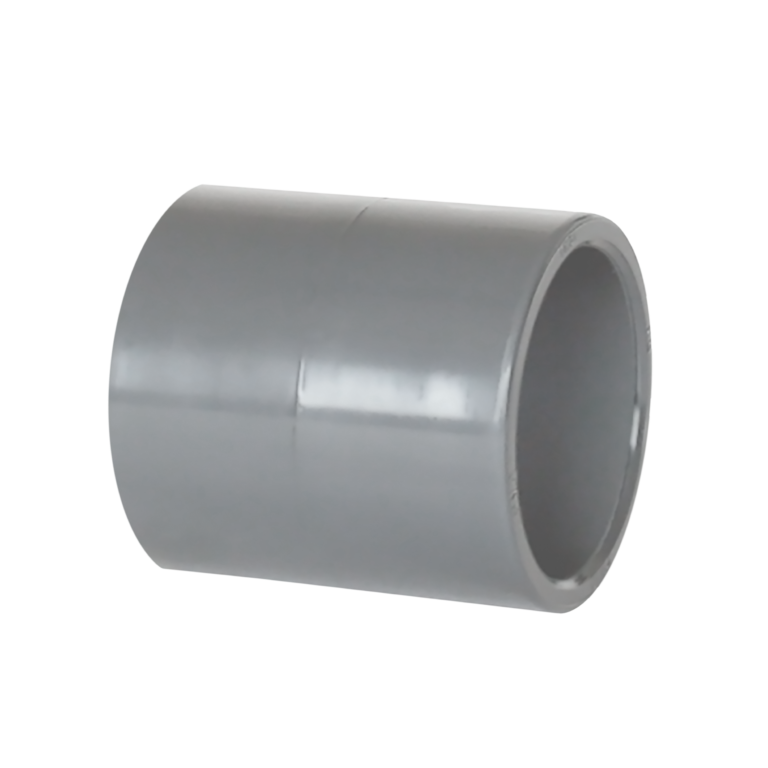

Socket
MODEL:
7105
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

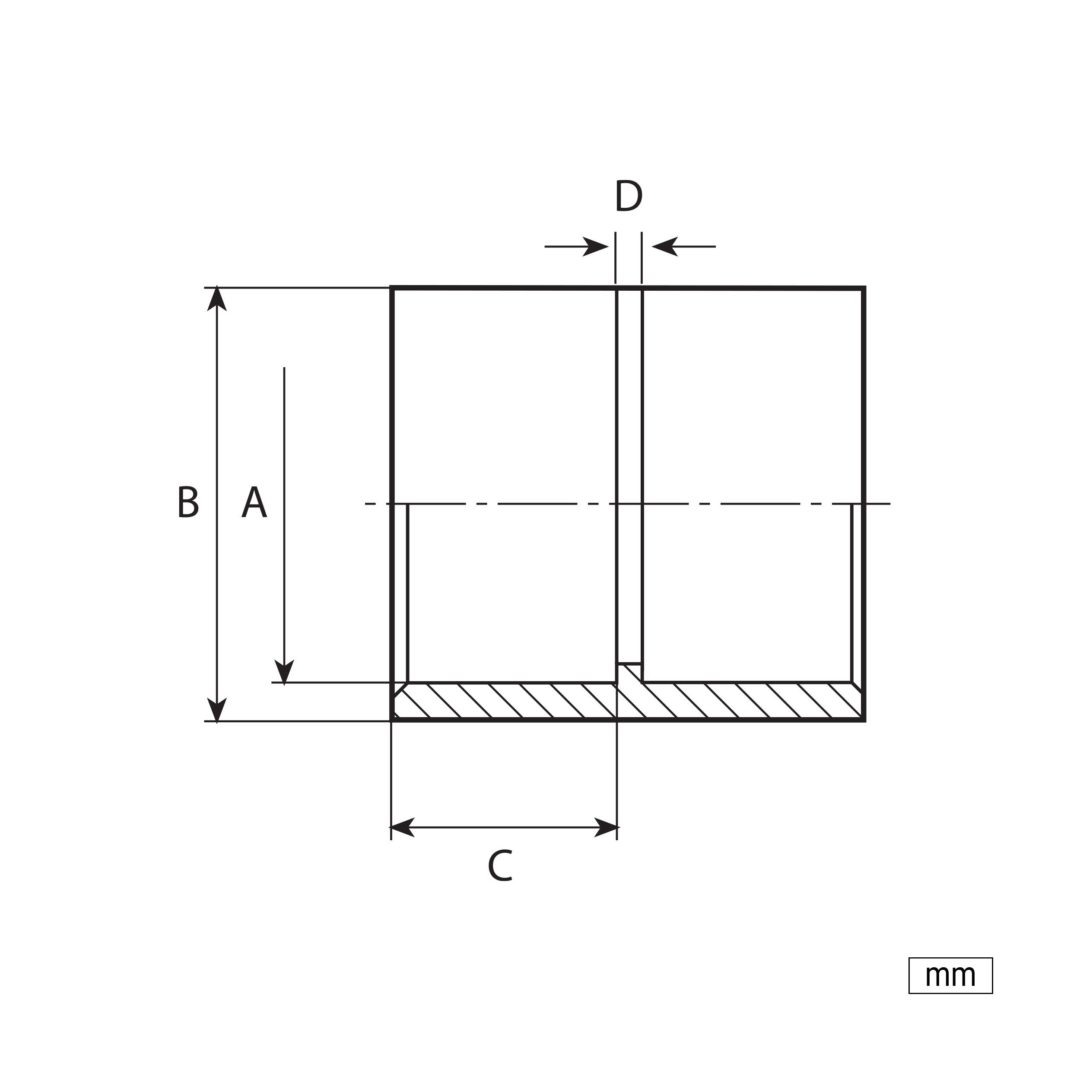

Dimensions & Performances
ZOOM IN
| Κωδικός | DN | A | B | C | D | Ø |
|---|---|---|---|---|---|---|
| 7105016 | 10 | 16 | 27 | 14 | 3 | 16 |
| 7105020 | 15 | 20 | 27 | 16 | 3 | 20 |
| 7105025 | 20 | 25 | 33 | 19 | 3 | 25 |
| 7105032 | 25 | 32 | 41 | 22 | 3 | 32 |
| 7105040 | 32 | 40 | 50 | 26 | 3 | 40 |
| 7105050 | 40 | 50 | 61 | 31 | 3 | 50 |
| 7105063 | 50 | 63 | 75 | 38 | 3 | 63 |
| 7105075 | 65 | 75 | 90 | 44 | 4 | 75 |
| 7105090 | 80 | 90 | 108 | 51 | 5 | 90 |
| 7105110 | 100 | 110 | 131 | 61 | 6 | 110 |
| 7105125 | 110 | 125 | 148 | 69 | 7 | 125 |
| 7105140 | 125 | 140 | 164 | 76 | 9 | 140 |
| 7105160 | 150 | 160 | 180 | 86 | 9 | 160 |
| 7105200 | 175 | 200 | 225 | 106 | 10 | 200 |
| 7105225 | 200 | 225 | 252 | 119 | 10 | 225 |
| 7105250 | 225 | 250 | 280 | 131 | 12 | 250 |
| 7105315 | 300 | 315 | 352 | 164 | 12 | 315 |
| 7105355 | − | − | − | − | − | 355 |
| 7105400 (PN4) | 400 | 400 | 432 | 206 | 12 | 400 |
| 7105500 | − | − | − | − | − | 500 |
Catalogue
