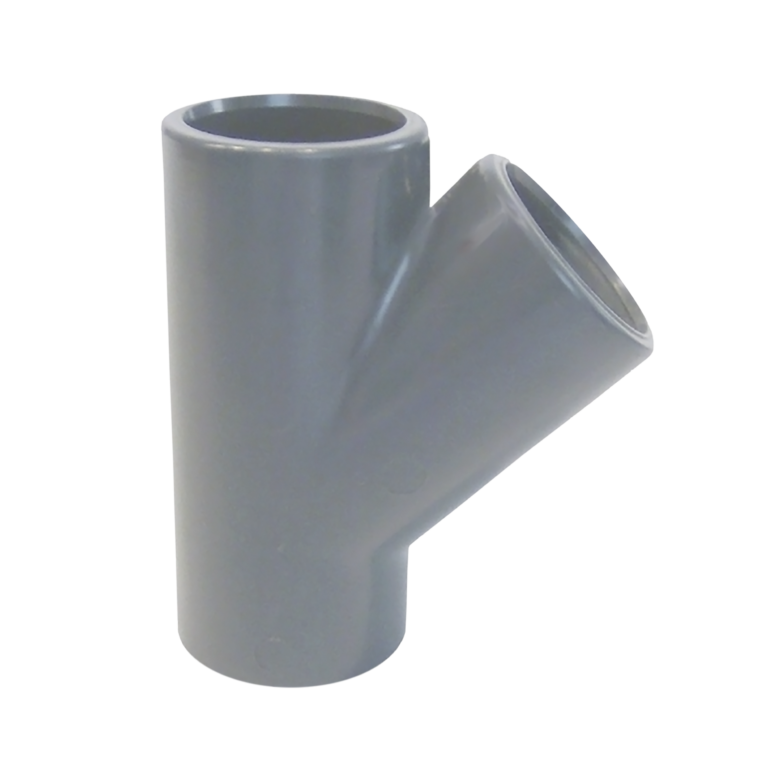

Tee 45° solvent
MODEL:
7111
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

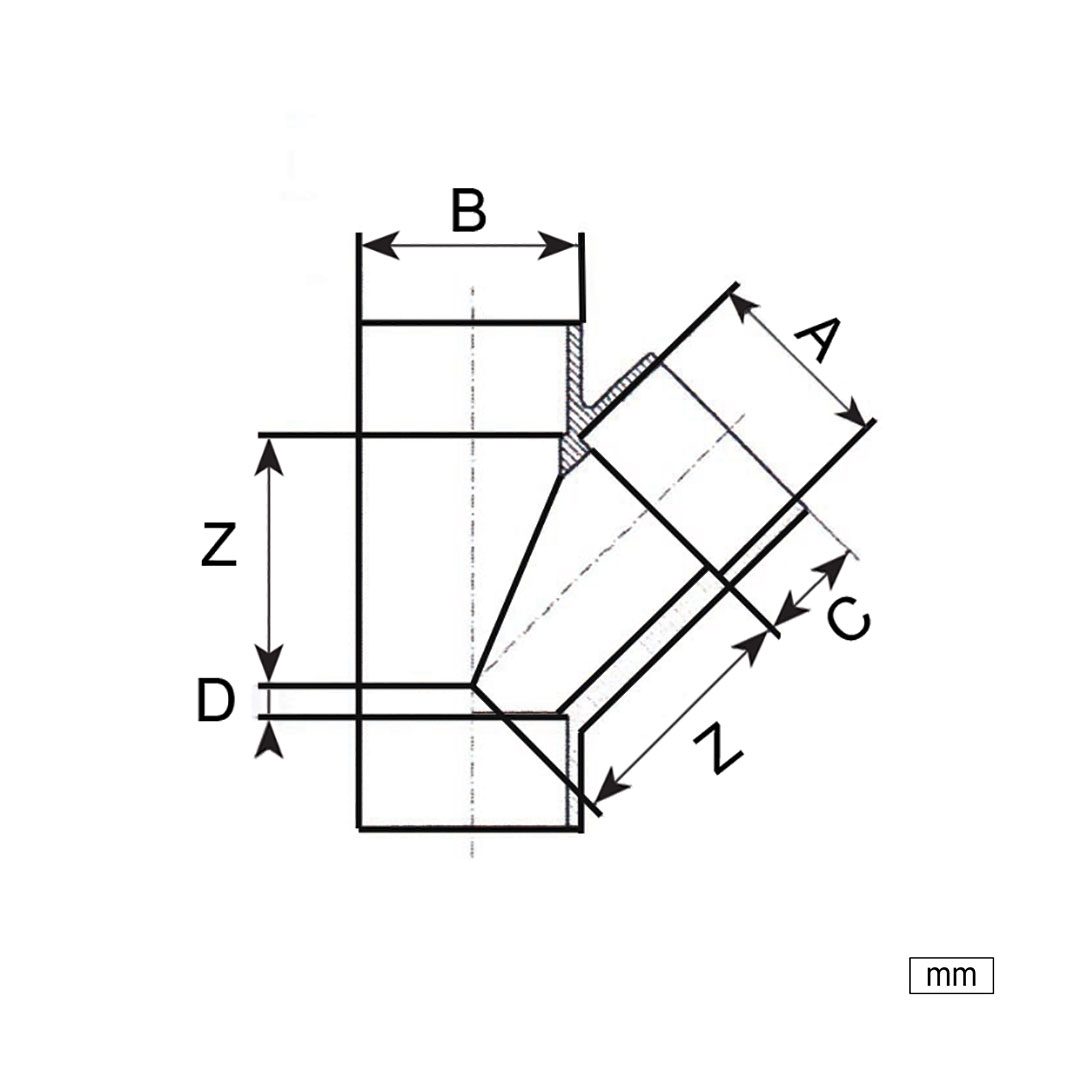

Dimensions & Performances
ZOOM IN
| Code | DN | A | B | C | D | Z | Ø |
|---|---|---|---|---|---|---|---|
| 7111020 | 15 | 20 | 28 | 16 | 7 | 29 | 20 |
| 7111025 | 20 | 25 | 33 | 19 | 8 | 35 | 25 |
| 7111032 | 25 | 32 | 42 | 22 | 9 | 45 | 32 |
| 7111040 | 32 | 40 | 51 | 26 | 10 | 55 | 40 |
| 7111050 (PN10) | 40 | 50 | 61 | 32 | 12 | 68 | 50 |
| 7111063 (PN10) | 50 | 63 | 76 | 38 | 15 | 85 | 63 |
| 7111075 (PN10) | 65 | 75 | 91 | 44 | 18 | 102 | 75 |
| 7111090 (PN10) | 80 | 90 | 107 | 51 | 22 | 122 | 90 |
| 7111110 (PN10) | 100 | 110 | 134 | 61 | 26 | 149 | 110 |
