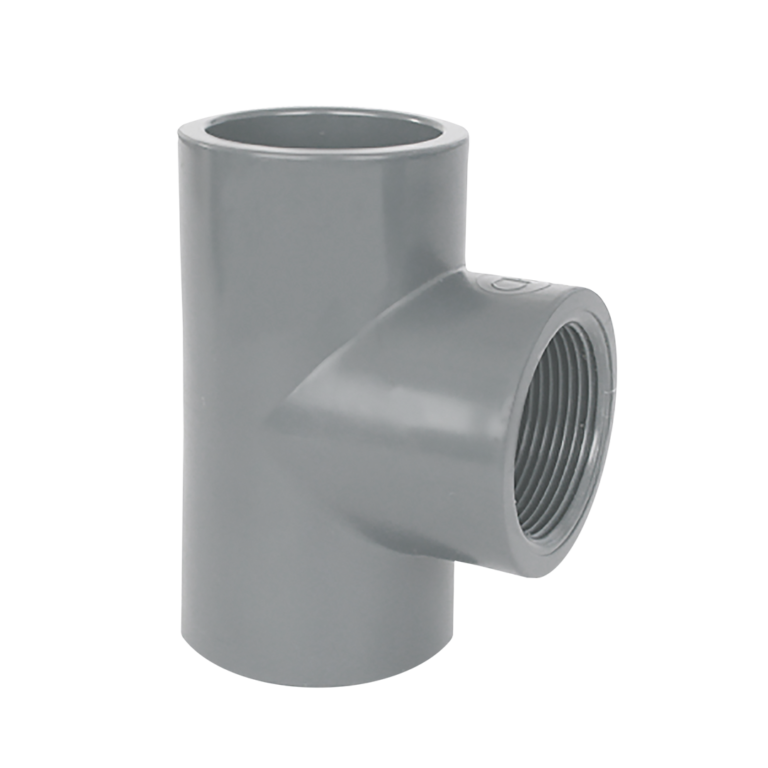

Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
Assembly:

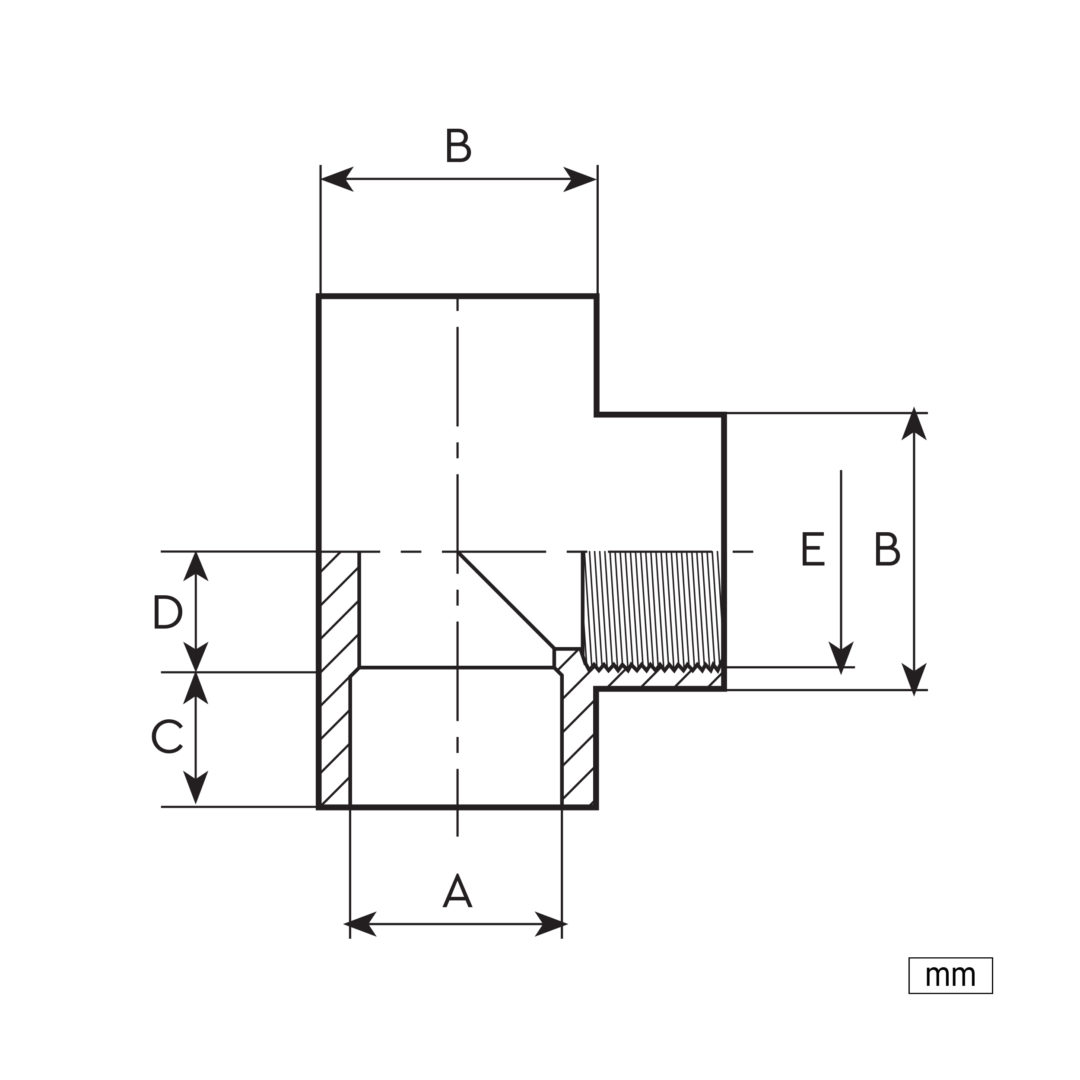

| Code | DN | A | B | C | D | E | Ø |
|---|---|---|---|---|---|---|---|
| 7303016 | 10 | 16 | 22 | 14 | 11 | ⅜” | 16−⅜” |
| 7303020 | 15 | 20 | 25 | 16 | 11 | ½” | 20−½” |
| 7303025 | 20 | 25 | 32 | 19 | 14 | ¾” | 25−¾” |
| 7303032 | 25 | 32 | 40 | 22 | 17 | 1” | 32−1” |
| 7303040 | 32 | 40 | 50 | 26 | 21 | 1¼” | 40−1¼” |
| 7303050 | 40 | 50 | 63 | 31 | 26 | 1½” | 50−1½” |
| 7303063 | 50 | 63 | 75 | 38 | 32 | 2” | 63−2” |
| 7303075 | 65 | 75 | 90 | 44 | 39 | 2½” | 75−2½” |
| 7303090 | 80 | 90 | 110 | 51 | 47 | 3” | 90−3” |
| 7303110 | 100 | 110 | 131 | 61 | 58 | 4” | 110−4” |
