19057

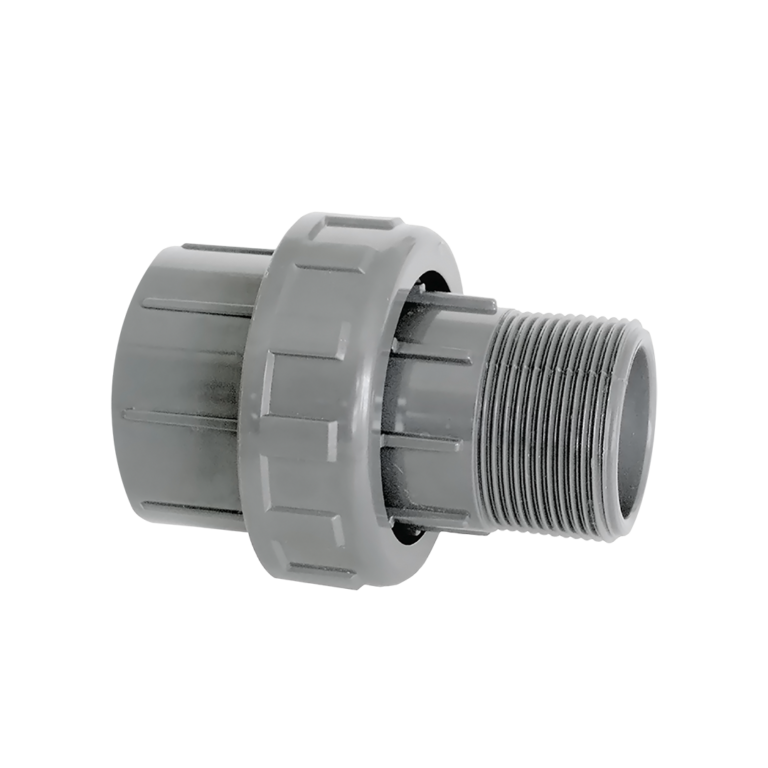

Union female socket/male threaded

MODEL: 7404
MANUFACTURER:

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

  • Cement joint fittings:
    From 16mm to 140mm = PN16.
    From 160mm to 315mm = PN10.
  • Threaded fittings:
    All sizes PN10.

Assembly:

  • The use of PTFE film is recommended for threaded fittings.
  • The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

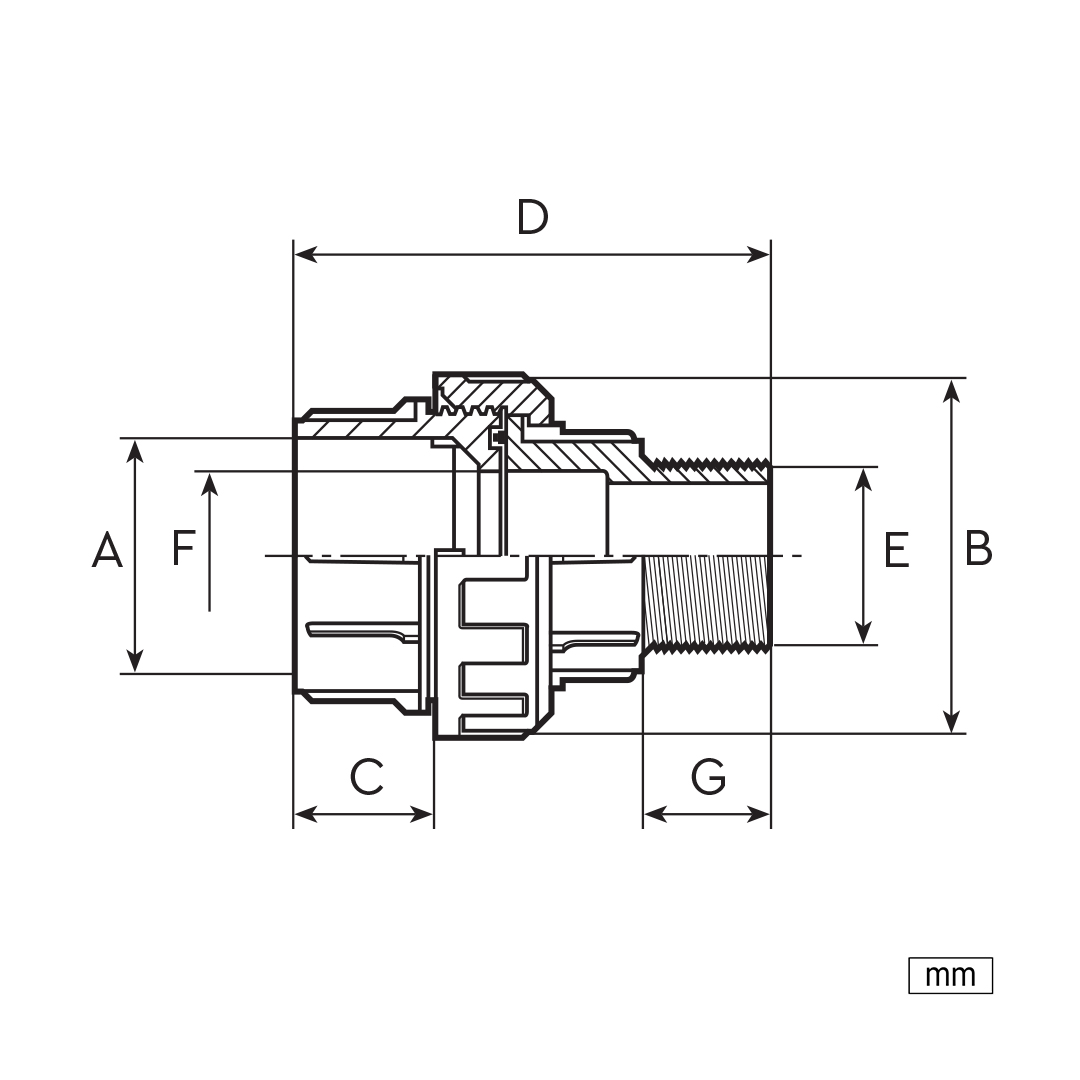

    Dimensions & Performances
    CodeDNABCDEFGØ
    740402015043166414151520−½”
    7404025202553197016201725−¾”
    7404032253257228120252032−1”
    7404040324072268722322140−1¼”
    740405040508131105204128,550−1½”
    740406350639938119255128,563−2”
    740407565751184015230654475−2½”
    740409080901354016033804490−3”
