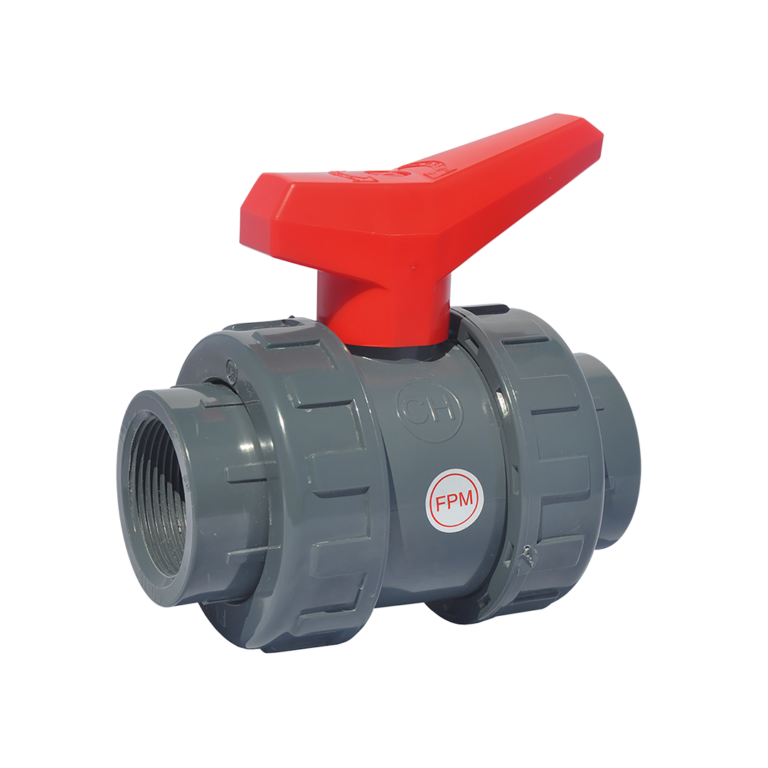

Βall valve BSP female thread FRM, type EXPORT, PN10

Name: Βall valve BSP female thread FRM, type EXPORT, PN10
SKU: 1126
Price: 1.00 EUR
Availability: InStock

MODEL: 1126

MANUFACTURER:

Seats: P.T.F.E. | O−rings: FPM

Material: Unplasticised polyvinyl chloride (PVC-U).

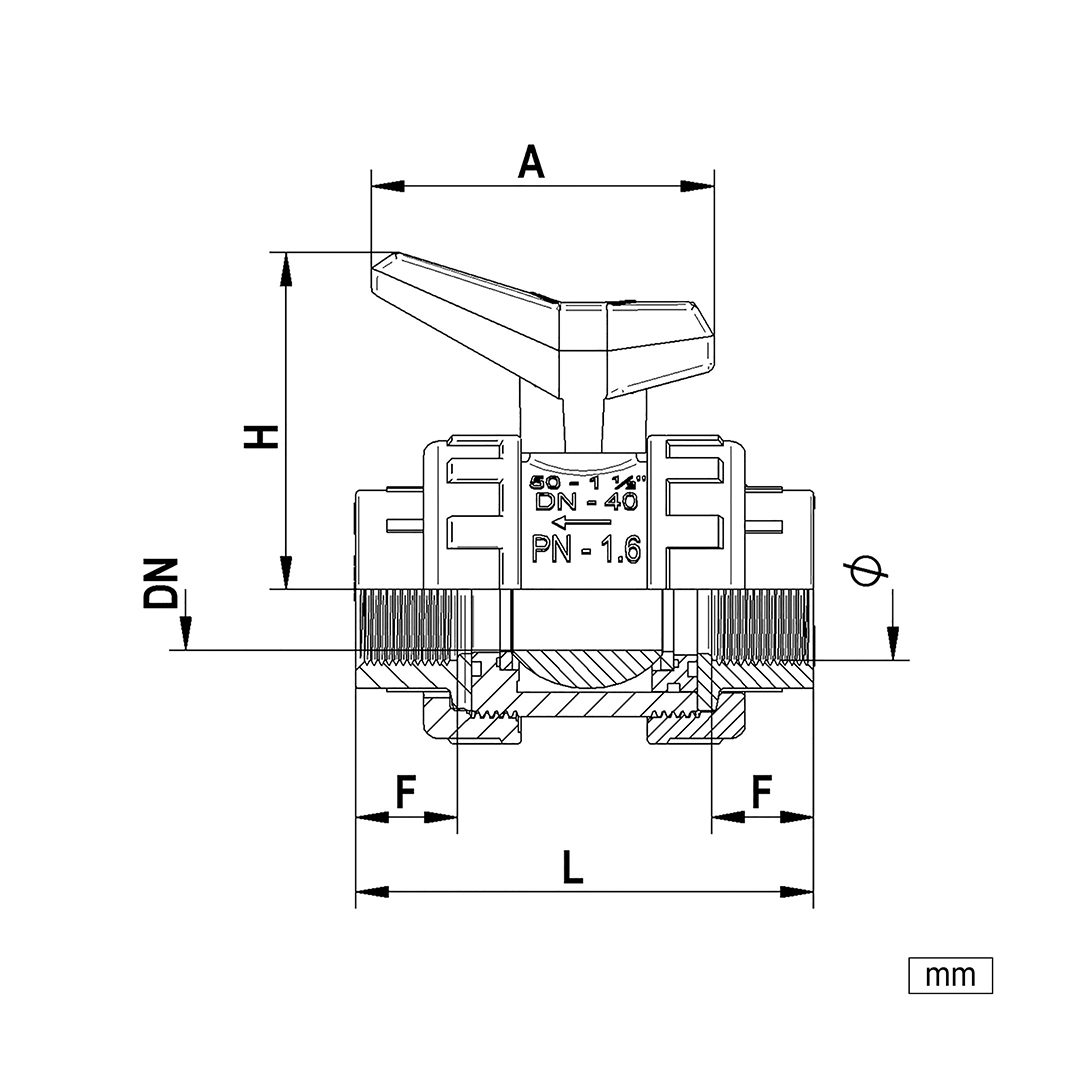

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10.
Threaded fittings:
All sizes PN10.

Assembly:

The use of PTFE film is recommended for threaded fittings.
The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
