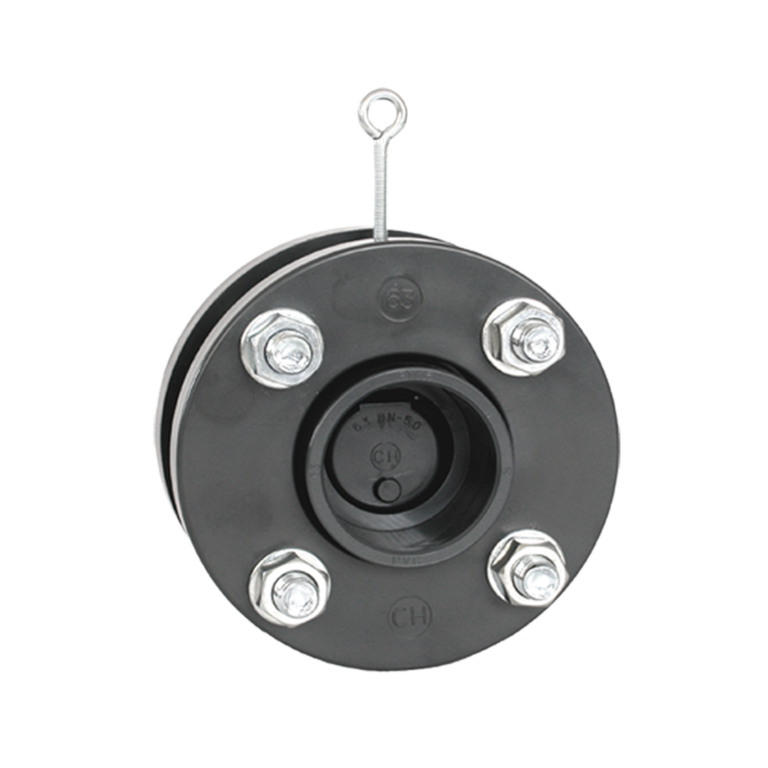

Wafer check valve EPDM seat and joint
MODEL:
2730
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

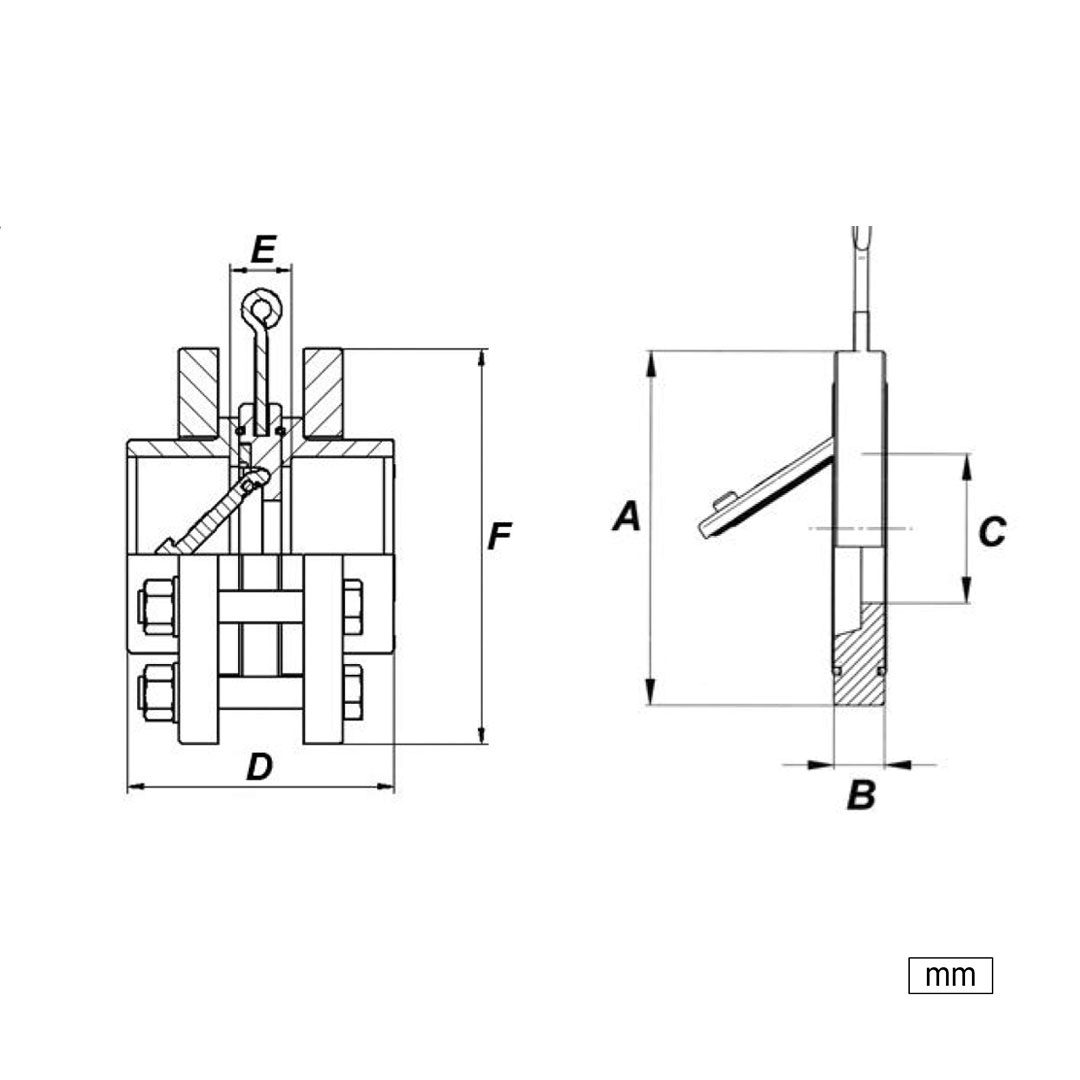

Dimensions & Performances
ZOOM IN
| Code | DN | A | B | C | D | E | F | Ø |
|---|---|---|---|---|---|---|---|---|
| 2730040 | 32 | 85 | 15 | 18 | 90 | 22 | 140 | 40 |
| 2730050 | 40 | 95 | 16 | 22 | 100 | 22 | 150 | 50 |
| 2730063 | 50 | 1 09 | 20 | 32 | 110 | 22 | 165 | 63 |
| 2730075 | 65 | 130 | 20 | 40 | 116 | 28 | 185 | 75 |
| 2730090 | 80 | 144 | 20 | 53 | 134 | 32 | 200 | 90 |
| 2730110 | 100 | 164 | 22 | 70 | 157 | 35 | 220 | 110 |
| 2730125 | 110 | 170 | 24 | 82 | 177 | 39 | 250 | 125 |
| 2730140 | 125 | 192 | 22 | 93 | 188 | 36 | 250 | 140 |
| 2730160 | 150 | 220 | 26 | 113 | 209 | 37 | 285 | 160 |
| 2730200 | 175 | 248 | 27 | 138 | 258 | 50 | 340 | 200 |
| 2730225 | 200 | 276 | 35 | 152 | 292 | 54 | 340 | 225 |
| 2730250 | 225 | 337 | 40 | 170 | 324 | 62 | 399 | 250 |
| 2730280 | 250 | 330 | 40 | 189 | 351 | 61 | 399 | 280 |
| 2730315 | 300 | 380 | 50 | 226 | 389 | 61 | 450 | 315 |
