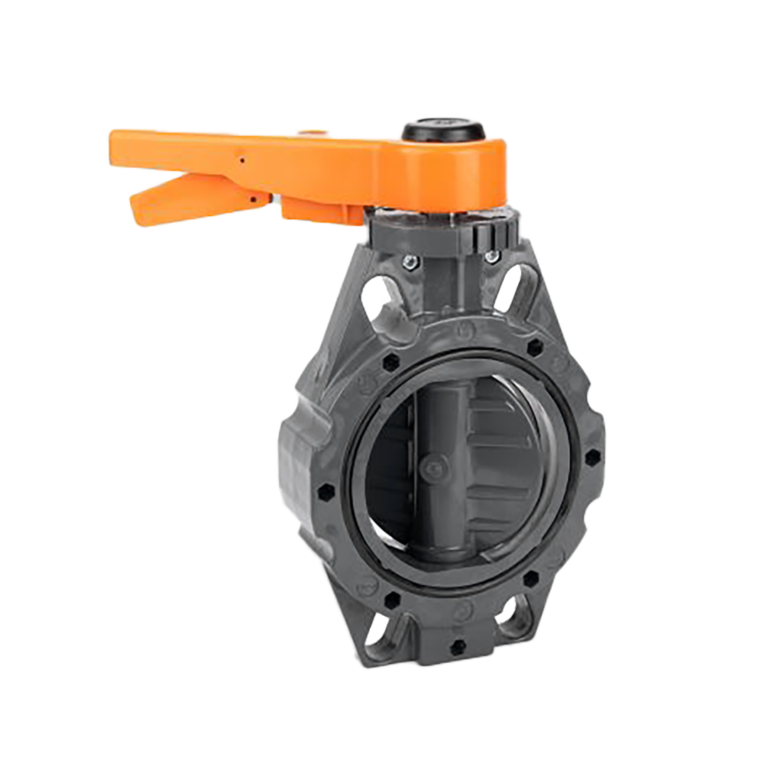

Wafer type butterfly valve

Name: Wafer type butterfly valve
SKU: 2100 & 2160
Price: 1.00 EUR
Availability: InStock

MODEL: 2100 & 2160

MANUFACTURER:

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10.
Threaded fittings:
All sizes PN10.

Assembly:

The use of PTFE film is recommended for threaded fittings.
The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

ZOOM IN

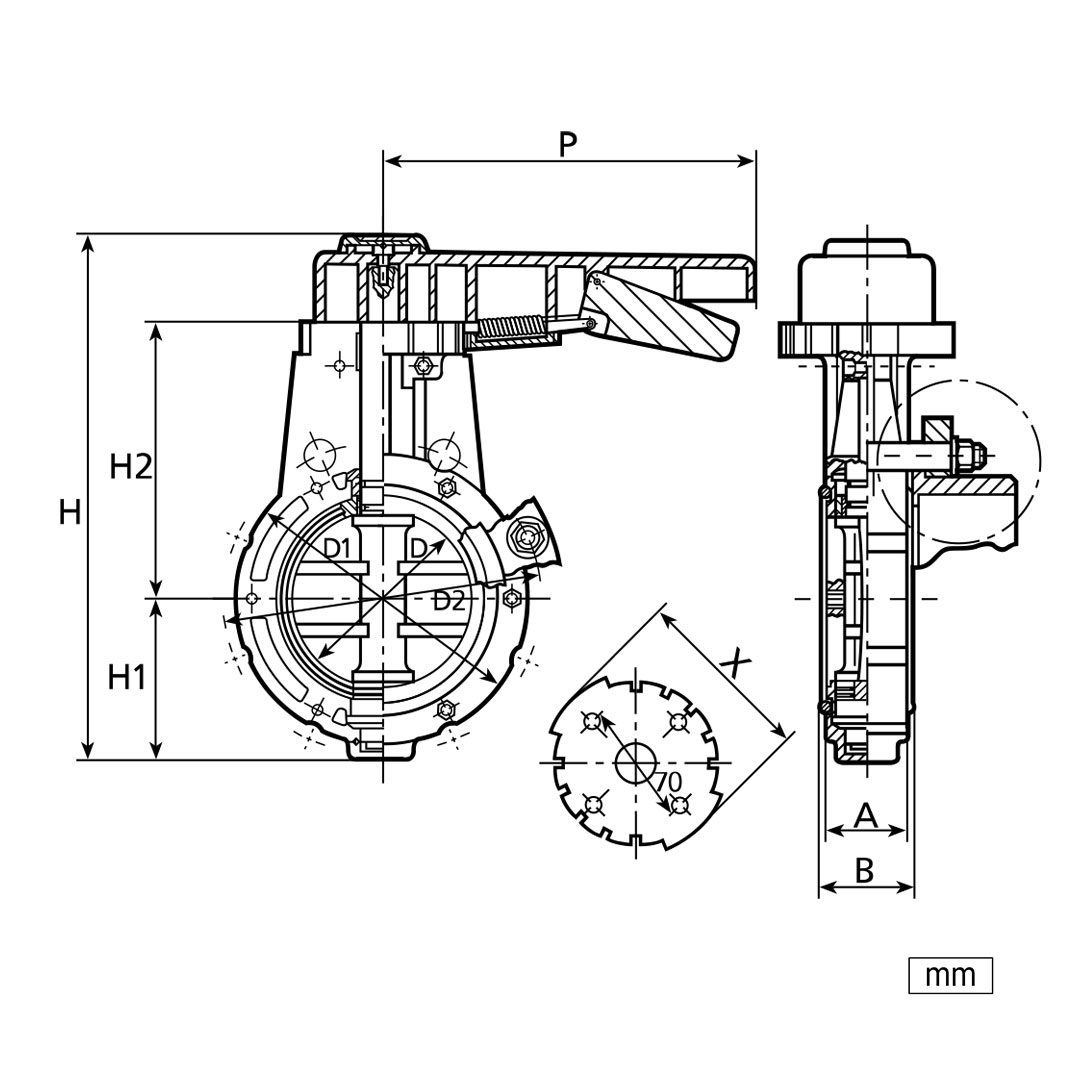

Code	DN	O−rings	PN	Ø	D	D1	D2	H	H1	H2	p	X	A	B
2100001	50	EPDM	10	63−2”	50	98	125	223	68	107	209,5	103	42	44
2100102	65	EPDM	10	75−2½”	65	130	145	239,5	65	126,5	209,5	103	50	52,5
2100103	80	EPDM	10	90−3”	80	144	160	254,5	72	134,5	209,5	103	50	52,5
2100104	100	EPDM	10	110−4”	100	164	180	296	94,5	153,5	209,5	103	51	53
2100105	125	EPDM	10	125/140−5”	125	194	210	323	123	152	209,5	103	64	66,5
2100106	150	EPDM	6	160−6”	150	220	240	345	123	174	299	103	64	67
2100108	200	EPDM	6	200/225-8”	200	290	295	407,7	145	215	299	103	72	74,5
2100010	250	EPDM	6	250−10”	250	325	350	508,5	210	248	450	140	105	109
2700012	300	EPDM	6	315−12”	300	375	400	745	259,5	267	240	112	128,5	132

Code	DN	O−rings	PN	Ø	D	D1	D2	H	H1	H2	p	X	A	B
2160001	50	FPM	10	63−2”	50	98	125	223	68	107	209,5	103	42	44
2160002	65	FPM	10	75−2½”	65	130	145	239,5	65	126,5	209,5	103	50	52,5
2160003	80	FPM	10	90−3”	80	144	160	254,5	72	134,5	209,5	103	50	52,5
2160004	100	FPM	10	110−4”	100	164	180	296	94,5	153,5	209,5	103	51	53
2160105	125	FPM	10	125/140-5”	125	194	210	323	123	152	209,5	103	64	66,5
2160006	150	FPM	6	160−6”	150	220	240	345	123	174	299	103	64	67
2160008	200	FPM	6	200/225-8”	200	290	295	407,7	145	215	299	103	72	74,5
2160010	250	FPM	6	250−10”	250	325	350	508,5	210	248	450	140	105	109
2160012	300	FPM	6	315−12”	300	375	400	745	259,5	267	240	112	128,5	132
