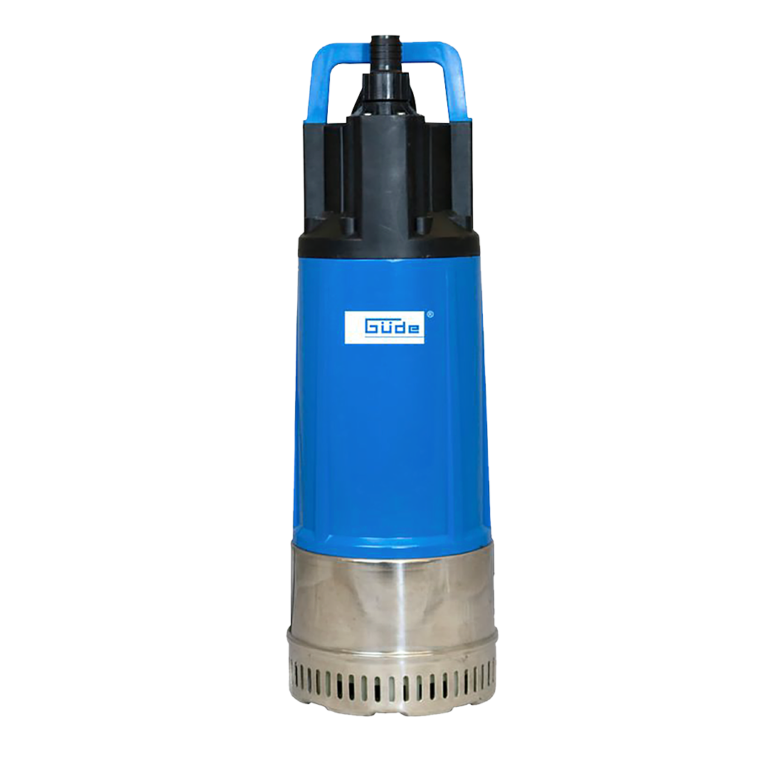

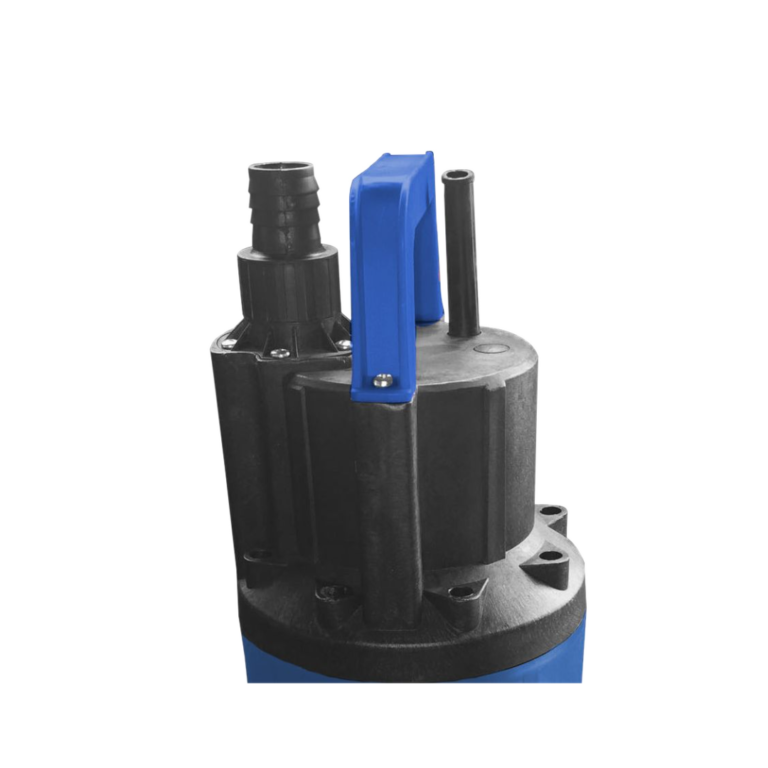

Multi-stage submersible pump with pressure switch
MODEL:
GDT 1200 I
MANUFACTURER:
A submersible pump, multistage, with pressure switch and 15m nylon rope.
Integrated electronic pressure switch with dry run protection.
Ideal for watering the garden, as it has an integrated electronic pressure switch with dry-running protection.
Specifications
- Pump body: Stainless steel AISI-304 + ABS plastic.
- Impeller material: 4 x Noryl.
- Moter head: Copper.
- Power: 1200W.
- Pump diameter: Ø 170mm.
- Max flow: 6.000Lt/h.
- Max immersion depth: 12m.
- Solid material passage: 1mm.
- Outlet diameter: 1″.
- Voltage: 230V/50Hz.
- Protection: IPX8.
- Dimensions (WxHxD): 170 x 170 x 515mm.
- Cable length 15m.
- Control panel with pump protection.
- Usage: pure water.
Dimensions & Performances
ZOOM IN

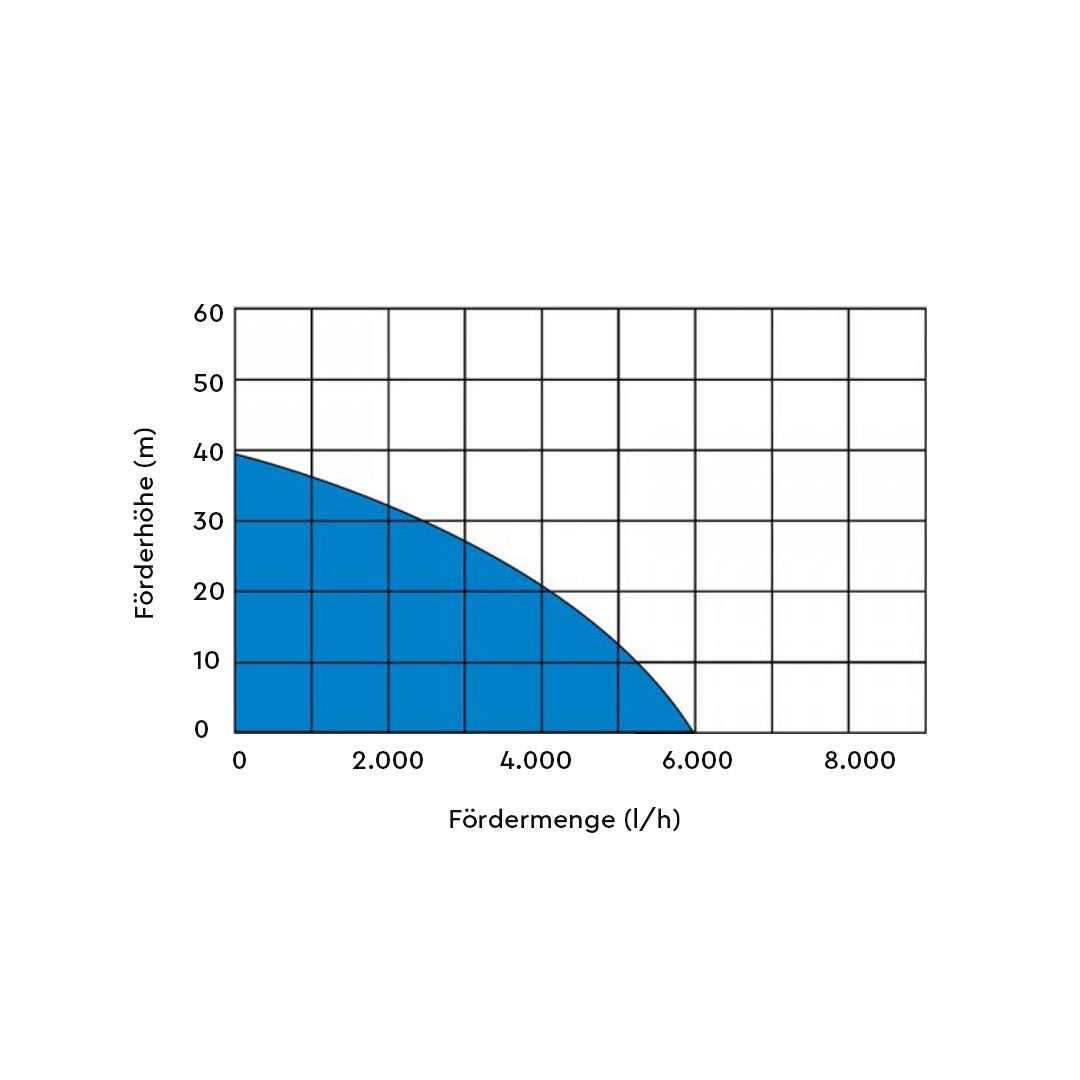

Performance curve
